| Item | Part No. | Part Name | Qty | Serial No. |

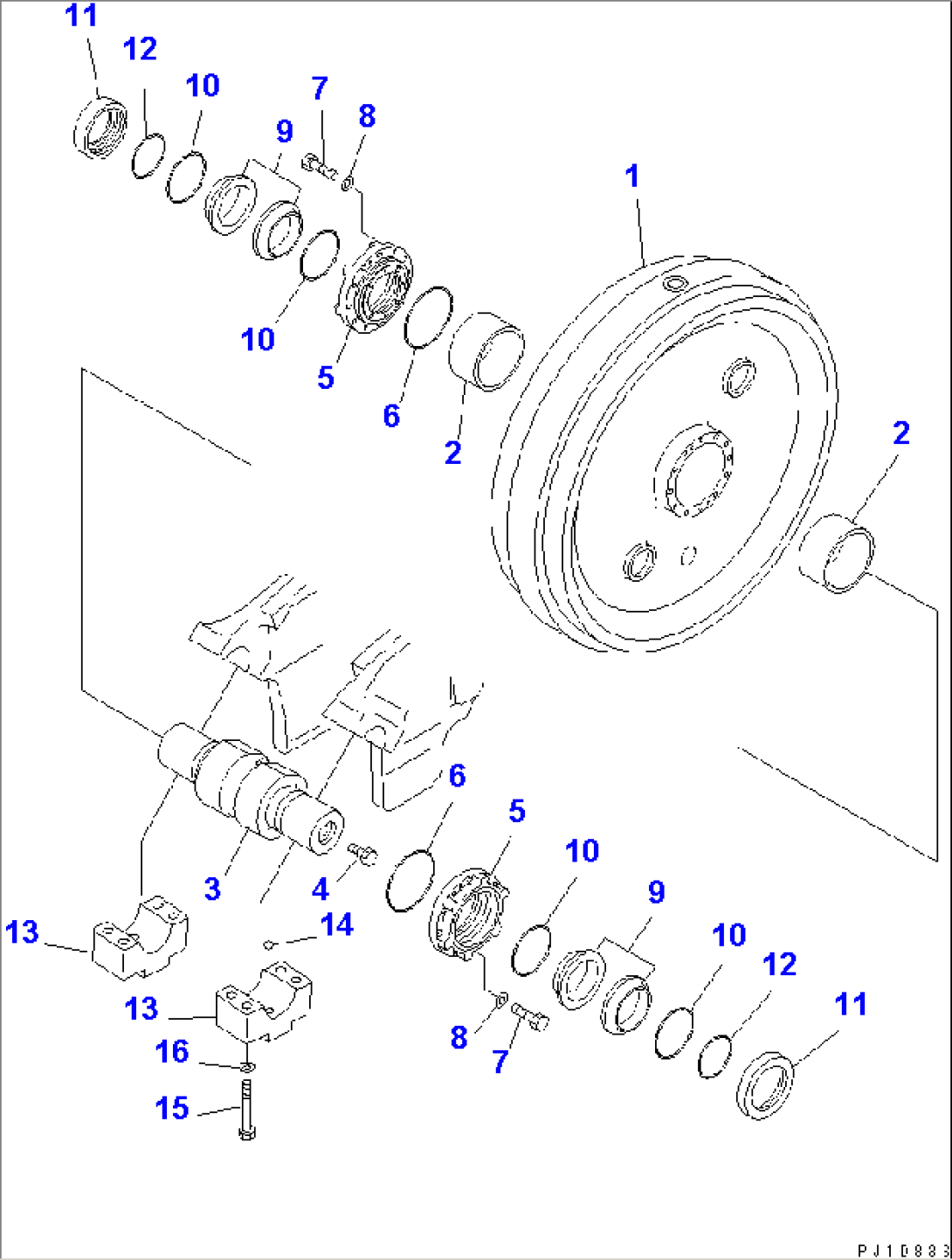

| 17M-30-00241 | FRONT IDLER ASS'Y | 10001- | ||
| 1 | 17M-30-28110 | IDLER,FRONT | 10001- | |
| 2 | 195-30-33140 | BUSHING | 10001- | |
| 3 | 195-30-33130 | SHAFT | 10001- | |
| 4 | 07052-31624 | PLUG | 10001- | |
| 5 | 195-30-33202 | RETAINER ASS'Y | 10205- | |
| 5 | 195-30-33201 | RETAINER ASS'Y | 10001-10204 | |
| 6 | 195-30-33230 | O-RING | 10001- | |
| 7 | 01010-51240 | BOLT | 10001- | |
| 8 | 01643-31232 | WASHER | 10001- | |
| 205-30-00160 | FLOATING SEAL ASS'Y | 10001- | ||
| 9 | \6\ | RING | 10001- | |
| 10 | \6\ | O-RING | 10001- | |
| 11 | 195-30-33180 | RING | 10001- | |
| 12 | 07000-42095 | O-RING | 10001- | |
| 13 | 17M-30-26161 | CAP | 10001- | |
| 14 | 04260-01905 | BALL | 10001- | |
| 15 | 01011-62725 | BOLT | 10001- | |
| 16 | 01643-32780 | WASHER | 10001- |
