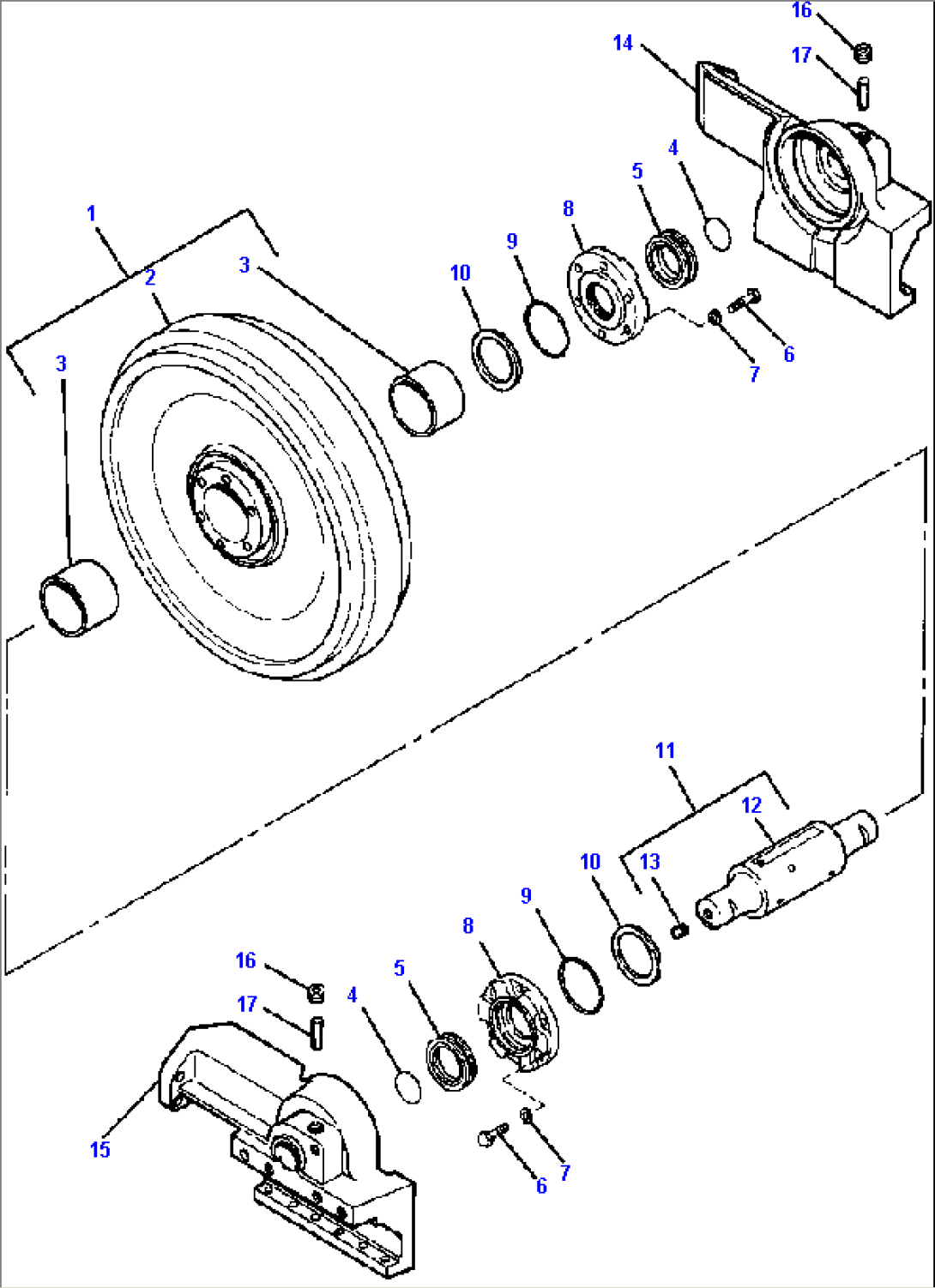

| Item | Part No. | Part Name | Qty | Serial No. |
| 1200 036 H91 | IDLER ASSEMBLY, TRACK FRONT | |||
| 1 | 636 344 C92 | IDLER ASSEMBLY, FRONT | ||
| 2 | (NSS) | IDLER, FRONT | ||
| 3 | 345 817 R3 | BUSHING, IDLER | ||
| 4 | 22 408 R1 | O-RING | ||
| 5 | 1208 549 H91 | KIT, SEAL | ||
| 6 | 24 861 R1 | BOLT, MOUNTING | ||
| 7 | 25 536 R1 | WASHER, FLAT | ||
| 8 | 345 814 R2 | RETAINER, SEAL | ||
| 9 | 610 412 C1 | O-RING | ||
| 10 | 624 175 C2 | WASHER, THRUST | ||
| 11 | 1200 032 H91 | SHAFT ASSEMBLY, IDLER | ||
| 12 | (NSS) | SHAFT, IDLER | ||
| 13 | 444 660 | PLUG, PORT | ||
| 14 | 1200 034 H1 | SUPPORT, IDLER - LEFT | ||
| 15 | 1200 035 H1 | SUPPORT, IDLER - RIGHT | ||
| 16 | 435 377 | SCREW, SET | ||
| 17 | 662 545 C1 | PIN, TAPERED LOCK |
