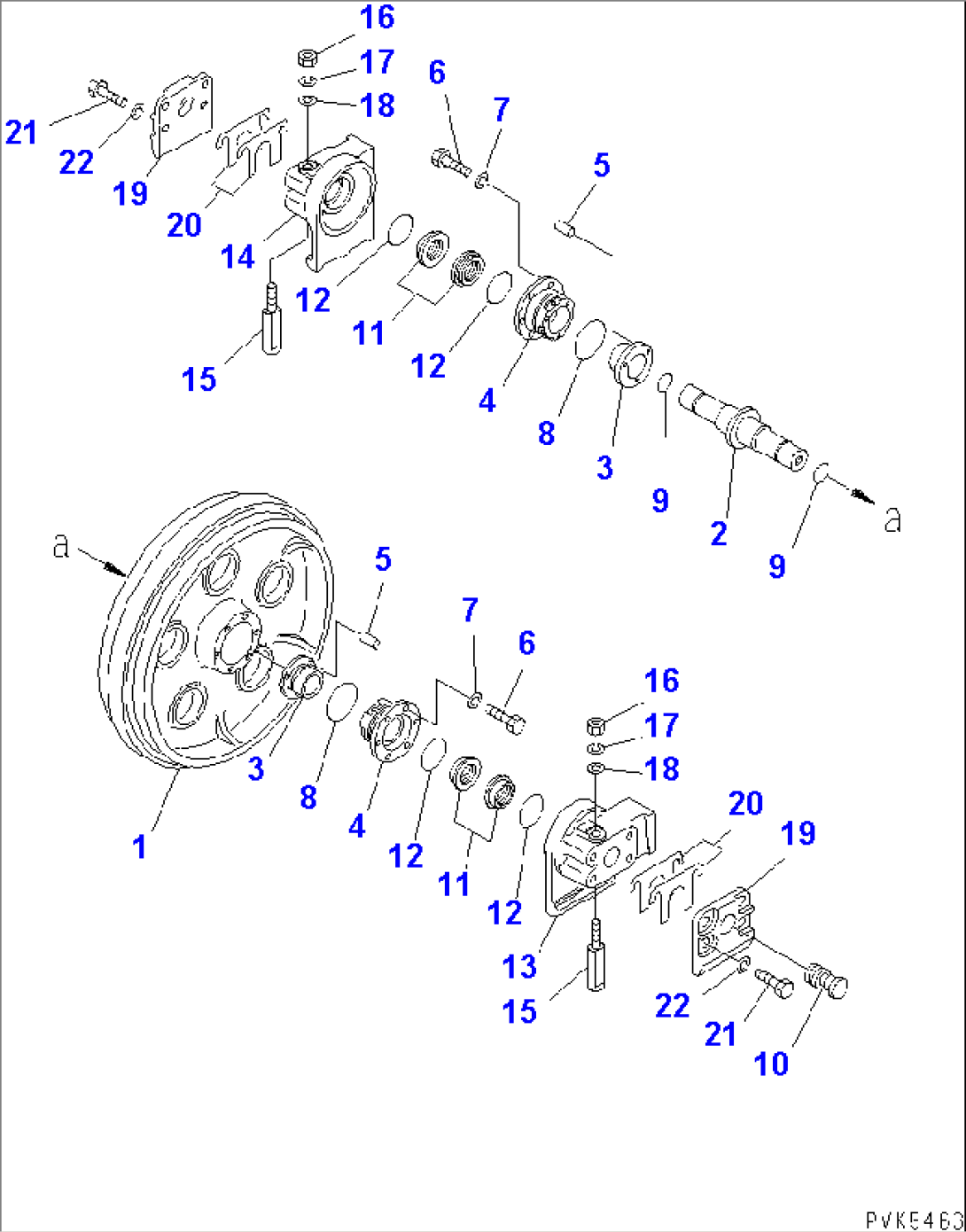

| Item | Part No. | Part Name | Qty | Serial No. |
| 10G-30-00030 | IDLER ASS'Y,R.H. | 62454-62538 | ||
| 1 | 103-30-24260 | IDLER | 62454-62538 | |
| 2 | 101-30-11141 | SHAFT | 62454-62538 | |
| 201-30-00030 | BUSHING ASS'Y | 62454-62538 | ||
| 3 | 100-30-15120 | BUSHING | 62454-@ | |
| 4 | \6\ | BUSHING | 62454-62538 | |
| 5 | 100-30-13150 | PIN,DOWEL | 62454-62538 | |
| 6 | 01010-80820 | BOLT | 62454-62538 | |
| 7 | 01602-20825 | WASHER,SPRING | 62454-62538 | |
| 8 | 07000-03062 | O-RING | 62454-62538 | |
| 9 | 07000-03032 | O-RING | 62454-62538 | |
| 10 | 07052-31217 | PLUG | 62454-@ | |
| 110-30-00085 | FLOATING SEAL ASS'Y | 62454-62538 | ||
| 11 | \6\ | RING,SEAL | 62454-62538 | |
| 12 | \6\ | O-RING | 62454-62538 | |
| 13 | 10G-30-29170 | SUPPORT,OUTER | 62454-62538 | |
| 14 | 10G-30-29180 | SUPPORT,INNER | 62454-62538 | |
| 15 | 103-30-23140 | BOLT | 62454-@ | |
| 16 | 01582-11008 | NUT | 62454-@ | |
| 17 | 01602-21030 | WASHER,SPRING | 62454-@ | |
| 18 | 01643-31032 | WASHER | 62454-@ | |
| 19 | 101-30-11540 | COVER | 62454-@ | |
| 20 | 101-30-11550 | SHIM¤ 1.0MM | 62454-@ | |
| 21 | 01010-81035 | BOLT | 62454-@ | |
| 22 | 01602-21030 | WASHER,SPRING | 62454-62538 |
