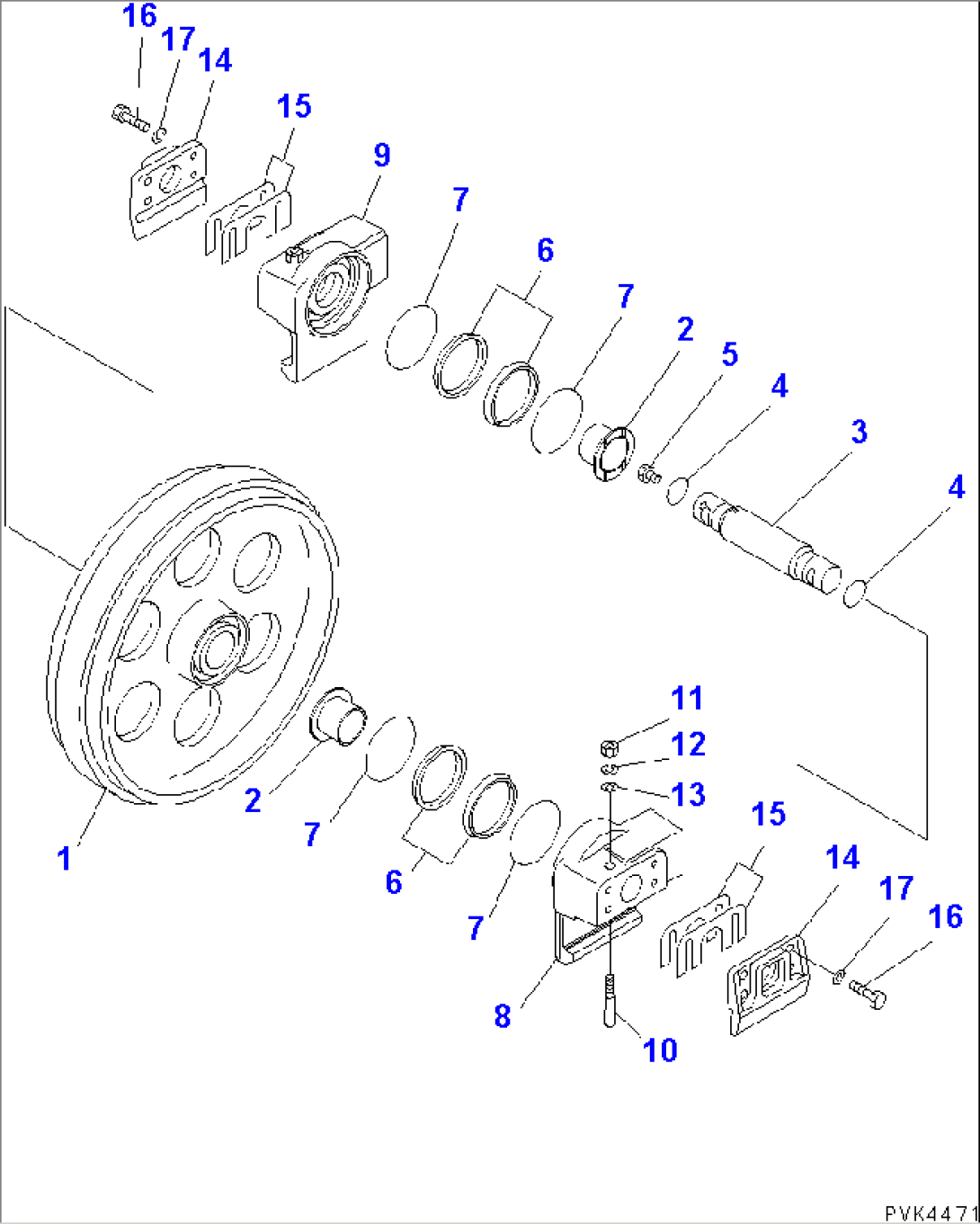

| Item | Part No. | Part Name | Qty | Serial No. |
| 113-30-00161 | IDLER ASS'Y | 42852- | ||
| 113-30-00160 | IDLER ASS'Y | 42714-42851 | ||
| 1 | 113-30-38211 | IDLER | 42714- | |
| 2 | 113-30-38270 | BUSHING | 42714- | |
| 3 | 113-30-38220 | SHAFT | 42714- | |
| 4 | 07000-E3040 | O-RING | 42714- | |
| 5 | 07052-31217 | PLUG | 42714- | |
| 208-30-00880 | SEAL RING ASS'Y | 42909- | ||
| \1\20Y-30-00350 | FLOATING SEAL ASS'Y | 42714-42908 | ||
| 6 | \6\ | RING,SEAL | 42714- | |
| 7 | \6\ | O-RING | 42714- | |
| 8 | 113-30-38230 | SUPPORT,L.H. | 42714- | |
| 9 | 113-30-38240 | SUPPORT,R.H. | 42714- | |
| 10 | 110-30-12170 | BOLT | 42714- | |
| 11 | 01582-11210 | NUT | 42001- | |
| 12 | 01602-21236 | WASHER,SPRING | 42001- | |
| 13 | 01642-21216 | WASHER | 42001- | |
| 14 | 113-30-23110 | COVER | 42001- | |
| 15 | 113-30-23120 | SHIM¤ 1.0MM | 42001- | |
| 16 | 01010-51240 | BOLT | 42001- | |
| 17 | 01643-51232 | WASHER,SPRING | 42714- |
