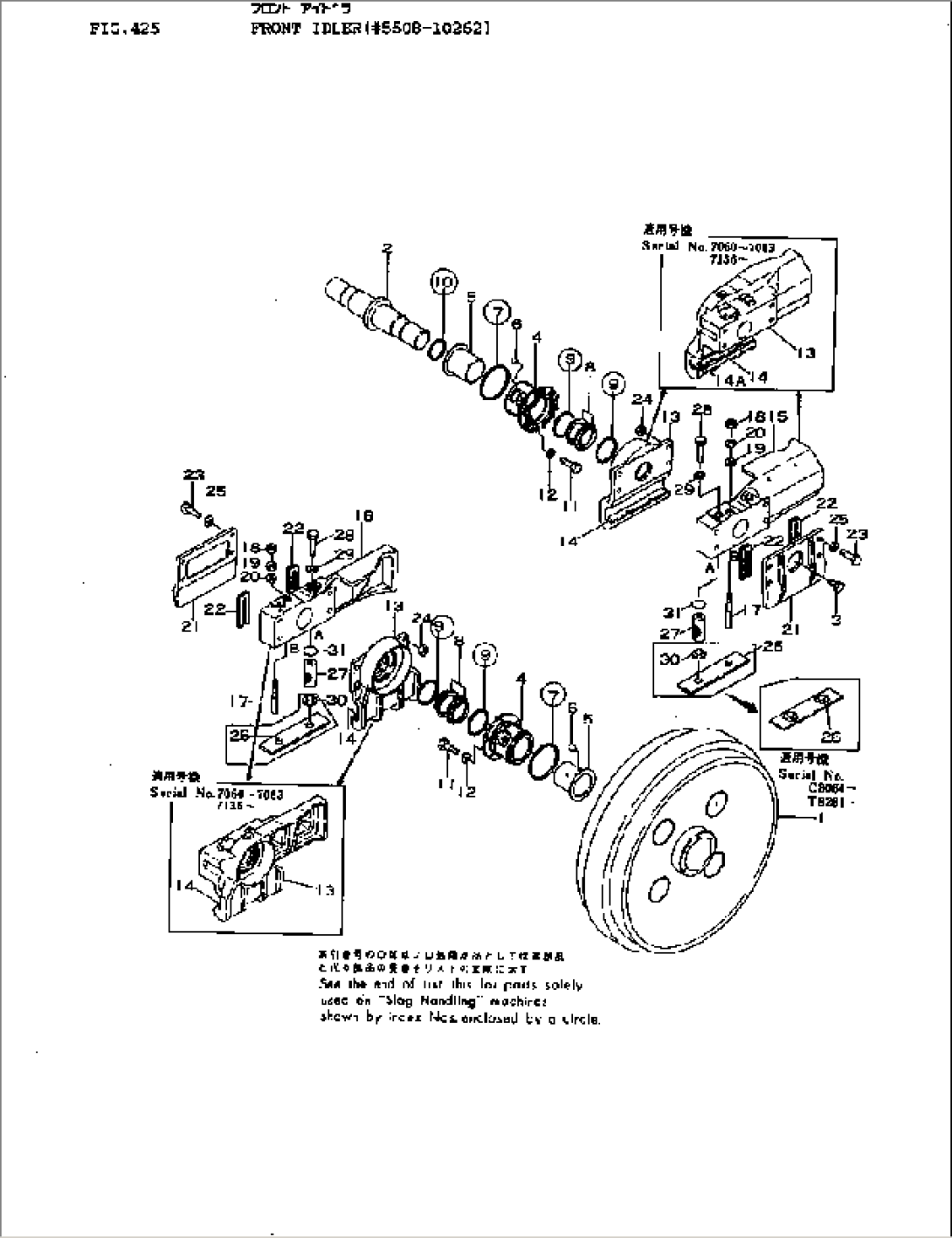

| Item | Part No. | Part Name | Qty | Serial No. |
| 175-30-00459 | FRONT IDLER ASS'Y | 8651-10262 | ||
| 175-30-00458 | FRONT IDLER ASS'Y | 7190-8650 | ||
| 175-30-00457 | FRONT IDLER ASS'Y | 7136-7189 | ||
| 175-30-00456 | FRONT IDLER ASS'Y | 7084-7135 | ||
| 175-30-00457 | FRONT IDLER ASS'Y | 7060-7083 | ||
| 175-30-00456 | FRONT IDLER ASS'Y | 6843-7059 | ||
| 175-30-00455 | FRONT IDLER ASS'Y | 6543-6842 | ||
| 175-30-00454 | FRONT IDLER ASS'Y | 6261-6542 | ||
| 175-30-00453 | FRONT IDLER ASS'Y | 6091-6260 | ||
| 175-30-00452 | FRONT IDLER ASS'Y | 5957-6090 | ||
| 175-30-00451 | FRONT IDLER ASS'Y | 5833-5956 | ||
| 175-30-00450 | FRONT IDLER ASS'Y | 5508-5832 | ||
| 1 | 175-30-23114 | IDLER | 10263-@ | |
| \0\175-30-23113 | IDLER | 8651-10262 | ||
| \0\175-30-23112 | IDLER | 5833-8650 | ||
| \0\175-30-23111 | IDLER | 5508-5832 | ||
| 2 | 175-30-23121 | SHAFT | 7186-@ | |
| 175-30-23120 | SHAFT | 7084-7185 | ||
| 175-30-23121 | SHAFT | 7060-7083 | ||
| 175-30-23120 | SHAFT | 5508-7059 | ||
| 3 | 07052-11624 | PLUG | 6091-@ | |
| 07052-01624 | PLUG | 5508-6090 | ||
| 175-30-36108 | BUSHING ASS'Y | 8651-@ | ||
| \0\175-30-36106 | BUSHING ASS'Y | 6843-8650 | ||
| \0\175-30-36105 | BUSHING ASS'Y | 6543-6842 | ||
| \0\175-30-36103 | BUSHING ASS'Y | 5957-6542 | ||
| \3\175-30-36100 | BUSHING ASS'Y | 5508-5956 | ||
| (175-30-36108{175-30-23113)} | ||||
| 4 | \6\ | BUSHING | 8651-@ | |
| \6\ | BUSHING | 6843-8159 | ||
| \6\ | BUSHING | 6543-6842 | ||
| \6\ | BUSHING | 5957-6542 | ||
| \6\ | BUSHING | 5508-5956 | ||
| 5 | \6\ | BUSHING | 6843-@ | |
| \6\ | BUSHING | 6543-6842 | ||
| \6\ | BUSHING | 5508-6542 | ||
| 6 | 170-30-91130 | PIN | 5508-@ | |
| 7 | 07000-02130 | O-RING | 5508-@ | |
| 170-30-00111 | FLOATING SEAL ASS'Y | 5508-@ | ||
| 8 | 170-30-00180 | SEAL RING ASS'Y | 5508-@ | |
| \6\ | RING | 5508-@ | ||
| 9 | 175-30-00580 | O-RING ASS'Y | 5508-@ | |
| \6\ | O-RING | 5508-@ | ||
| 10 | 07000-03068 | O-RING | 5508-@ | |
| 11 | 01010-31235 | BOLT | 5508-@ | |
| 12 | 01602-01236 | WASHER | 5508-@ | |
| 175-30-33152 | BRACKET ASS'Y,L.H. | 8651-10262 | ||
| 175-30-33151 | BRACKET ASS'Y,L.H. | 7190-8650 | ||
| 175-30-33150 | BRACKET ASS'Y,L.H. | 7136-7189 | ||
| 175-30-33412 | COLLAR ASS'Y | 7084-7135 | ||
| 175-30-33150 | BRACKET ASS'Y,L.H. | 7060-7083 | ||
| 175-30-33412 | COLLAR ASS'Y | 5508-7059 | ||
| 175-30-33162 | BRACKET ASS'Y,R.H. | 8651-10262 | ||
| 175-30-33161 | BRACKET ASS'Y,R.H. | 7190-8650 | ||
| 175-30-33160 | BRACKET ASS'Y,R.H. | 7136-7189 | ||
| 175-30-33412 | COLLAR ASS'Y | 7084-7135 | ||
| 175-30-33160 | BRACKET ASS'Y,R.H. | 7060-7083 | ||
| 175-30-33412 | COLLAR ASS'Y | 5508-7059 | ||
| \6\ | BRACKET,L.H. | 8651-10262 | ||
| \6\ | BRACKET,L.H. | 7190-8650 | ||
| \6\ | BRACKET,L.H. | 7136-7189 | ||
| \6\ | COLLAR | 7084-7135 | ||
| \6\ | BRACKET,L.H. | 7060-7083 | ||
| \6\ | COLLAR | 5508-7059 | ||
| \6\ | BRACKET,R.H. | 8651-10262 | ||
| \6\ | BRACKET,R.H. | 7190-8650 | ||
| \6\ | BRACKET,R.H. | 7136-7189 | ||
| \6\ | COLLAR | 7084-7135 | ||
| \6\ | BRACKET,R.H. | 7060-7083 | ||
| \6\ | COLLAR | 5508-7059 | ||
| 14 | 170-30-13343 | PLATE | 8651-@ | |
| 170-30-13342 | PLATE | 5508-8650 | ||
| (\2\170-30-13341) | PLATE | (5508-6260) | ||
| 14A | 04020-01228 | PIN | 8651-@ | |
| 15 | 175-30-23422 | SUPPORT | 7084-7135 | |
| 175-30-23422 | SUPPORT | 5508-7059 | ||
| 16 | 175-30-23432 | SUPPORT | 7084-7135 | |
| 175-30-23432 | SUPPORT | 5508-7059 | ||
| 17 | 175-30-23170 | BOLT | 8651-10262 | |
| 170-30-13331 | BOLT | 5508-8650 | ||
| 18 | 175-30-23180 | NUT | 8651-@ | |
| 01580-01613 | NUT | 6091-8650 | ||
| 01503-31613 | NUT | 5508-6090 | ||
| 19 | 01640-01626 | WASHER | 5508-@ | |
| 20 | 01602-01648 | WASHER | 5508-@ | |
| 21 | 175-30-33213 | PLATE | 8651-10262 | |
| \0\175-30-33212 | PLATE | 7190-8650 | ||
| 175-30-33211 | PLATE | 5508-7189 | ||
| (\2\175-30-33210) | PLATE | (5508-7189) | ||
| 22 | 170-30-13233 | SHIM¤ 0.6MM | 7460-10262 | |
| 170-30-13232 | SHIM | 5508-7459 | ||
| 23 | 01010-32055 | BOLT | 7136-10262 | |
| 170-30-13243 | BOLT | 7084-7135 | ||
| 01010-32055 | BOLT | 7060-7083 | ||
| 170-30-13243 | BOLT | 6091-7059 | ||
| 170-30-13242 | BOLT | 5508-6090 | ||
| 24 | 01580-02016 | NUT | 7084-7135 | |
| 01580-02016 | NUT | 6091-7059 | ||
| 01503-32016 | NUT | 5508-6090 | ||
| 25 | 01602-02060 | WASHER | 5508-10262 | |
| 26 | 175-30-24131 | SEAT | 8651-@ | |
| 175-30-24130 | PLATE | 8281-8650 | ||
| \0\170-30-13251 | GUIDE | 5508-8280 | ||
| 27 | 155-30-13230 | SPRING | 8651-@ | |
| 150-30-12321 | SPRING | 5508-8650 | ||
| 28 | 195-30-17951 | BOLT | 8651-10262 | |
| 01016-31640 | BOLT | 7190-8650 | ||
| 01016-31645 | BOLT | 6091-7189 | ||
| 01046-01645 | BOLT | 5508-6090 | ||
| 29 | 01602-01648 | WASHER | 5508-10262 | |
| 30 | 195-30-17211 | SEAT | 7190-8280 | |
| 175-30-13140 | SEAT | 5508-7189 | ||
| 31 | 195-30-17960 | SEAT | 8651-@ | |
| 150-30-12310 | SEAT | 5508-8650 | ||
| SLAG HANDLING PARTS | ||||
| 7 | 07000-32130 | O-RING | 8651-@ | |
| 9 | 175-30-16214 | O-RING | 8651-@ | |
| 10 | 07000-33068 | O-RING | 8651-@ |
