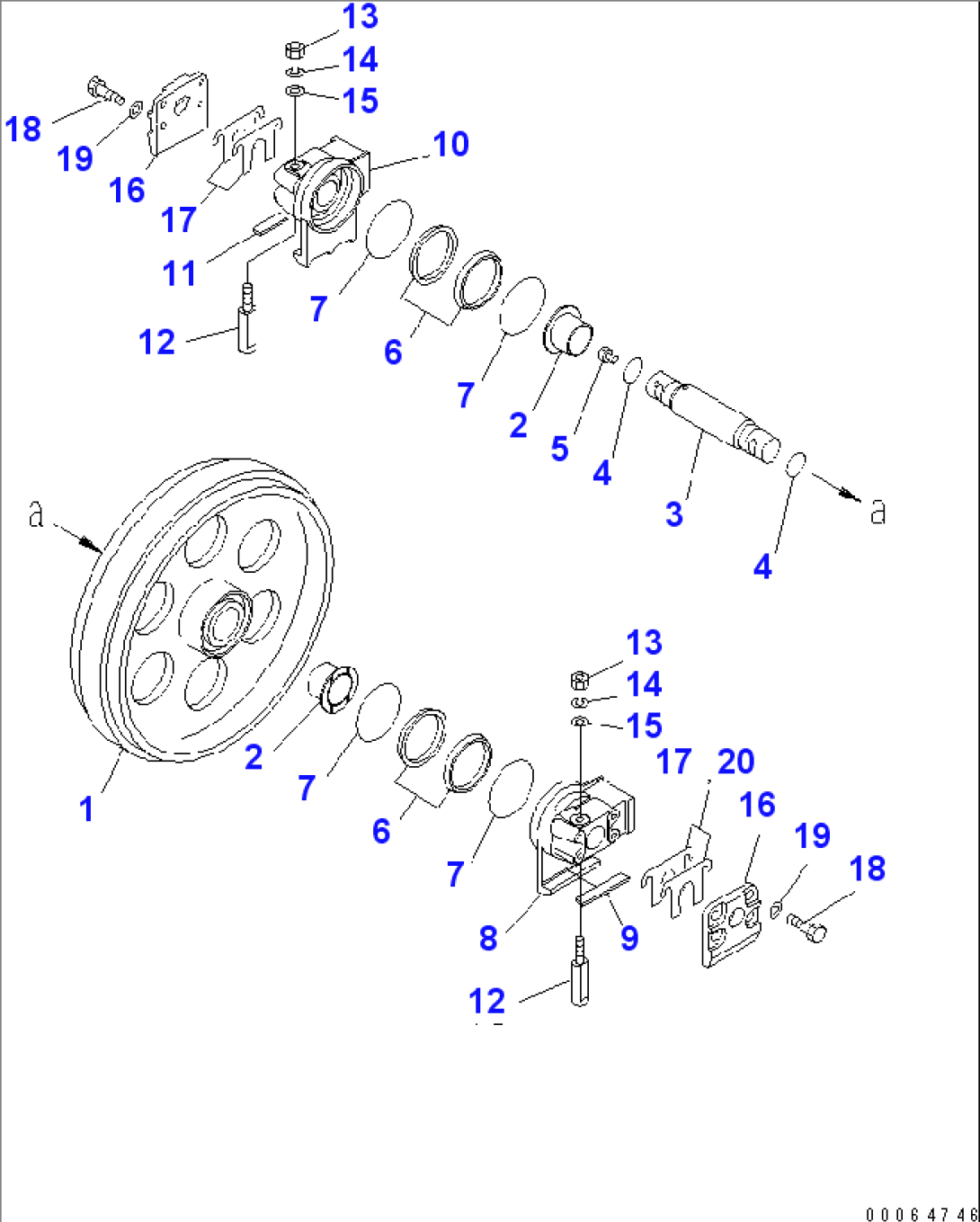

| Item | Part No. | Part Name | Qty | Serial No. |
| 101-30-00162 | IDLER ASS'Y | 90001- | ||
| 1 | 101-30-16210 | IDLER | 90001- | |
| 2 | 100-30-15120 | BUSHING | 90001- | |
| 3 | 101-30-16221 | SHAFT | 90001- | |
| 4 | 07000-03038 | O-RING | 90001- | |
| 5 | 07052-31217 | PLUG | 90001- | |
| 154-30-00832 | FLOATING SEAL ASS'Y | 90001- | ||
| 6 | \6\ | RING | 90001- | |
| 7 | \6\ | O-RING | 90001- | |
| 101-30-16270 | SUPPORT ASS'Y | 90001- | ||
| 8 | \6\ | SUPPORT | 90001- | |
| 9 | 10G-30-23140 | PLATE | 90001- | |
| 101-30-16280 | SUPPORT ASS'Y | 90001- | ||
| 10 | \6\ | SUPPORT | 90001- | |
| 11 | 10G-30-23140 | PLATE | 90001- | |
| 12 | 103-30-23140 | BOLT | 90001- | |
| 13 | 01582-11008 | NUT | 90001- | |
| 14 | 01602-21030 | WASHER | 90001- | |
| 15 | 01643-31032 | WASHER | 90001- | |
| 16 | 101-30-11540 | COVER | 90001- | |
| 17 | 101-30-11550 | SHIM, 1.0MM | 90042- | |
| 17 | 101-30-11550 | SHIM, 1.0MM | 90001-90041 | |
| 18 | 01010-81030 | BOLT | 90001- | |
| 19 | 01643-51032 | WASHER | 90001- | |
| 20 | 101-30-11550 | SHIM, 1.0MM | 90001- |
