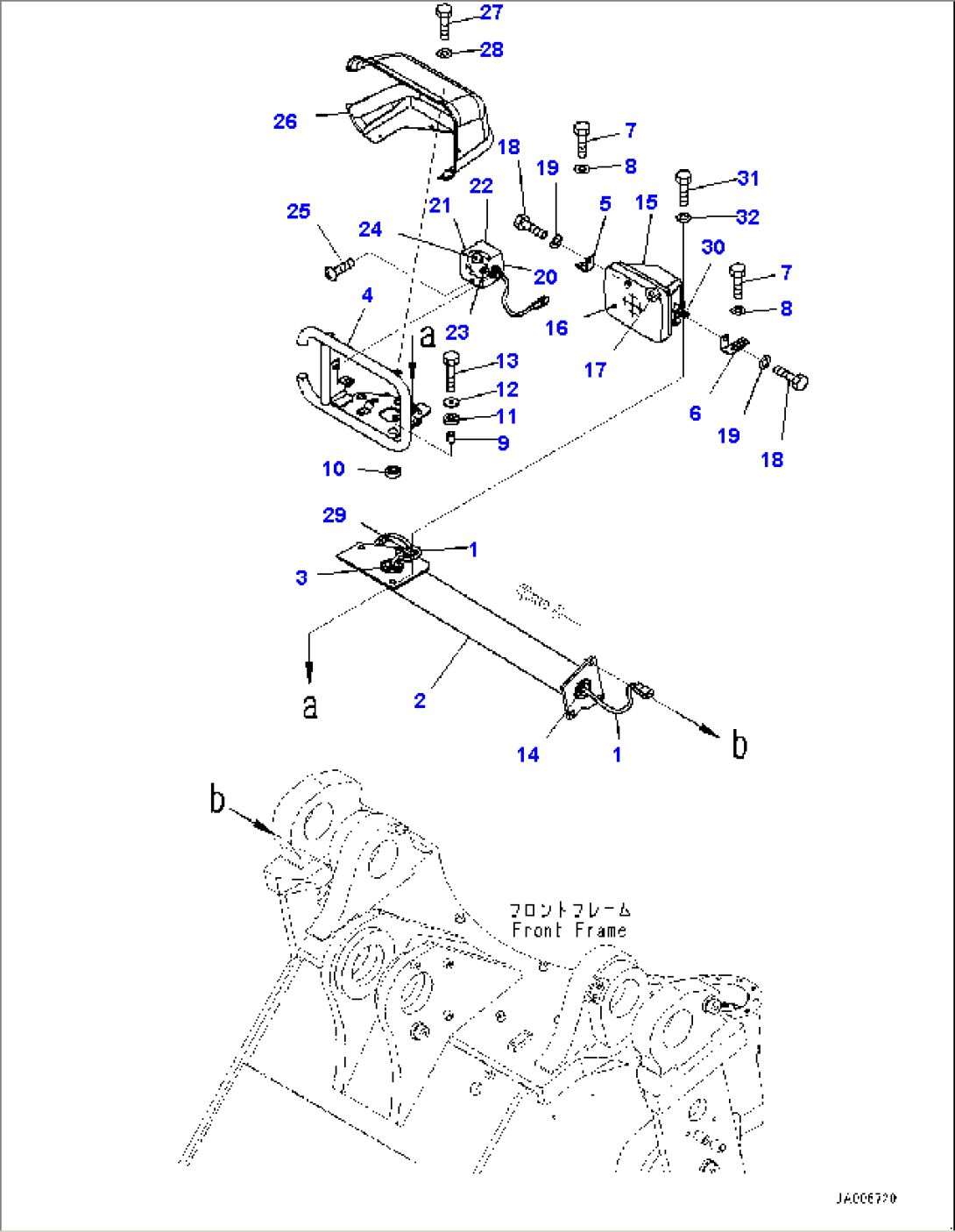

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-06-43151 | Wiring Harness | 90435- | |
| 2 | 421-06-43120 | Support | 90435- | |
| 3 | 08037-03614 | Grommet | 90435- | |
| 4 | 423-06-43140 | Bracket | 90435- | |
| 5 | 421-06-23552 | Plate | 90435- | |
| 6 | 421-06-23640 | Plate | 90435- | |
| 7 | 01010-81025 | Bolt | 90435- | |
| 8 | 01643-31032 | Washer | 90435- | |
| 9 | 417-54-13470 | Spacer | 90435- | |
| 10 | 419-43-17930 | Cushion | 90435- | |
| 11 | 415-64-13130 | Cushion | 90435- | |
| 12 | 419-43-17920 | Washer | 90435- | |
| 13 | 01010-81250 | Bolt | 90435- | |
| 14 | 08037-03614 | Grommet | 90435- | |
| 15 | 424-06-43211 | Lamp | 90435- | |
| 16 | 424-06-23220 | Lens, Clear | 90435- | |
| 17 | 424-06-23230 | Bulb, 75/70watt | 90435- | |
| 18 | 01010-80825 | Bolt | 90435- | |
| 19 | 01602-20825 | Washer | 90435- | |
| 20 | 424-06-43221 | Lamp | 90435- | |
| 21 | 41G-06-13210 | Lens, Orange | 90435- | |
| 22 | 41G-06-13220 | Lens, Orange | 90435- | |
| 23 | 41G-06-13230 | Bulb, 5watt | 90435- | |
| 24 | 08105-12420 | Bulb, 25watt | 90435- | |
| 25 | 01220-40425 | Screw | 90435- | |
| 26 | 421-06-23621 | Cover | 90435- | |
| 27 | 01010-80616 | Bolt | 90435- | |
| 28 | 01643-30623 | Washer | 90435- | |
| 29 | 04434-51010 | Clip | 90435- | |
| 30 | 04434-50610 | Clip | 90435- | |
| 31 | 01010-80820 | Bolt | 90435- | |
| 32 | 01643-30823 | Washer | 90435- |
