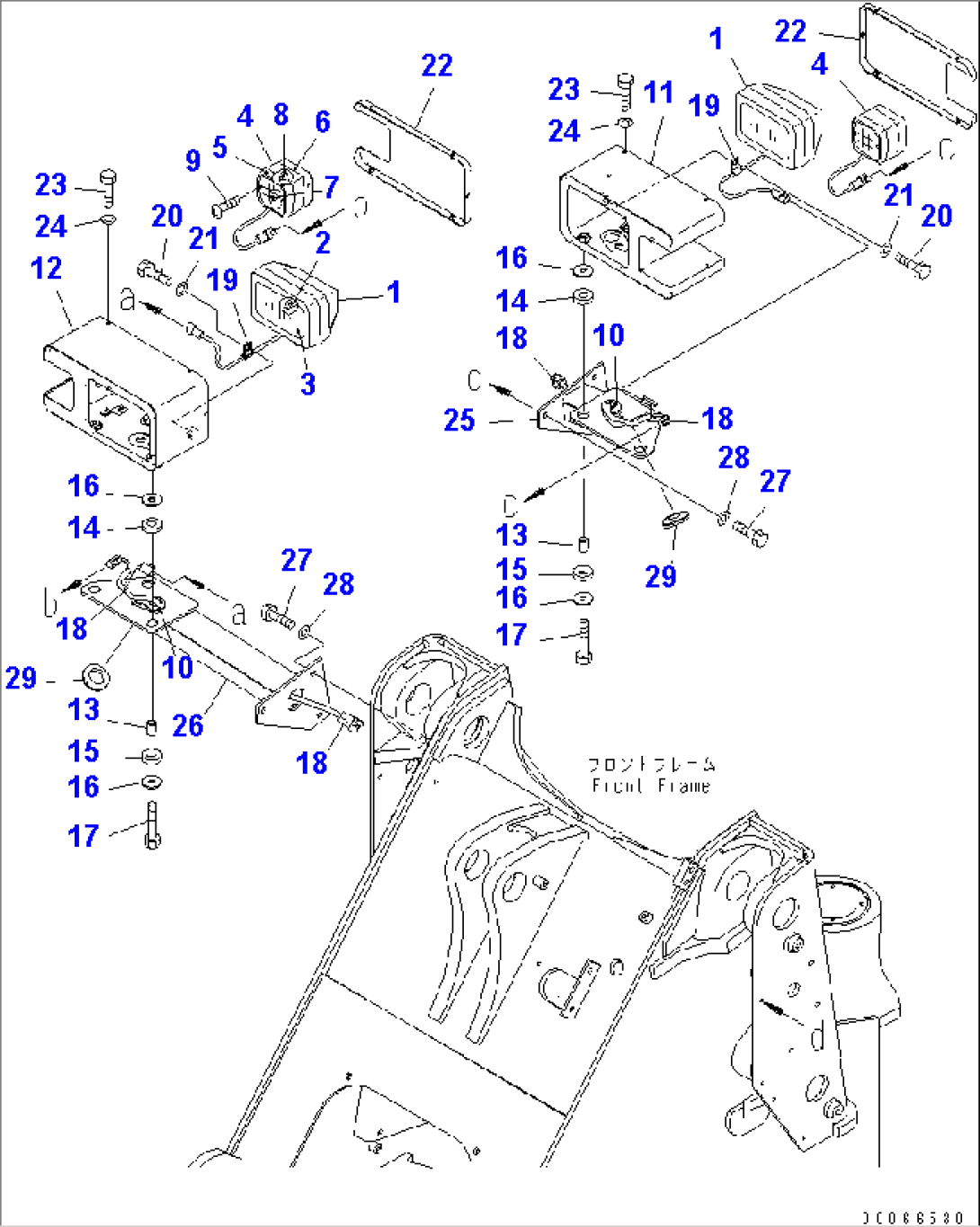

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-43110 | HEAD LAMP ASS'Y | 70001- | |
| 2 | 424-06-23230 | BULB, 75/70W | 70001- | |
| 3 | 23S-06-54121 | LENS ASS'Y | 70001- | |
| 4 | 424-06-43221 | LAMP | 70001- | |
| 5 | 41G-06-13210 | LENS,F | 70001- | |
| 6 | 41G-06-13220 | LENS,R | 70001- | |
| 7 | 41G-06-13230 | BULB, 5W | 70001- | |
| 8 | 08105-12420 | BULB, 25W | 70001- | |
| 9 | 01220-40425 | SCREW | 70001- | |
| 10 | 08037-02512 | GROMMET | 70001- | |
| 11 | 417-06-43530 | COVER,L.H. | 70001- | |
| 12 | 417-06-43540 | COVER,R.H. | 70001- | |
| 13 | 417-54-13470 | SPACER | 70001- | |
| 14 | 419-43-17930 | CUSHION | 70001- | |
| 15 | 415-64-13130 | CUSHION | 70001- | |
| 16 | 421-03-31590 | WASHER | 70001- | |
| 17 | 01010-D1245 | BOLT | 70001- | |
| 18 | 418-06-43120 | WIRING HARNESS | 70001- | |
| 19 | 04434-50610 | CLIP | 70001- | |
| 20 | 01010-81016 | BOLT | 70001- | |
| 21 | 01643-31032 | WASHER | 70001- | |
| 22 | 417-06-23190 | PLATE | 70001- | |
| 23 | 01010-D0612 | BOLT | 70001- | |
| 24 | 01643-70623 | WASHER | 70001- | |
| 25 | 417-06-43510 | SUPPORT,L.H. | 70001- | |
| 26 | 417-06-43520 | SUPPORT,R.H. | 70001- | |
| 27 | 01010-81025 | BOLT | 70001- | |
| 28 | 01643-31032 | WASHER | 70001- | |
| 29 | 09415-03614 | CAP | 70001- |
