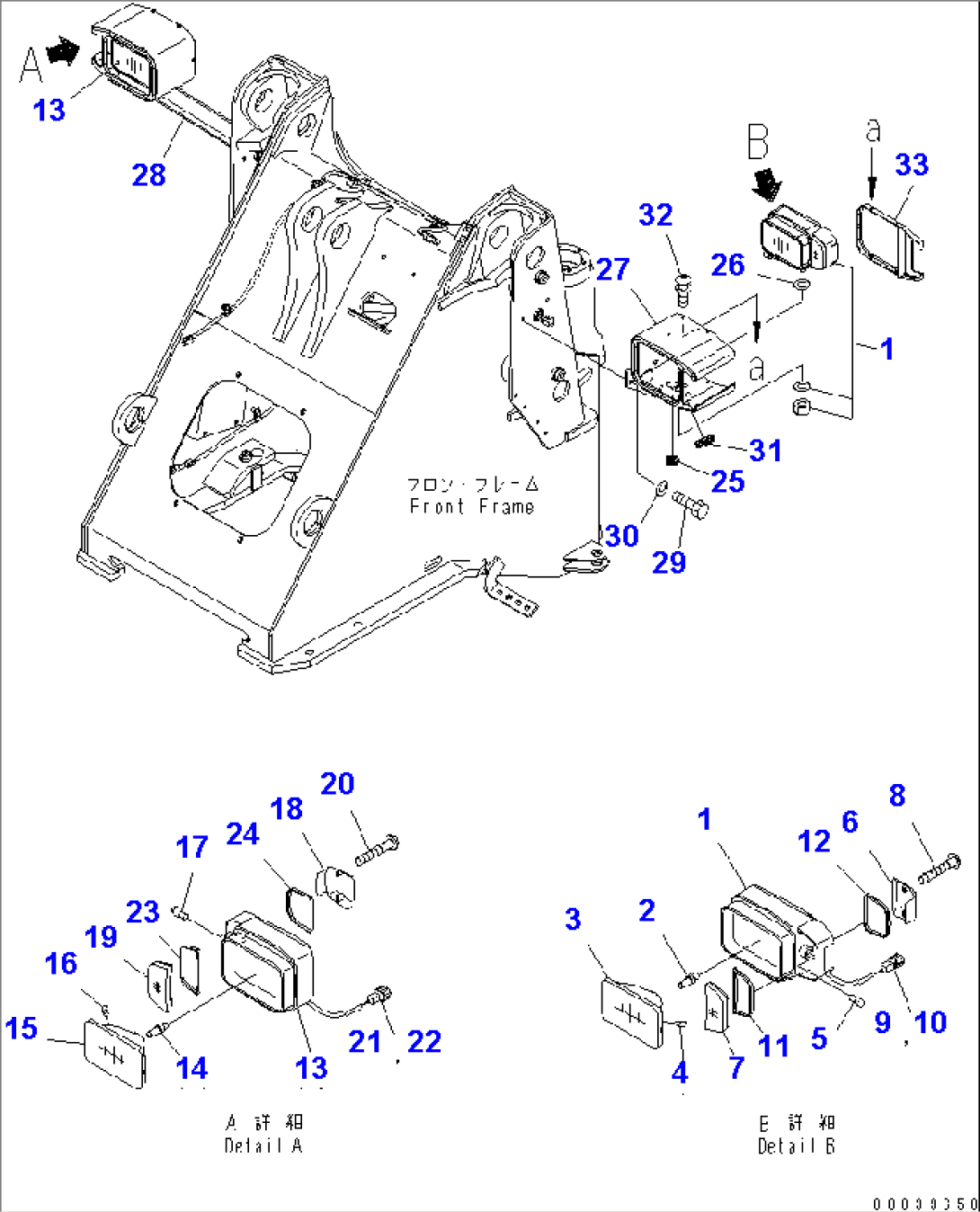

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-06-33212 | LAMP,HEAD, L.H. | A89001- | |
| 2 | 424-06-23230 | BULB, 75/70W | A89001- | |
| 3 | 418-06-33410 | LAMP | A89001- | |
| 4 | 418-06-33420 | BULB, 24V | A89001- | |
| 5 | 418-06-33430 | BULB, 24V | A89001- | |
| 6 | 418-06-33441 | LENS | A89001- | |
| 7 | 418-06-33451 | LENS | A89001- | |
| 8 | 418-06-33460 | SCREW | A89001- | |
| 9 | 08055-10612 | BODY | A89001- | |
| 10 | 08055-10630 | HOLDER | A89001- | |
| 11 | 418-06-33470 | GASKET | A89001- | |
| 12 | 418-06-33480 | GASKET | A89001- | |
| 13 | 418-06-33222 | LAMP,HEAD, R.H. | A89001- | |
| 14 | 424-06-23230 | BULB, 75/70W | A89001- | |
| 15 | 418-06-33410 | LAMP | A89001- | |
| 16 | 418-06-33420 | BULB, 24V | A89001- | |
| 17 | 418-06-33430 | BULB, 24V | A89001- | |
| 18 | 418-06-33441 | LENS | A89001- | |
| 19 | 418-06-33451 | LENS | A89001- | |
| 20 | 418-06-33460 | SCREW | A89001- | |
| 21 | 08055-10612 | BODY | A89001- | |
| 22 | 08055-10630 | HOLDER | A89001- | |
| 23 | 418-06-33470 | GASKET | A89001- | |
| 24 | 418-06-33480 | GASKET | A89001- | |
| 25 | 207-54-16860 | GROMMET | A89001- | |
| 26 | 209-09-11340 | WASHER | A89001- | |
| 27 | 418-06-33115 | SUPPORT,L.H. | A89001- | |
| 28 | 418-06-33125 | SUPPORT,R.H. | A89001- | |
| 29 | 01010-81025 | BOLT | A89001- | |
| 30 | 01643-31032 | WASHER | A89001- | |
| 31 | 09415-03614 | CAP | A89001- | |
| 32 | 01023-10612 | SCREW | A89001- | |
| 33 | 418-06-33191 | PLATE | A89001- |
