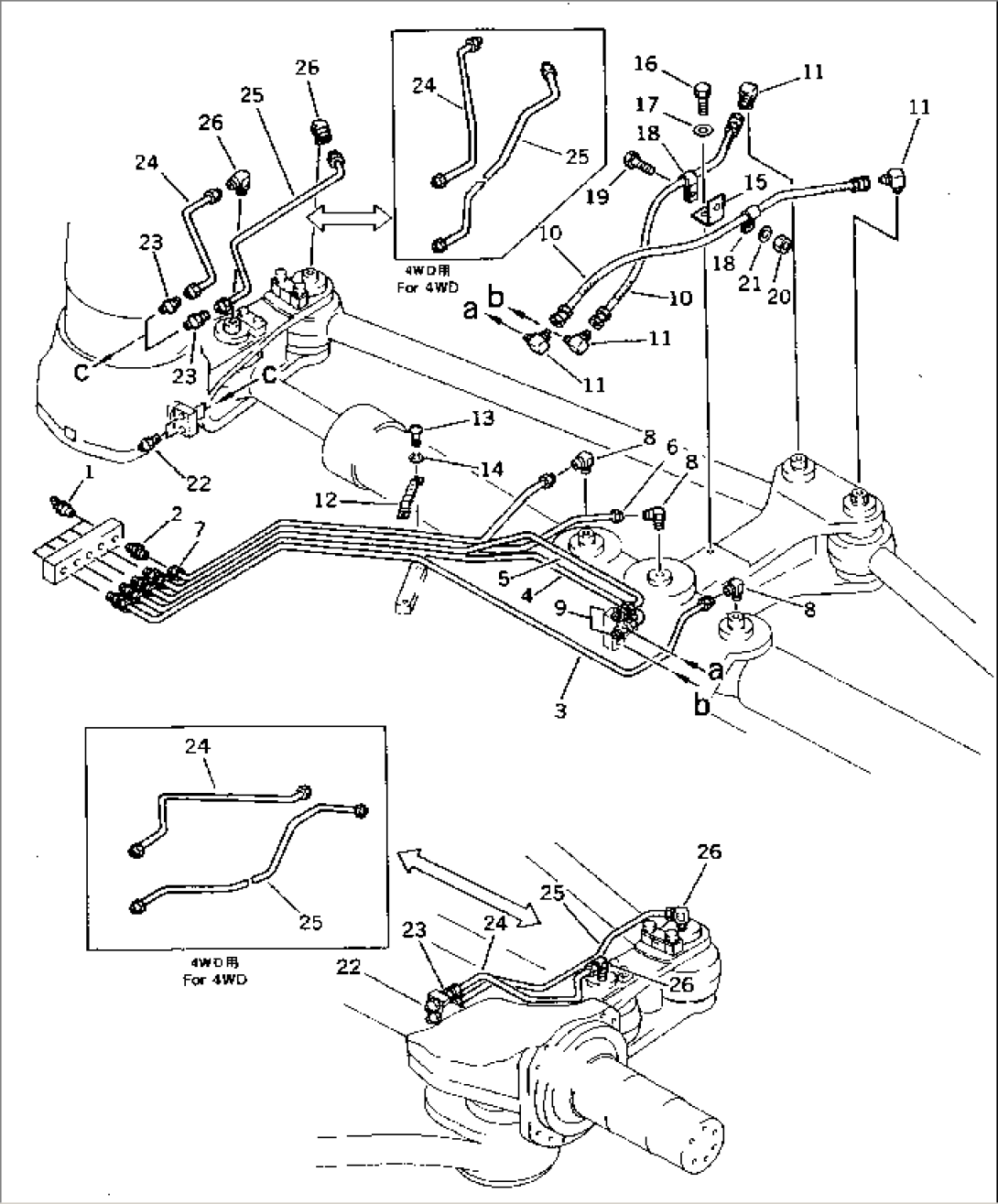

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07020-00675 | FITTING,GREASE | 5001-5484 | |
| 2 | 07213-50610 | CONNECTOR | 5001-5484 | |
| 3 | 566-52-43221 | TUBE | 5001-5484 | |
| 4 | 566-52-43135 | TUBE | 5001-5484 | |
| 5 | 566-52-43125 | TUBE | 5001-5484 | |
| 6 | 566-52-43144 | TUBE | 5001-5484 | |
| 7 | 566-52-43153 | TUBE | 5001-5484 | |
| 8 | 566-35-12260 | ELBOW | 5001-5484 | |
| 9 | 07213-50610 | CONNECTOR | 5001-5484 | |
| 10 | 566-52-43211 | HOSE | 5001-5484 | |
| 11 | 566-52-43390 | ELBOW | 5001-5484 | |
| 12 | 582-52-12240 | CLIP | 5001-5484 | |
| 13 | 01010-50812 | BOLT | 5001-5484 | |
| 14 | 01643-30823 | WASHER | 5001-5484 | |
| 15 | 566-52-43110 | BRACKET | 5001-5484 | |
| 16 | 01010-51630 | BOLT | 5001-5484 | |
| 17 | 01643-31645 | WASHER | 5001-5484 | |
| 18 | 08036-10814 | CLIP | 5001-5484 | |
| 19 | 01010-51025 | BOLT | 5001-5484 | |
| 20 | 01580-11008 | NUT | 5001-5484 | |
| 21 | 01643-31032 | WASHER | 5001-5484 | |
| 22 | 07020-00000 | FITTING,GREASE | 5001-5484 | |
| 23 | 07213-50610 | CONNECTOR | 5001-5484 | |
| 24 | 566-52-6C110 | TUBE,L.H. | 5001-5484 | |
| 24 | 566-88-6D220 | TUBE,L.H. (FOR 4WD) | 5001-5484 | |
| 24 | 566-52-43161 | TUBE,R.H. | 5001-5484 | |
| 24 | 566-88-6D240 | TUBE,R.H. (FOR 4WD) | 5001-5484 | |
| 25 | 566-52-6C120 | TUBE,L.H. | 5001-5484 | |
| 25 | 566-88-6D210 | TUBE,L.H. (FOR 4WD) | 5001-5484 | |
| 25 | 566-52-43171 | TUBE,R.H. | 5001-5484 | |
| 25 | 566-88-6D230 | TUBE,R.H. (FOR 4WD) | 5001-5484 | |
| 26 | 566-35-12260 | ELBOW | 5001-5484 |
