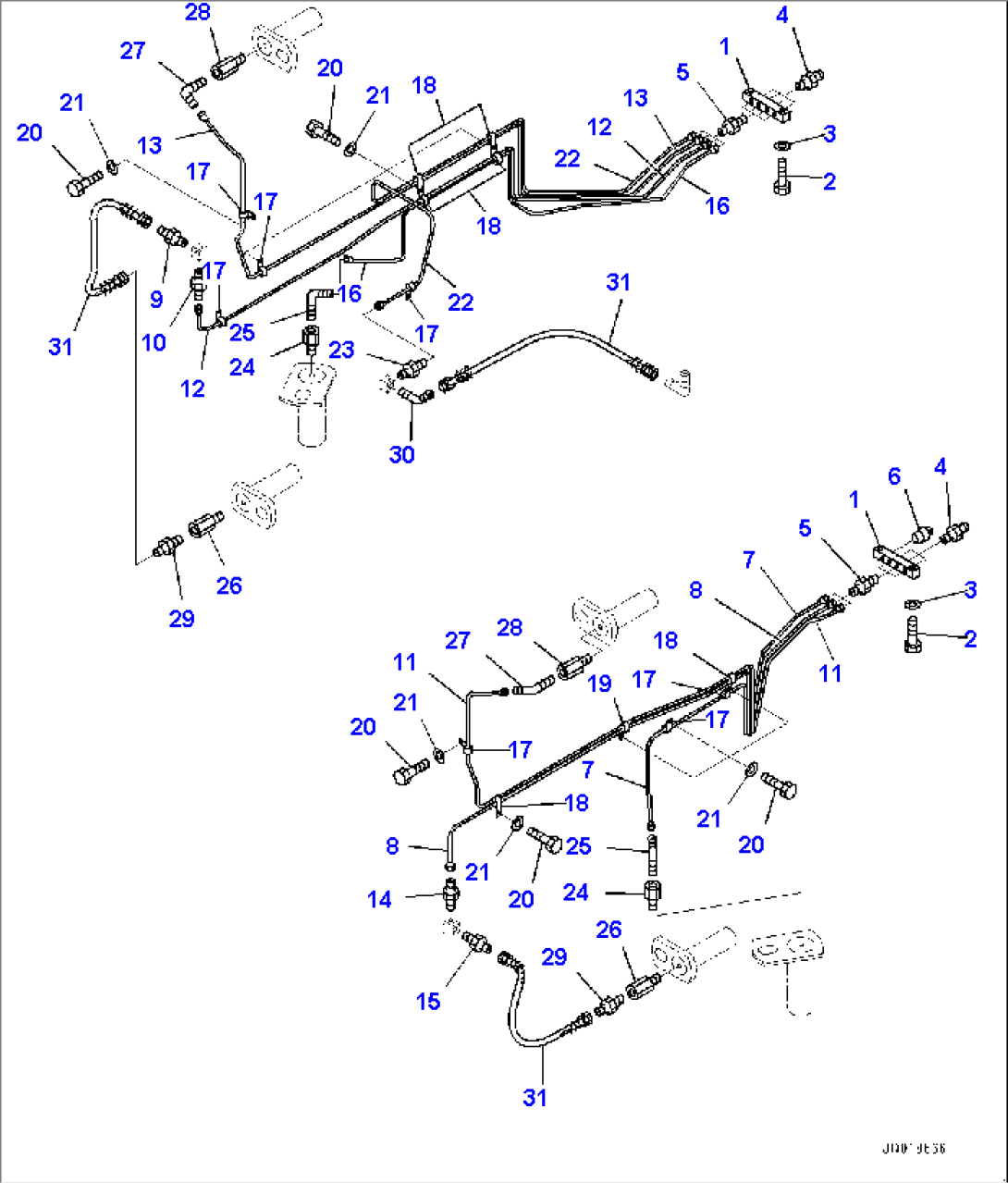

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-52-12281 | Joint | 2633- | |
| 2 | 01010-80835 | Bolt | 2633- | |
| 3 | 01643-30823 | Washer | 2633- | |
| 4 | 07020-00000 | Fitting, Grease | 2633- | |
| 5 | 423-09-12110 | Connector | 2633- | |
| 6 | 07042-30108 | Plug | 2633- | |
| 7 | 56B-52-23210 | Tube | 2633- | |
| 8 | 56B-52-23221 | Tube | 2633- | |
| 9 | 566-52-43290 | Nipple | 2633- | |
| 10 | 423-09-12110 | Connector | 2633- | |
| 11 | 56B-52-23231 | Tube | 2633- | |
| 12 | 56B-52-23240 | Tube | 2633- | |
| 13 | 56B-52-12252 | Tube | 2633- | |
| 14 | 423-09-12110 | Connector | 2633- | |
| 15 | 566-52-43290 | Nipple | 2633- | |
| 16 | 56B-52-22330 | Tube | 2633- | |
| 17 | 04434-50610 | Clip | 2633- | |
| 18 | 04435-50608 | Clip | 2633- | |
| 19 | 04435-50610 | Clip | 2633- | |
| 20 | 01010-80816 | Bolt | 2633- | |
| 21 | 01643-30823 | Washer | 2633- | |
| 22 | 56B-52-22271 | Tube | 2633- | |
| 23 | 423-09-12110 | Connector | 2633- | |
| 24 | 566-52-12210 | Nipple | 2633- | |
| 25 | 421-09-12540 | Elbow | 2633- | |
| 26 | 562-95-13150 | Nipple | 2633- | |
| 27 | 421-09-12540 | Elbow | 2633- | |
| 28 | 562-95-13150 | Nipple | 2633- | |
| 29 | 566-52-43290 | Nipple | 2633- | |
| 30 | 201-62-41910 | Elbow | 2684- | |
| 30 | 19M-60-15330 | Elbow | 2633-2683 | |
| 31 | 203-62-22160 | Hose | 2633- |
