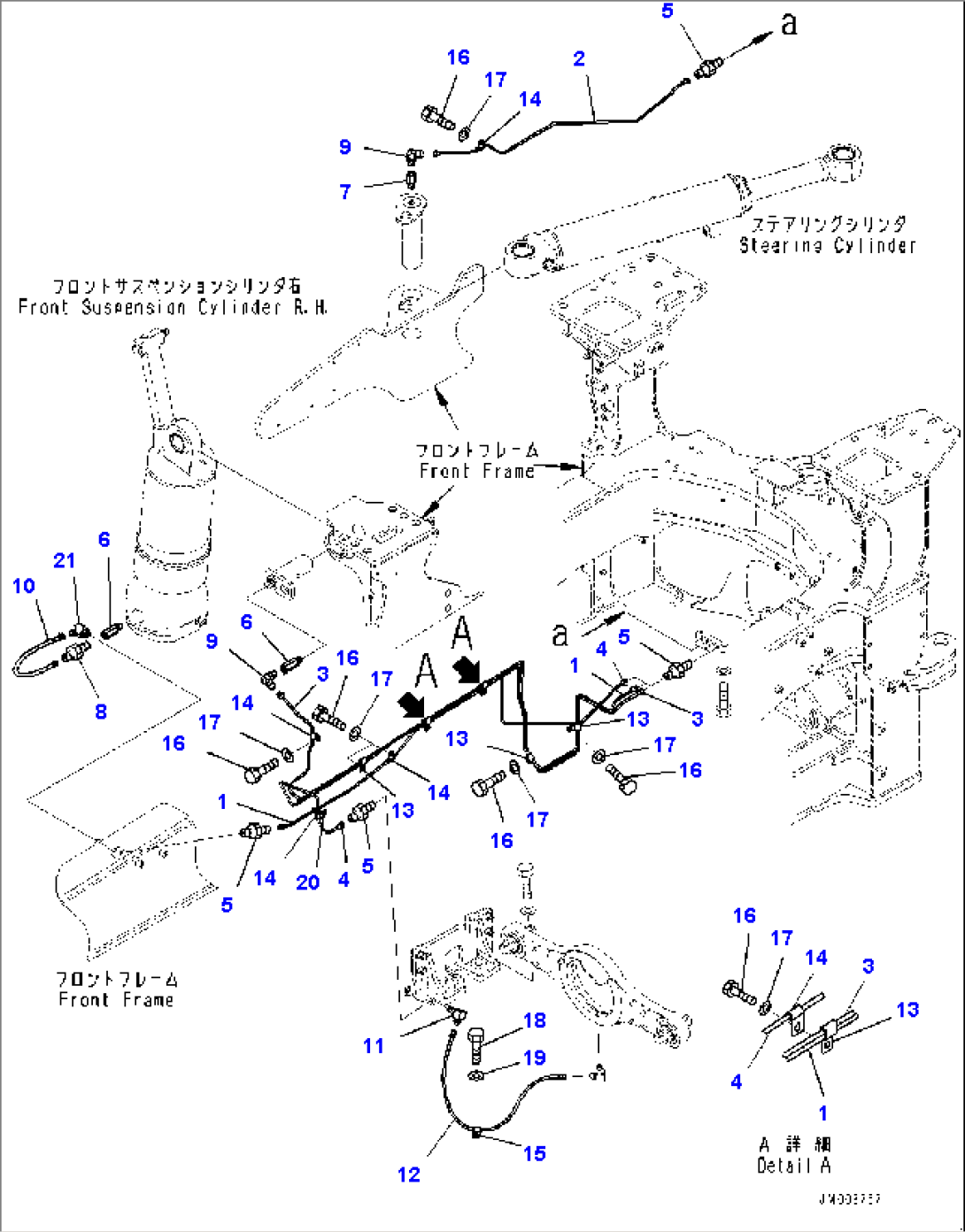

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-52-31241 | Tube | 10001- | |
| 2 | 56B-52-31251 | Tube | 10001- | |
| 3 | 56B-52-31261 | Tube | 10001- | |
| 4 | 56B-52-31272 | Tube | 10001- | |
| 5 | 423-09-12110 | Connector | 10001- | |
| 6 | 562-95-13150 | Nipple | 10001- | |
| 7 | 566-52-12210 | Nipple | 10001- | |
| 8 | 566-52-43290 | Nipple | 10001- | |
| 9 | 421-09-12540 | Elbow | 10001- | |
| 10 | 203-62-22160 | Hose | 10001- | |
| 11 | 566-52-43390 | Elbow | 10001- | |
| 12 | 566-52-43210 | Hose | 10001- | |
| 13 | 04435-50608 | Clip | 10001- | |
| 14 | 04434-50608 | Clip | 10001- | |
| 15 | 04434-50810 | Clip | 10001- | |
| 16 | 01010-80816 | Bolt | 10001- | |
| 17 | 01643-30823 | Washer | 10001- | |
| 18 | 01010-81016 | Bolt | 10001- | |
| 19 | 01643-31032 | Washer | 10001- | |
| 20 | 04434-50610 | Clip | 10001- | |
| 21 | 201-62-41910 | Elbow | 10001- |
