| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-89-82110 | GUARD | 15001- | |
| 2 | 01010-81650 | BOLT | 15001- | |
| 3 | 01643-31645 | WASHER | 15001- | |
| 4 | 569-89-82121 | BRACKET | 15001- | |
| 5 | 569-89-82130 | BRACKET | 15001- | |
| 6 | 01010-81640 | BOLT | 15001- | |
| 7 | 01643-31645 | WASHER | 15001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd605 7r s/n 15001 15351 (w/o egr)
- Miscellaneous
- Front propeller shaft guard(#15001 )
Поиск по каталогу

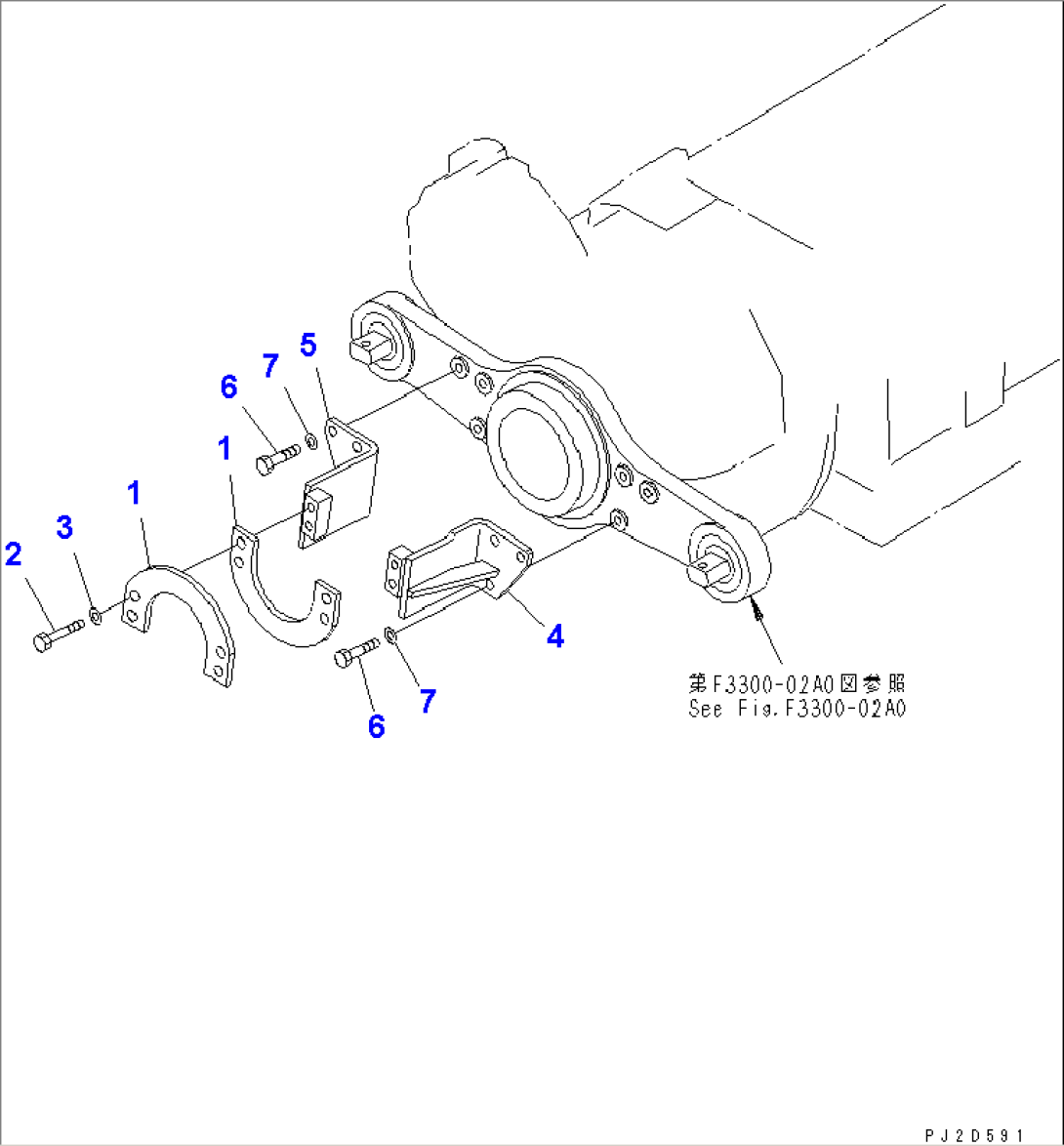

FRONT PROPELLER SHAFT GUARD(#15001-)
