| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | MOTOR, WIPER (SEE PG 13-060) | |||
| 2 | 187 540 | GROMMET | ||
| 3 | KIT, SLAVE PIVOT (SEE PG 13-052) | |||
| 4 | 120 392 | WASHER, FLAT | ||
| 5 | 24 686 R1 | BOLT | ||
| 6 | 1209 654 H1 | ARM, WIPER | ||
| 7 | 1278 557 H1 | BLADE, WIPER |
- Главная
- Каталог запчастей
- Автогрейдеры
- 850 s/n u200000 u200416
- Superstructure
- Front & rear wiper installation pantograph arm
Поиск по каталогу

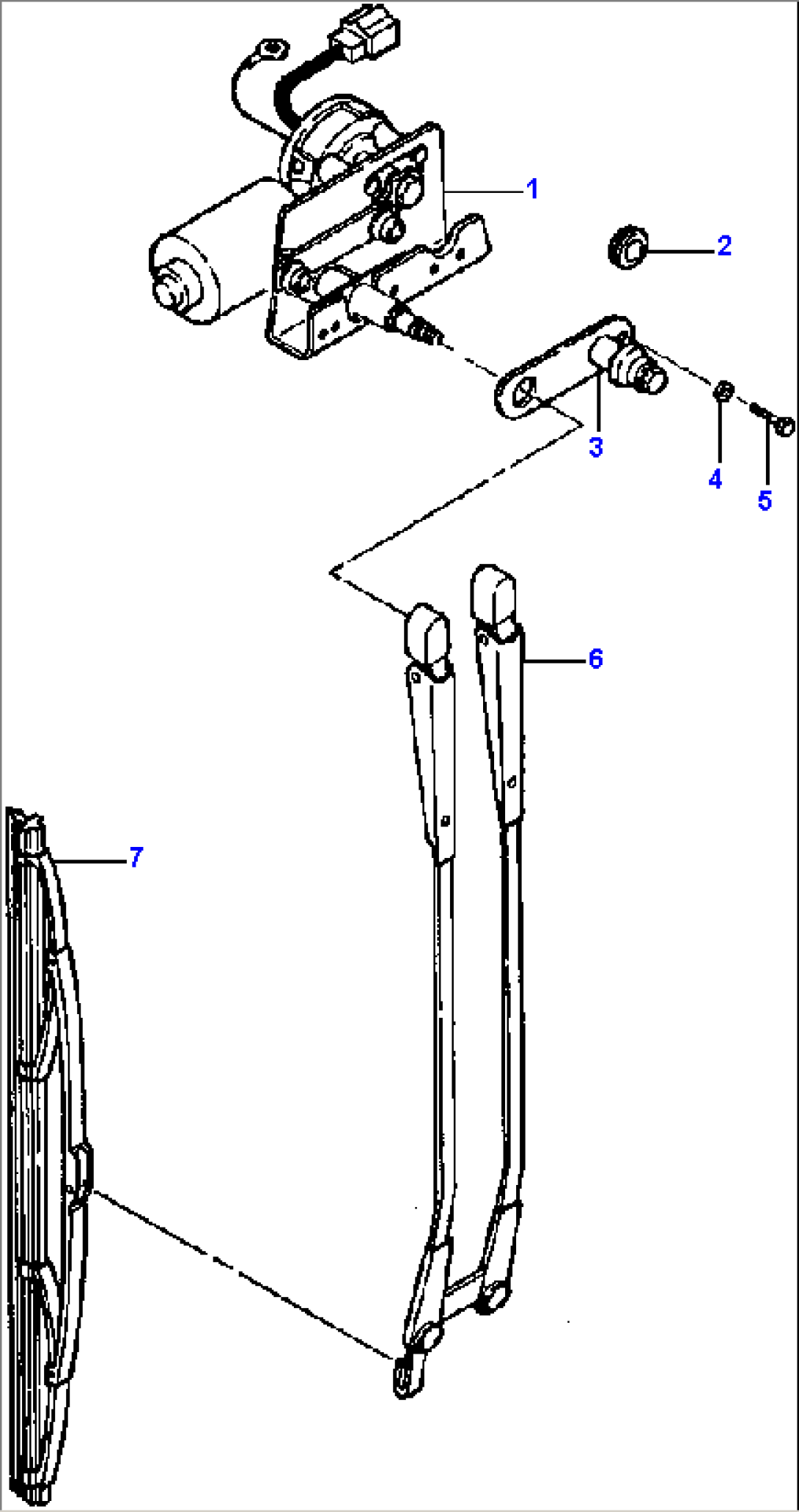

FRONT & REAR WIPER INSTALLATION PANTOGRAPH ARM
