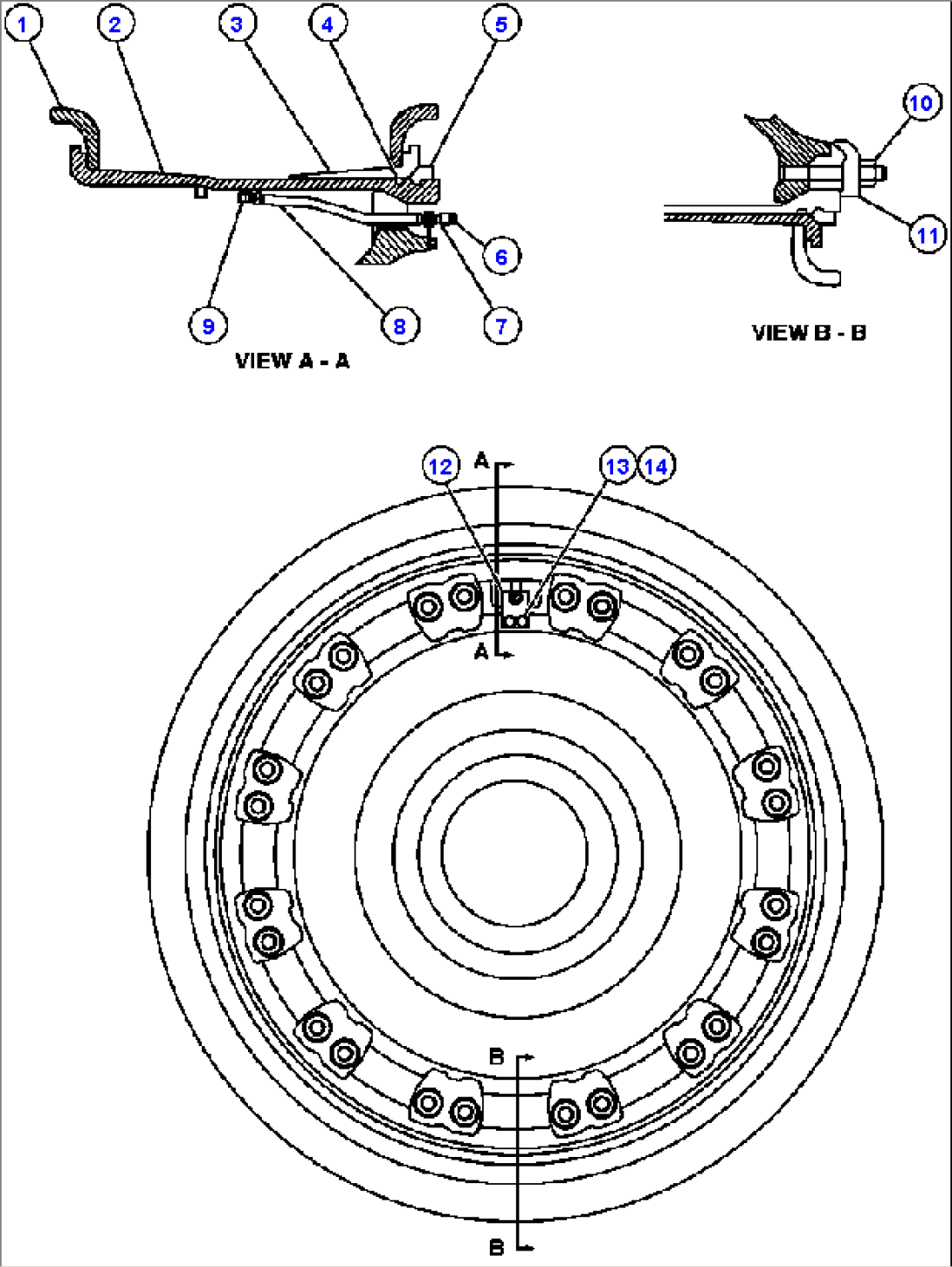

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | AK7742 | RING, SIDE | ||
| 2 | AK3911 | BASE, RIM - 51 X 24 | ||
| 3 | AK8008 | BAND, BEAD SEAT | ||
| 4 | TA2214 | O-RING | ||
| 5 | AK8012 | RING, LOCK | ||
| 6 | WA2670 | CAP, VALVE | ||
| 7 | VJ8012 | HOUSING, CORE | ||
| 8 | PB6610 | EXTENSION, FLEXABLE (1) | ||
| 8 | PB9639 | EXTENSION, FLEXABLE (2) | ||
| 9 | PB4443 | SPUD | ||
| 10 | 582-27-11291 | NUT | ||
| 11 | 561-22-62841 | CLAMP | ||
| 12 | EG1599 | PLATE | ||
| 13 | 01010-81220 | CAPSCREW | ||
| 14 | 01643-31232 | WASHER | ||
| NS|16 | NOTE: (1) EFFECTIVE WITH AFP49-L & UP, EXCEPT AFP49-M. | |||
| NS|17 | (2) EFFECTIVE WITH AFP49-M ONLY. | |||
| NS|18 | (QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) |
