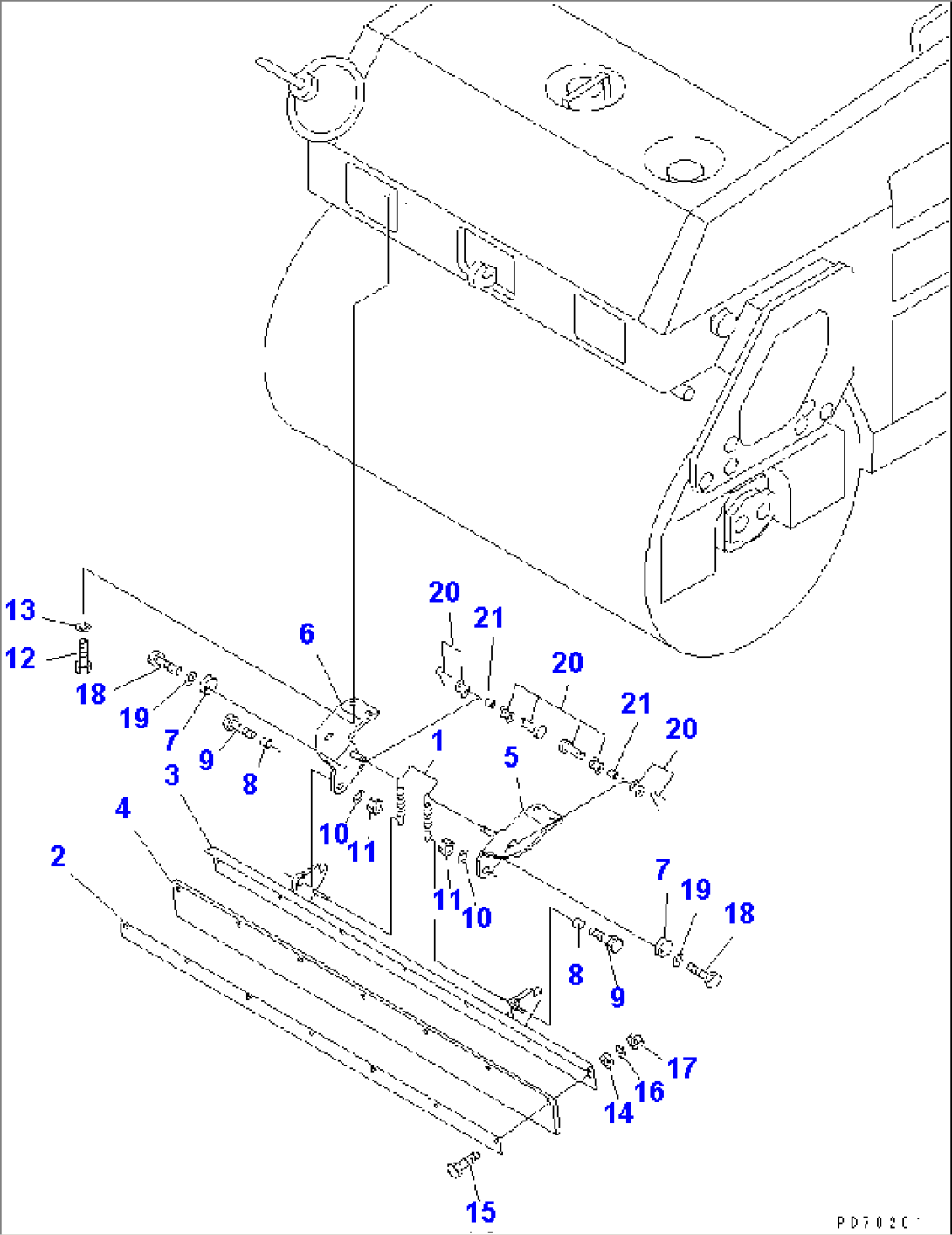

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 258-10-28120 | SPRING | 1001- | |
| 2 | 266-10-78320 | PLATE | 1026- | |
| 2 | 266-10-68320 | PLATE | 1001-1025 | |
| 3 | 2691-1-48600 | BRACKET | 1001- | |
| 4 | 266-10-78330 | SCRAPER | 1031- | |
| 4 | 266-10-68331 | SCRAPER | 1001-1030 | |
| 5 | 2691-1-48801 | BRACKET | 1026- | |
| 5 | 2691-1-48800 | BRACKET | 1001-1025 | |
| 6 | 2691-1-48701 | BRACKET | 1026- | |
| 6 | 2691-1-48700 | BRACKET | 1001-1025 | |
| 7 | 2691-1-48910 | STOPPER | 1001- | |
| 8 | 2691-1-48920 | SPACER | 1001- | |
| 9 | 01010-51645 | BOLT | 1001- | |
| 10 | 01602-01648 | WASHER,SPRING | 1001- | |
| 11 | 01580-11613 | NUT | 1001- | |
| 12 | 01010-51025 | BOLT | 1001- | |
| 13 | 01602-21030 | WASHER,SPRING | 1001- | |
| 14 | 268-30-13620 | WASHER | 1001- | |
| 15 | 01010-51040 | BOLT | 1001- | |
| 16 | 01602-21030 | WASHER,SPRING | 1001- | |
| 17 | 01580-11008 | NUT | 1001- | |
| 18 | 01010-50830 | BOLT | 1001- | |
| 19 | 01602-20825 | WASHER,SPRING | 1001- | |
| 20 | 04104-41001 | LINK,JOINT | 1001- | |
| 21 | 2691-1-48930 | SPACER | 1001- |
