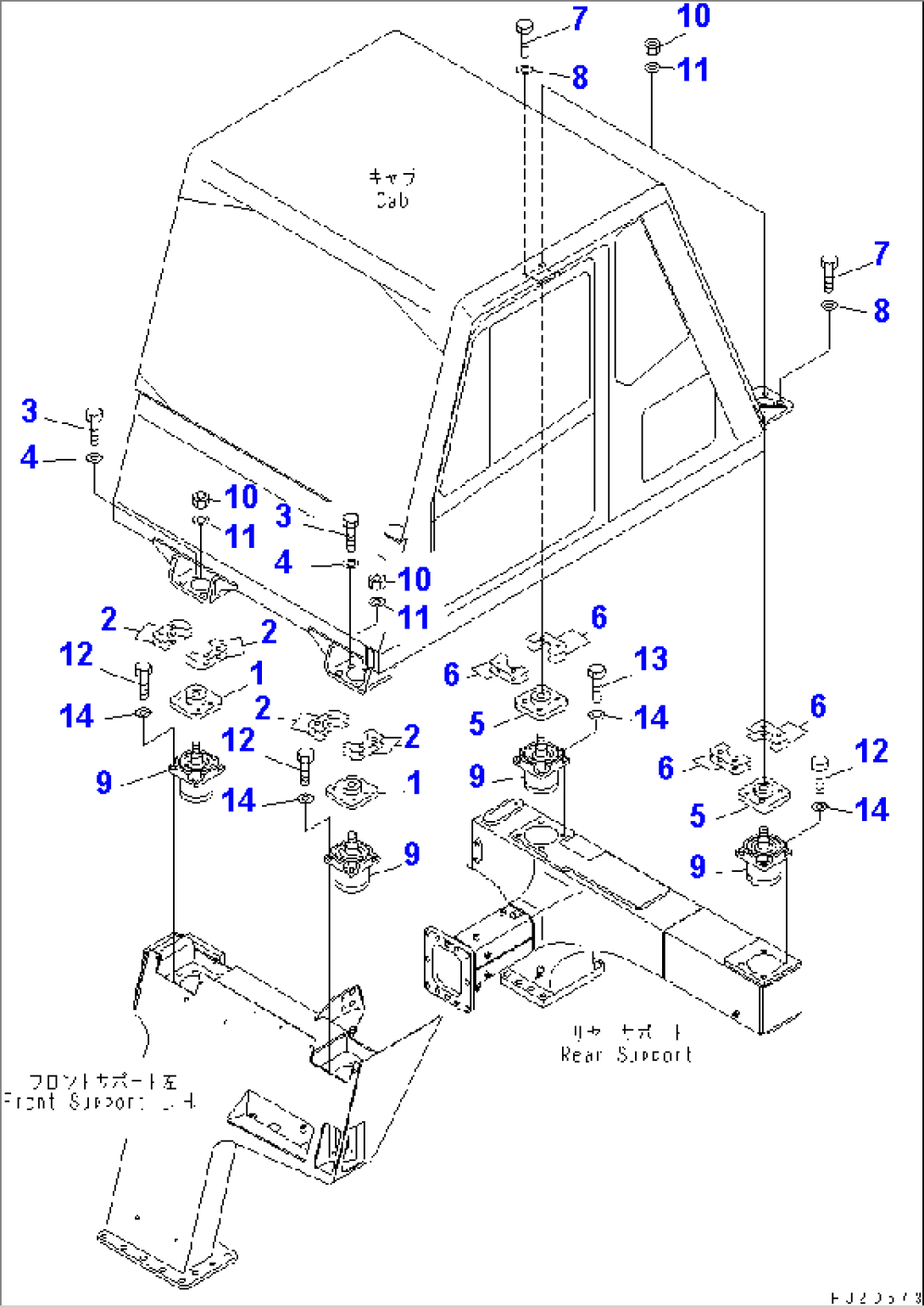

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-54-82310 | BRACKET | 7001- | |
| 2 | 569-54-82331 | SHIM¤ 0.5MM | 7001- | |
| 569-54-82341 | SHIM¤ 1.0MM | 7001- | ||
| 3 | 01010-81645 | BOLT | 7001- | |
| 4 | 01643-31645 | WASHER | 7001- | |
| 5 | 569-54-82322 | BRACKET | 7001- | |
| 6 | 569-54-82351 | SHIM¤ 0.5MM | 7001- | |
| 569-54-82361 | SHIM¤ 1.0MM | 7001- | ||
| 7 | 01010-82055 | BOLT | 7001- | |
| 8 | 01643-32060 | WASHER | 7001- | |
| 9 | 569-54-82371 | VISCOUS MOUNT | 7001- | |
| 10 | 01596-03024 | NUT | 7001- | |
| 11 | 01643-33080 | WASHER | 7001- | |
| 12 | 01010-82060 | BOLT | 7001- | |
| 13 | 01010-82055 | BOLT | 7001- | |
| 14 | 01643-32060 | WASHER | 7001- |
