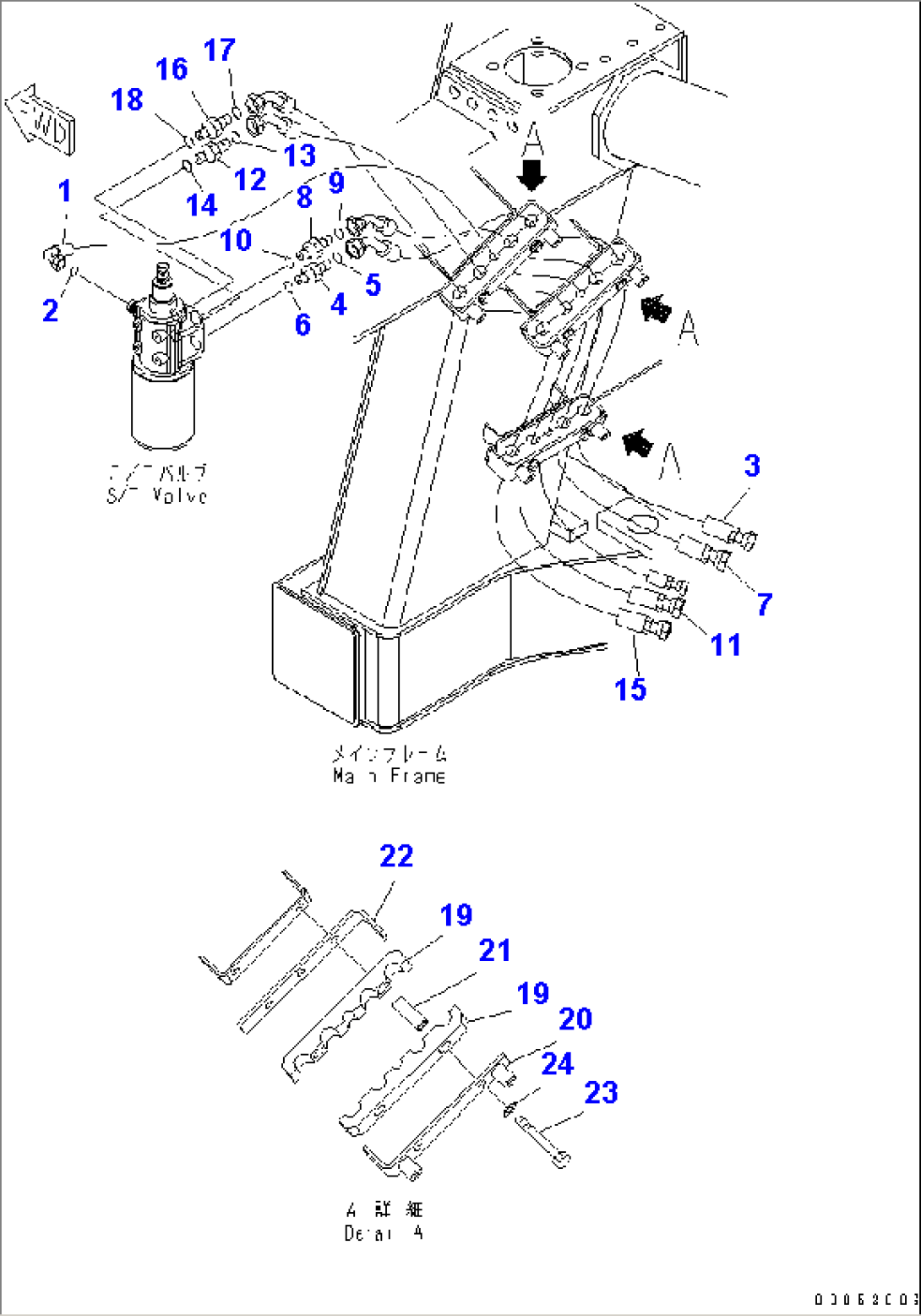

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02766-00423 | HOSE | A10001- | |
| 2 | 02896-21012 | O-RING | A10001- | |
| 3 | 561-61-82310 | HOSE | A10001- | |
| 4 | 569-61-84770 | NIPPLE | A10001- | |
| 5 | 02896-21018 | O-RING | A10001- | |
| 6 | 437-40-22310 | O-RING | A10001- | |
| 7 | 561-61-82320 | HOSE | A10001- | |
| 8 | 569-61-84770 | NIPPLE | A10001- | |
| 9 | 02896-21018 | O-RING | A10001- | |
| 10 | 437-40-22310 | O-RING | A10001- | |
| 11 | 561-61-82340 | HOSE | A10001- | |
| 12 | 569-61-84780 | NIPPLE | A10001- | |
| 13 | 02896-21018 | O-RING | A10001- | |
| 14 | 418-62-11620 | O-RING | A10001- | |
| 15 | 561-61-82350 | HOSE | A10001- | |
| 16 | 569-61-84780 | NIPPLE | A10001- | |
| 17 | 02896-21018 | O-RING | A10001- | |
| 18 | 418-62-11620 | O-RING | A10001- | |
| 19 | 561-61-64510 | CLAMP | A10001- | |
| 20 | 561-61-64540 | PLATE | A10001- | |
| 21 | 561-61-64530 | SPACER | A10001- | |
| 22 | 561-61-64520 | PLATE | A10001- | |
| 23 | 01010-81290 | BOLT | A10001- | |
| 24 | 01643-31232 | WASHER | A10001- |
