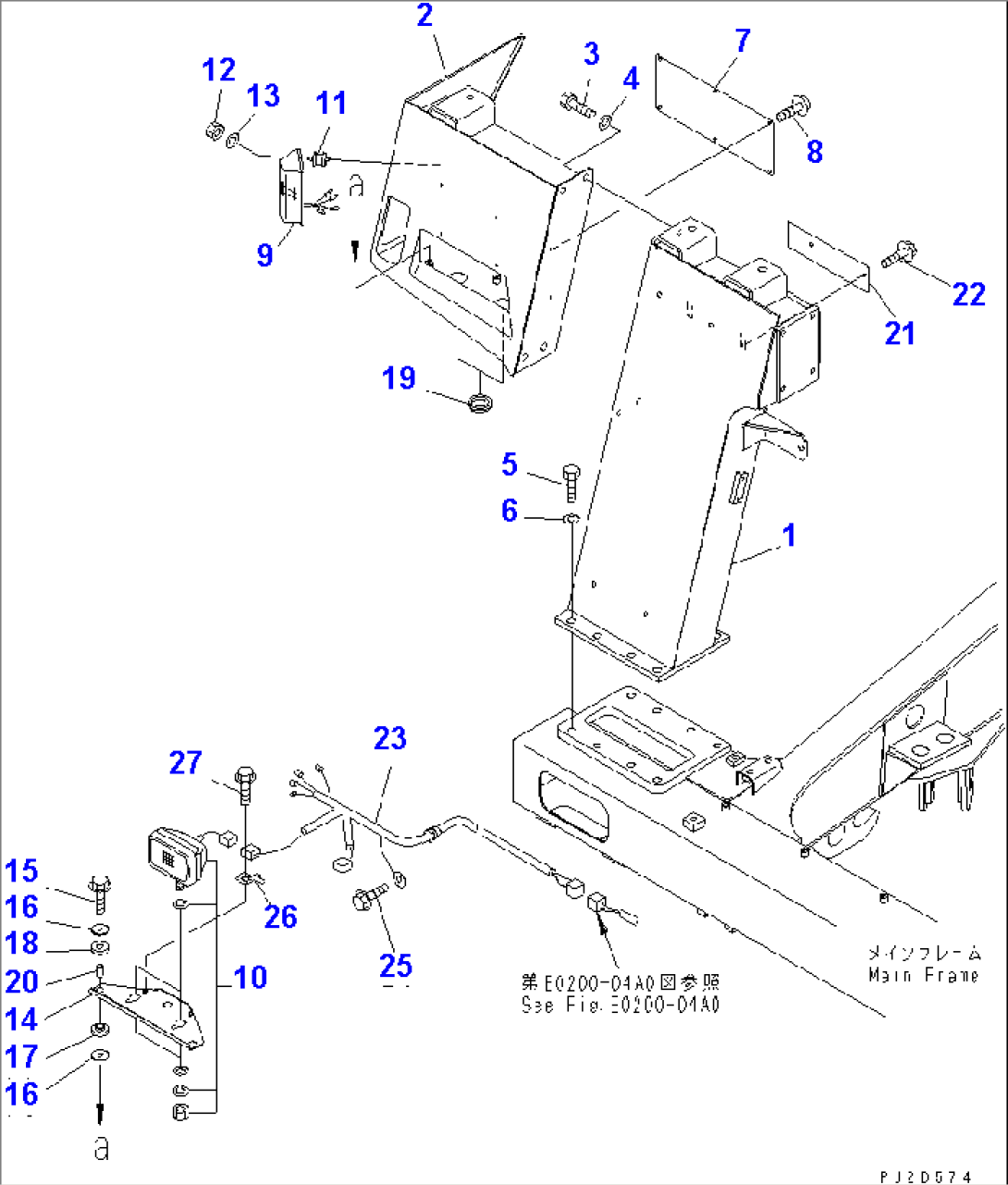

| Item | Part No. | Part Name | Qty | Serial No. |
| 569-85-81350 | SUPPORT ASS'Y | 7001- | ||
| 1 | 569-54-81321 | SUPPORT | 7001- | |
| 2 | 569-85-81330 | SUPPORT | 7001- | |
| 3 | 01010-82040 | BOLT | 7001- | |
| 4 | 01643-32060 | WASHER | 7001- | |
| 5 | 01010-82455 | BOLT | 7001- | |
| 6 | 01643-32460 | WASHER | 7001- | |
| 7 | 569-54-81841 | COVER | 7001- | |
| 8 | 01435-01016 | BOLT | 7001- | |
| 9 | 421-06-13401 | LAMP ASS'Y | 7001- | |
| 9 | 421-06-13310 | BULB, 10/4W | 7001- | |
| 9 | 22W-06-12320 | LENS | 7001- | |
| 9 | 08105-12420 | BULB, 25W | 7001- | |
| 10 | 566-06-6A310 | LAMP ASS'Y | 7001- | |
| 10 | 23S-06-54121 | LENS ASS'Y | 7001- | |
| 10 | 421-06-23330 | BULB, 70W | 7001- | |
| 11 | 421-06-13120 | CUSHION | 7001- | |
| 12 | 01580-10504 | NUT | 7001- | |
| 13 | 01643-30623 | WASHER | 7001- | |
| 14 | 569-54-81831 | BRACKET | 7001- | |
| 15 | 01435-01245 | BOLT | 7001- | |
| 16 | 419-43-17920 | WASHER | 7001- | |
| 17 | 419-43-17930 | CUSHION | 7001- | |
| 18 | 415-64-13130 | CUSHION | 7001- | |
| 19 | 09415-05016 | CAP | 7001- | |
| 20 | 417-54-13470 | SPACER | 7001- | |
| 21 | 569-54-81850 | COVER | 7001- | |
| 22 | 01435-01016 | BOLT | 7001- | |
| 23 | 569-06-83241 | WIRING HARNESS | 7001- | |
| 25 | 01435-01016 | BOLT | 7001- | |
| 26 | 08053-01512 | CLIP | 7001- | |
| 27 | 01435-01220 | BOLT | 7001- |
