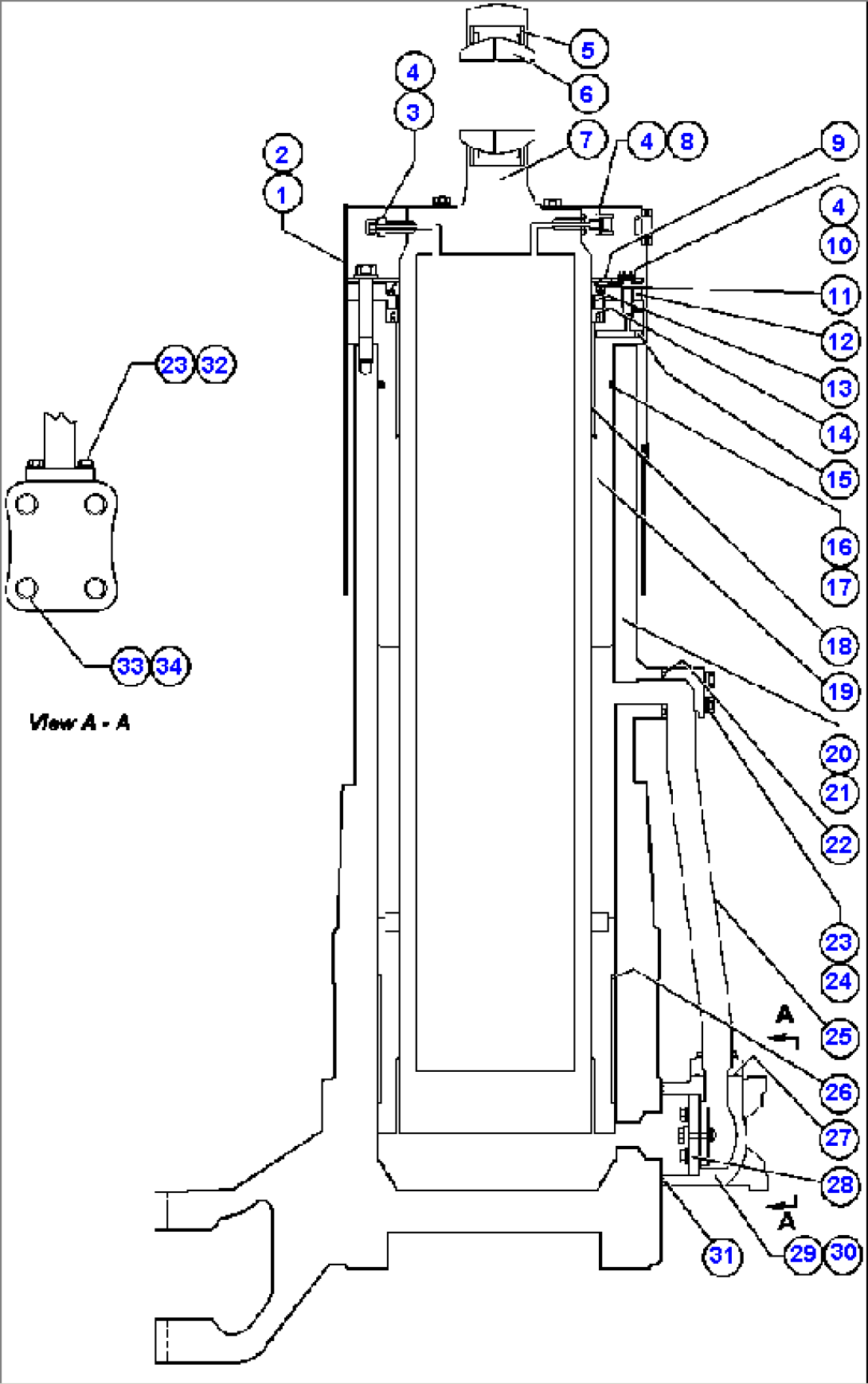

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81825 | CAPSCREW | ||
| 2 | 01643-31845 | WASHER | ||
| 3 | 566-50-11301 | VALVE ASSEMBLY | ||
| 4 | 566-50-11350 | PACKING | ||
| 5 | 04071-00190 | RING | ||
| 6 | 581-50-21450 | BUSHING | ||
| 7 | 562-50-30130 | ROD ASSEMBLY | ||
| 8 | 561-86-67700 | VALVE ASSEMBLY | ||
| 8 | 561-86-67710 | VALVE | ||
| 8 | 281-50-11721 | CORE | ||
| 9 | 562-50-31210 | PLATE | ||
| 10 | 566-50-21260 | VALVE | ||
| 11 | 581-50-21252 | SEAL | ||
| 12 | 562-50-31220 | RETAINER | ||
| 13 | 581-50-11520 | BUSHING | ||
| 14 | 581-50-11290 | SEAL | ||
| 15 | 07043-00108 | PLUG | ||
| 16 | 07000-15330 | O-RING | ||
| 17 | 07001-05330 | RING | ||
| 18 | 581-50-11180 | BUSHING | ||
| 19 | 562-50-31140 | FLANGE | ||
| 20 | 562-50-31111 | CYLINDER W/AXLE - R.H. | ||
| 21 | 562-50-31101 | CYLINDER W/AXLE - L.H. | ||
| 22 | 07000-13045 | O-RING | ||
| 23 | 01643-51232 | WASHER | ||
| 24 | 01010-81285 | CAPSCREW | ||
| 25 | 562-50-33310 | TUBE | ||
| 26 | 581-50-11511 | RING, WEAR | ||
| 27 | 07000-13048 | O-RING | ||
| 28 | VALVE ASSEMBLY (SEE FIG 50028) | |||
| 29 | 562-50-31200 | BODY, VALVE (1) | ||
| 30 | 562-50-33210 | BODY, VALVE (2) | ||
| 31 | 07000-12125 | O-RING | ||
| 32 | 07372-21240 | CAPSCREW | ||
| 33 | 01010-81675 | CAPSCREW | ||
| 34 | 01643-51645 | WASHER | ||
| NS|37 | NOTE: NS = NOT SHOWN | |||
| NS|38 | 7861-92-1620 | SENSOR, PRESSURE | ||
| NS|39 | NOTE: (1) EFFECTIVE WITH AFP49-M & UP, EXCEPT AFP49-Q,R,& T. | |||
| NS|40 | (2) EFFECTIVE WITH AFP49-L, Q, R & T ONLY. | |||
| NS|41 | (QUANITIES SHOWN ARE FOR ONE SIDE ONLY.) |
