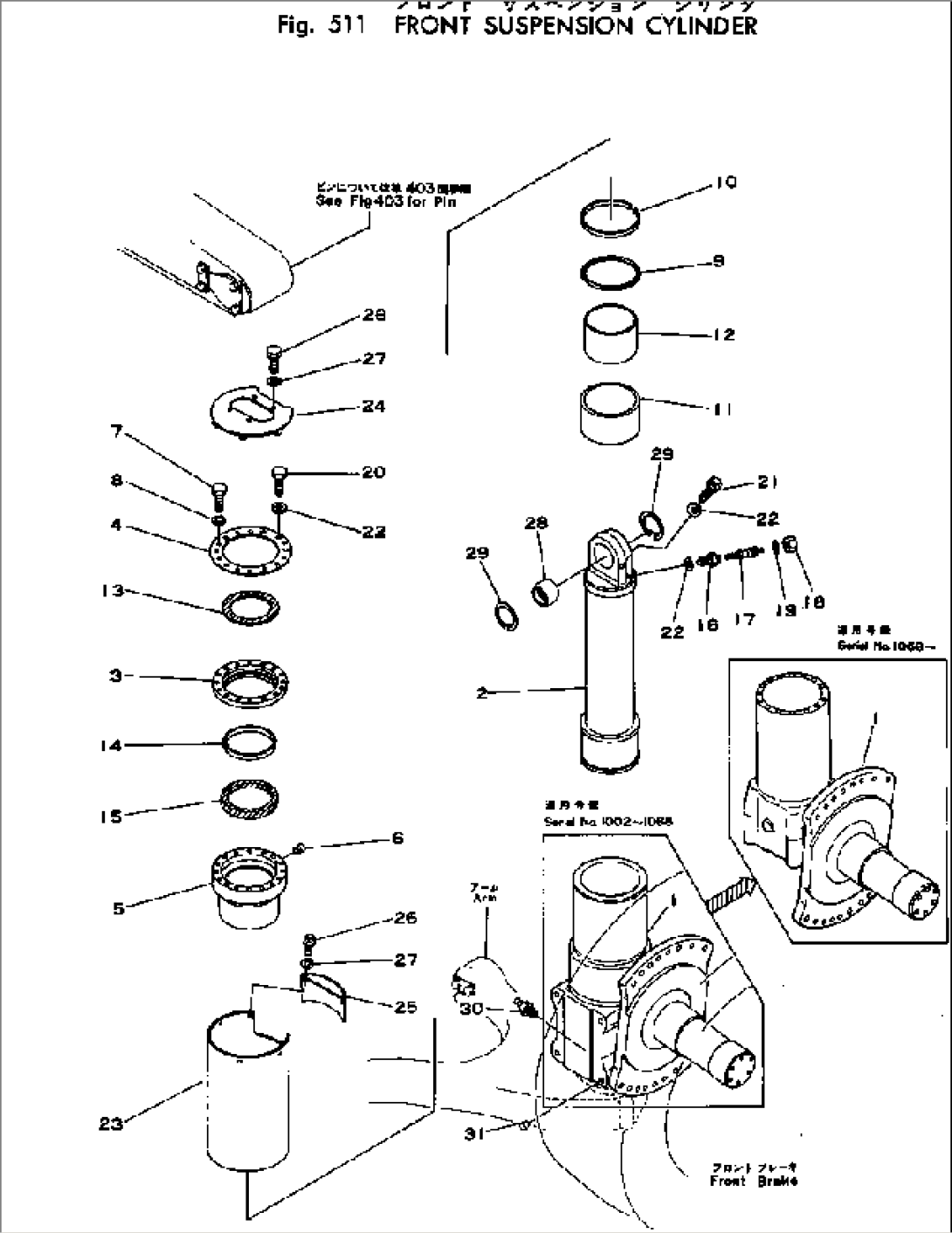

| Item | Part No. | Part Name | Qty | Serial No. |
| 569-50-11002 | CYLINDER ASS'Y | 1069- | ||
| 569-50-11001 | CYLINDER ASS'Y | 1002-1068 | ||
| 1 | 569-50-11212 | CYLINDER ASS'Y | 1069- | |
| 1 | 569-50-11200 | CYLINDER ASS'Y | 1002-1068 | |
| 2 | 569-50-11111 | ROD | 1069- | |
| 2 | 569-50-11110 | ROD | 1002-1068 | |
| 3 | 569-50-11130 | RETAINER | 1002- | |
| 4 | 569-50-11140 | PLATE | 1002- | |
| 5 | 569-50-12150 | FLANGE | 1002- | |
| 6 | 07043-00108 | PLUG | 1002- | |
| 7 | 01010-51290 | BOLT | 1002- | |
| 8 | 01602-21236 | WASHER | 1002- | |
| 9 | 07000-15210 | O-RING | 1069- | |
| 9 | \0\07000-25210 | O-RING | 1002-1068 | |
| 10 | 07001-05210 | RING | 1002- | |
| 11 | 569-50-11270 | RING | 1002- | |
| 12 | 569-50-11220 | BUSHING | 1002- | |
| 13 | 569-50-11180 | SEAL | 1002- | |
| 14 | 569-50-11340 | BUSHING | 1002- | |
| 15 | 569-50-11230 | U-PACKING | 1002- | |
| 566-50-11301 | VALVE ASS'Y | 1002- | ||
| 16 | 566-50-11320 | VALVE | 1002- | |
| 17 | 281-50-11721 | CORE | 1002- | |
| 18 | 566-50-11340 | CAP | 1002- | |
| 19 | 07000-01006 | O-RING | 1002- | |
| 20 | 566-50-11261 | VALVE | 1002- | |
| 21 | 566-50-11271 | VALVE | 1002- | |
| 22 | 566-50-11350 | PACKING | 1002- | |
| 23 | 569-50-11410 | COVER | 1002- | |
| 24 | 569-50-11420 | COVER | 1002- | |
| 25 | 569-50-11430 | COVER | 1002- | |
| 26 | 01010-51016 | BOLT | 1002- | |
| 27 | 01602-21030 | WASHER | 1002- | |
| 28 | 569-52-11160 | BUSHING | 1002- | |
| 29 | 04071-00110 | RING | 1002- | |
| 30 | 07020-00000 | FITTING | 1002- | |
| 31 | 07049-02430 | PLUG | 1002-1068 |
