| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-50-11211 | PIN | 2001- | |
| 2 | 01010-81425 | BOLT | 2001- | |
| 3 | 569-40-61710 | WASHER | 2001- | |
| 4 | 56B-50-11240 | SPACER | 2001- | |
| 5 | 56B-50-13222 | COVER | 2001- | |
| 6 | 07281-11469 | CLAMP | 2001- | |
| 7 | 566-09-6A110 | CLAMP | 2001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm350 2 s/n 2001 2218 (ecot3)
- Rim and tire
- Front suspension cylinder (l.h.) (mounting parts)(#2001 )
Поиск по каталогу

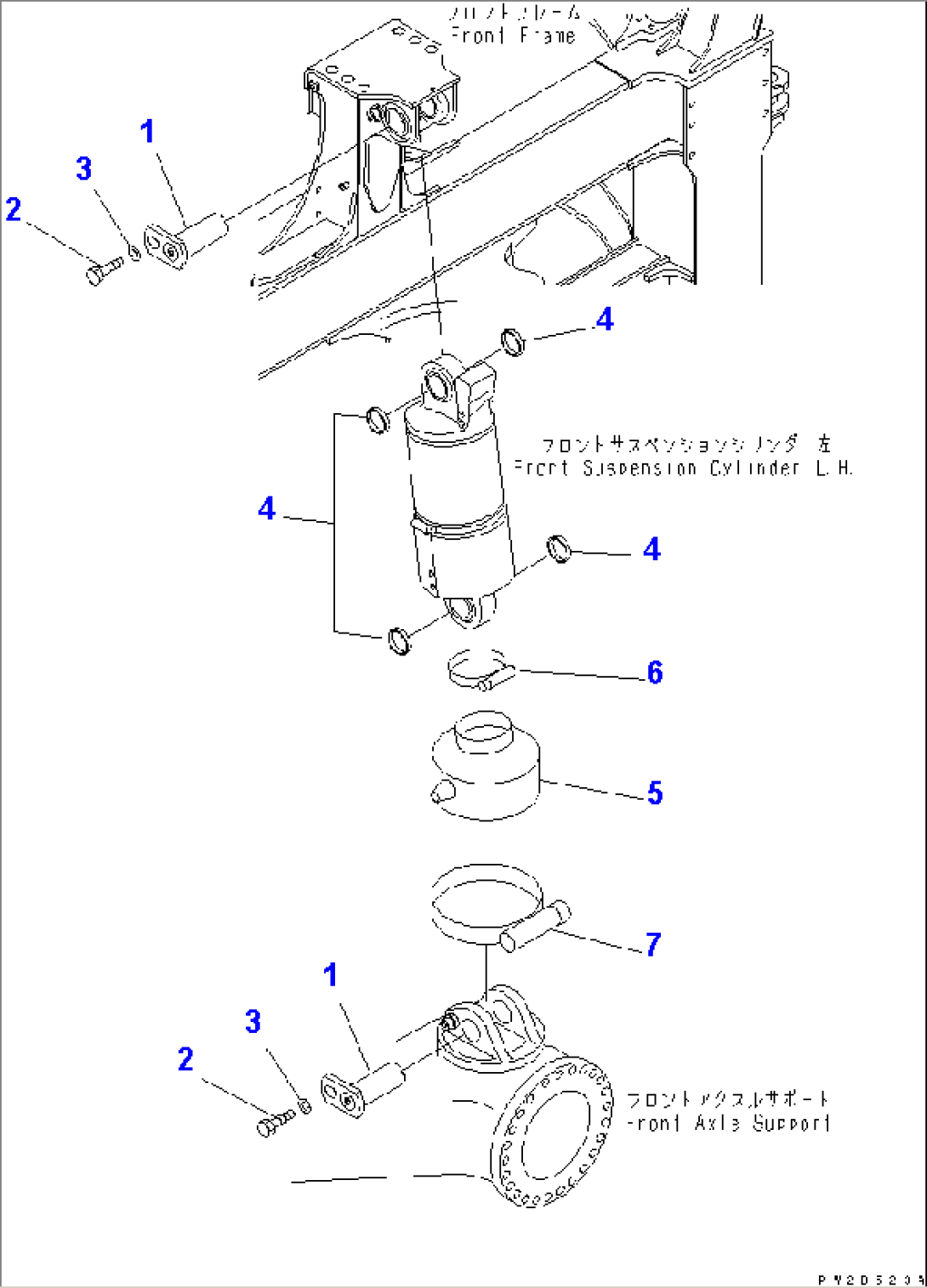

FRONT SUSPENSION CYLINDER (L.H.) (MOUNTING PARTS)(#2001-)
