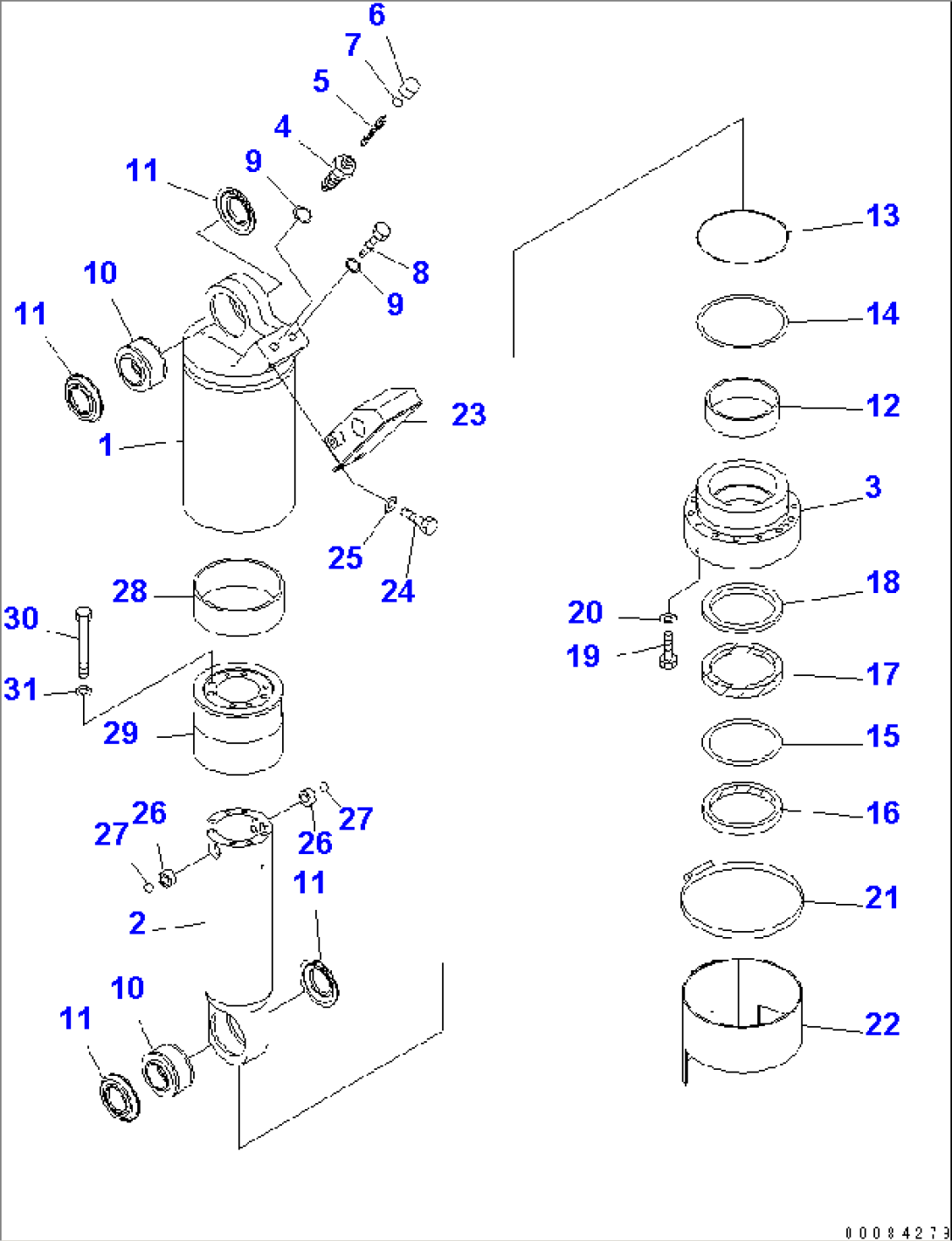

| Item | Part No. | Part Name | Qty | Serial No. |
| 56D-50-13004 | CYLINDER ASS'Y | 2589- | ||
| 56D-50-13103 | SUSPENSION | 2589- | ||
| 1 | 56D-50-13111 | CYLINDER | 2001- | |
| 2 | 56D-50-13122 | ROD | 2001- | |
| 3 | 56D-50-13162 | FLANGE | 2001- | |
| 566-50-11301 | VALVE ASS'Y | 2001- | ||
| 4 | 566-50-11320 | VALVE | 2001- | |
| 5 | 281-50-11721 | CORE | 2001- | |
| 6 | 566-50-11340 | CAP | 2001- | |
| 7 | 07000-11006 | O-RING | 2001- | |
| 8 | 566-50-11271 | VALVE | 2001- | |
| 9 | 566-50-11350 | PACKING | 2001- | |
| 10 | 567-50-11450 | BEARING | 2001- | |
| 11 | 56D-50-13250 | BOOT | 2001- | |
| 12 | 56D-50-13330 | BUSHING | 2589- | |
| 13 | 07000-15140 | O-RING | 2001- | |
| 14 | 07001-05140 | RING | 2001- | |
| 15 | 56D-50-13180 | RING | 2001- | |
| 16 | 56D-50-13190 | SEAL | 2001- | |
| 17 | 56D-50-13171 | PACKING | 2001- | |
| 18 | 707-51-11650 | RING | 2001- | |
| 19 | 01010-81070 | BOLT | 2001- | |
| 20 | 01643-51032 | WASHER | 2001- | |
| 21 | 07281-12169 | CLAMP | 2001- | |
| 22 | 56D-50-13240 | GUARD | 2001- | |
| 23 | 56D-50-13210 | COVER | 2001- | |
| 24 | 01010-81020 | BOLT | 2001- | |
| 25 | 01643-31032 | WASHER | 2001- | |
| 26 | 567-50-41290 | BOSS | 2001- | |
| 27 | 04260-01270 | BALL | 2001- | |
| 28 | 56D-50-13221 | RING | 2001- | |
| 29 | 56D-50-13151 | PISTON | 2001- | |
| 30 | 01011-81000 | BOLT | 2001- | |
| 31 | 01643-51032 | WASHER | 2001- |
