| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-50-13230 | PIN | 1001- | |
| 2 | 01010-81225 | BOLT | 1001- | |
| 3 | 175-54-34170 | WASHER | 1001- | |
| 4 | 56D-50-11210 | SPACER | 1001- | |
| 5 | 56D-50-13260 | COVER | 1001- | |
| 6 | 07281-11159 | CLAMP | 1001- | |
| 7 | 07281-12429 | CLAMP | 1001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm300 1 s/n 1001 up
- Rim and tire
- Front suspension cylinder¤ r.h. (mounting parts)
Поиск по каталогу

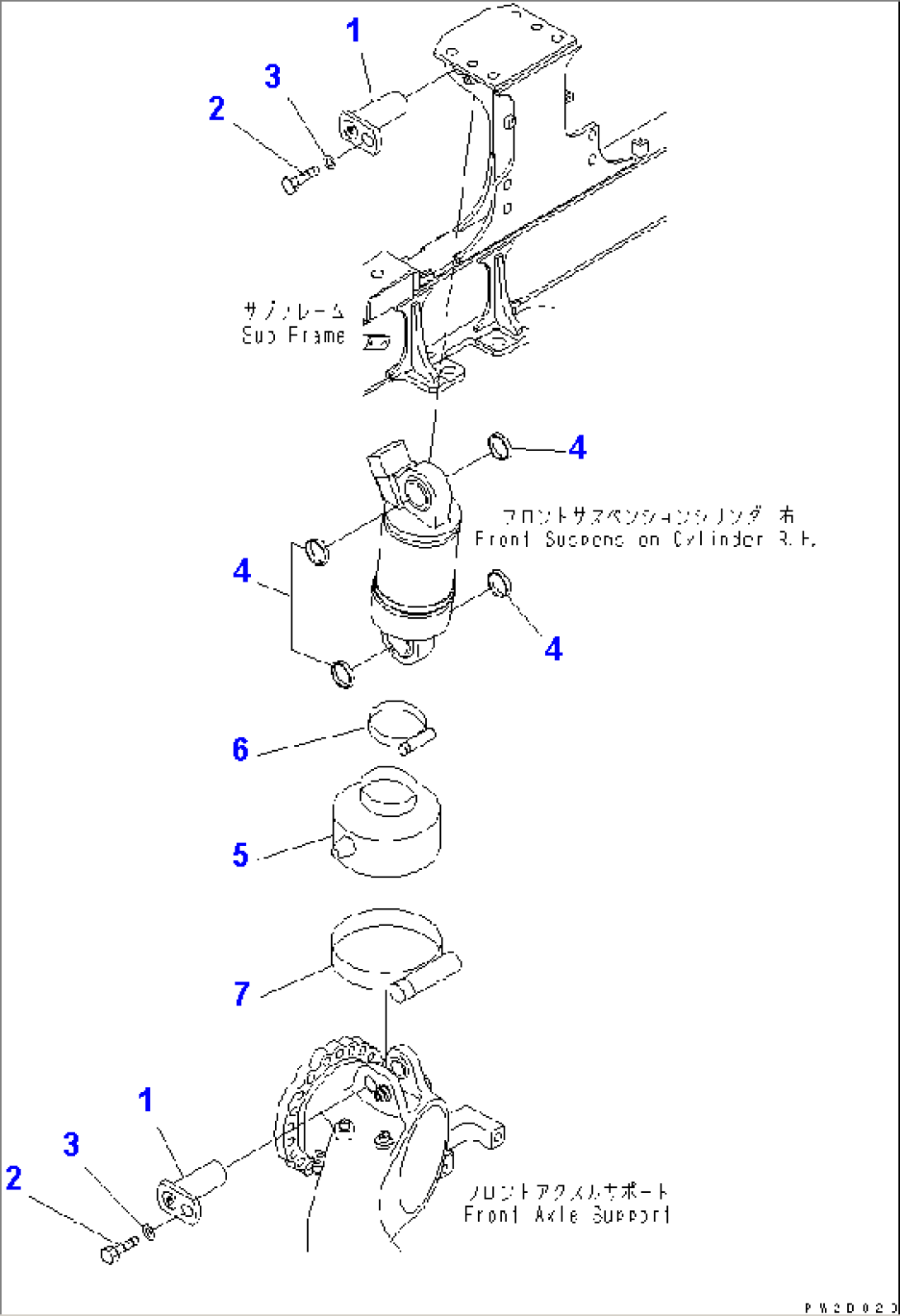

FRONT SUSPENSION CYLINDER¤ R.H. (MOUNTING PARTS)
