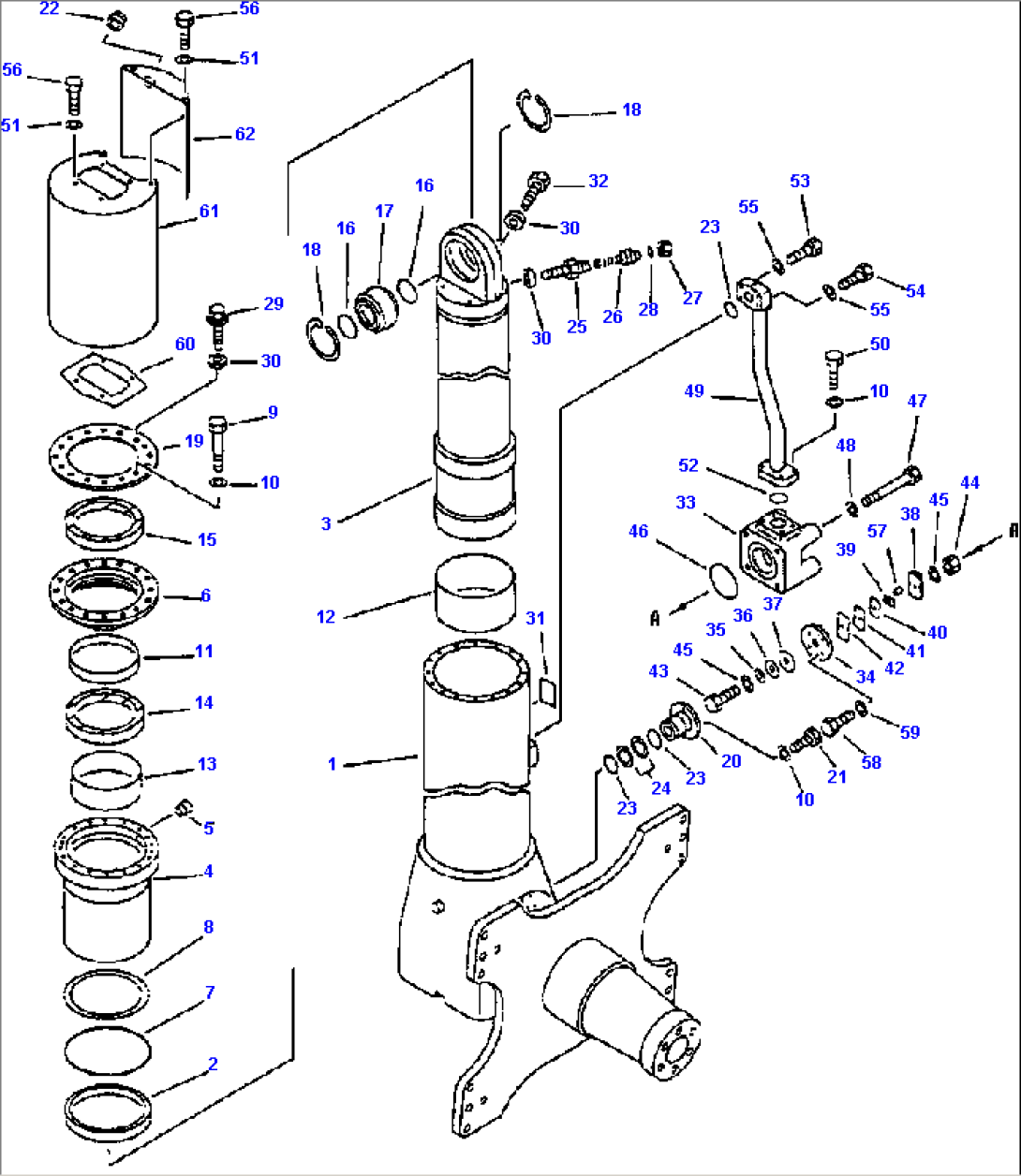

FRONT SUSPENSION (EJ8722)

Item	Part No.	Part Name	Qty	Serial No.
1	561-88-66500	CYLINDER
2	561-50-61412	STOPPER
3	561-50-A1131	ROD, FRONT
4	561-50-65140	FLANGE
5	07043-00108	PLUG
6	569-50-11131	RETAINER
7	07000-55210	O-RING
8	07001-05210	RING
9	01011-81205	CAPSCREW
10	01643-51232	WASHER
11	569-50-11340	BUSHING
12	569-50-11271	RING, WEAR
13	569-50-11220	BUSHING
14	561-50-65110	U-PACKING
14	561-50-65120	PACKING
15	561-50-61370	SEAL
16	07000-52070	O-RING
17	569-52-41920	BUSHING
18	04065-01104	RING, SNAP
19	569-50-11141	PLATE
20	561-50-61321	TUBE
21	01010-81225	CAPSCREW
22	09415-03614	CAP (2)
23	07000-53045	O-RING
24	07001-03045	RING
25	566-50-11320	VALVE (1)
26	281-50-11721	CORE (1)
27	566-50-11340	CAP (1)
28	07000-01006	O-RING (1)
29	566-50-21260	VALVE
30	566-50-11350	PACKING
31	566-50-41310	PLATE (2)
32	566-50-11271	VALVE
33	569-50-61212	BODY
34	561-50-61331	PLATE
35	569-50-61240	PLATE
36	569-50-61250	PLATE
37	569-50-61260	PLATE
38	569-50-61270	PLATE
39	569-50-61340	PLATE
40	569-50-61350	PLATE
41	569-50-61360	PLATE
42	569-50-61370	PLATE
43	01090-51045	CAPSCREW
44	426-09-11160	NUT, LOCKING
45	561-50-61290	WASHER
46	07000-52125	O-RING
47	01011-61645	CAPSCREW
48	01643-31645	WASHER
49	561-50-61311	TUBE
50	07372-21240	CAPSCREW
51	01643-51032	WASHER (2)
52	07000-53048	O-RING
53	01010-81265	CAPSCREW
54	01010-81255	CAPSCREW
55	01643-31232	WASHER
56	01010-81020	CAPSCREW
57	04020-00514	PIN
58	01010-81030	CAPSCREW
59	01643-51032	WASHER
60	561-50-61191	RUBBER (2)
61	561-50-63171	COVER (2)
62	561-50-63181	COVER (2)
NS\|64		NOTE: (1) INCLUDED IN 566-50-11301 VALVE ASSEMBLY.
NS\|65		(2) NOT INCLUDED IN FRONT SUSPENSION ASSEMBLY.
