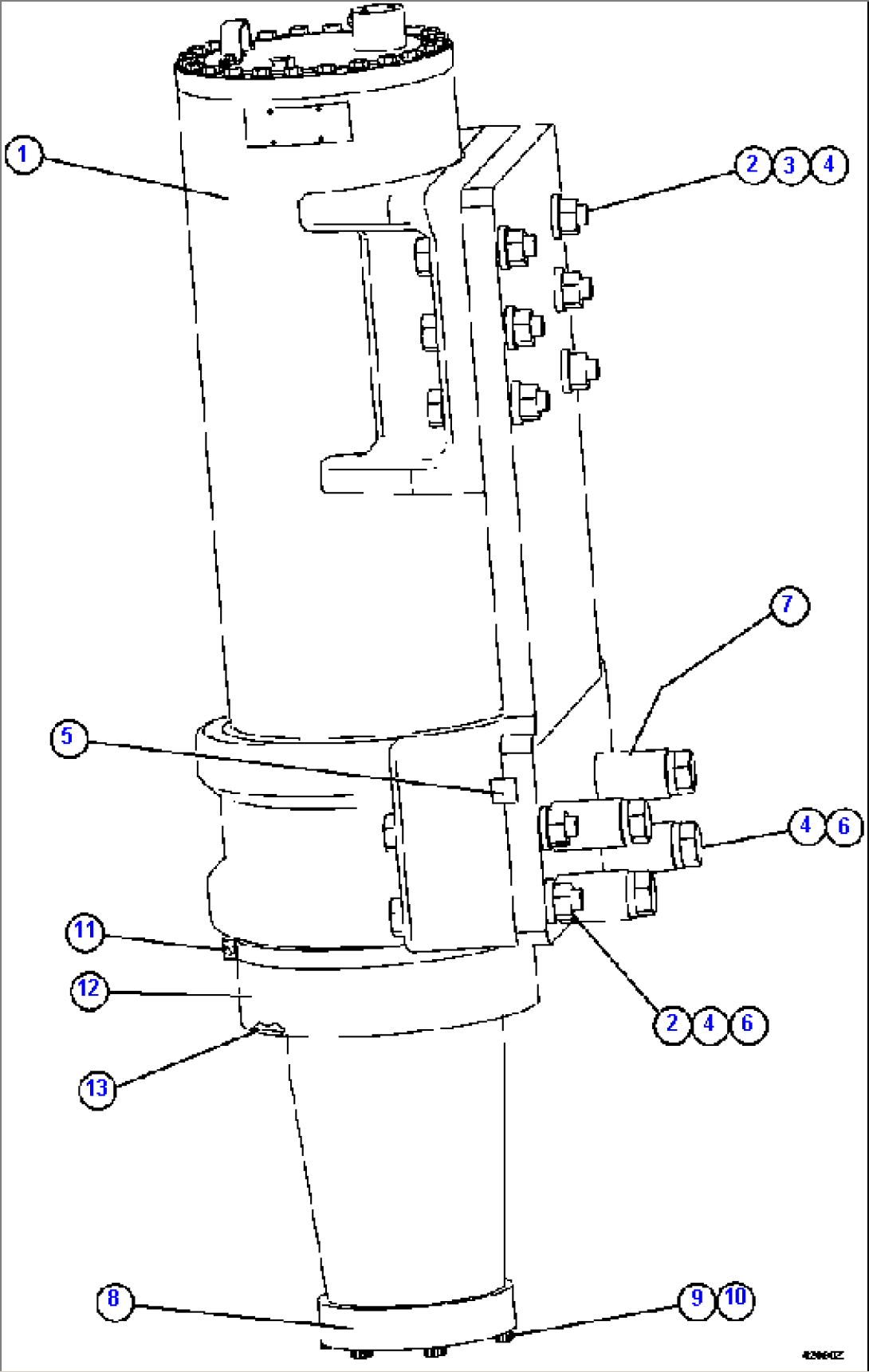

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XB4385 | FRONT SUSPENSION ASSEMBLY (SEE INDEX) | ||
| 2 | WA0404 | NUT - 1 1/2" - 6NC | ||
| 3 | VN9193 | CAPSCREW - 1 1/2" - 6NC X 6 1/2" | ||
| 4 | WA0368 | FLAT WASHER - 1 1/2" | ||
| 5 | TX9708 | KEY, SHEAR | ||
| 6 | EL5423 | CAPSCREW - 1 1/2" - 6NC X 13" | ||
| 6 | EL5423 | CAPSCREW - 1 1/2" - 6NC X 13" | ||
| 7 | EL7296 | SPACER | ||
| 8 | TY2228 | PLATE, RETAINER | ||
| 9 | WA4817 | CAPSCREW - 1 1/4" - 12NF X 5" (12 PT) | ||
| 10 | TY2149 | FLAT WASHER - 1 1/4" | ||
| 11 | WA2955 | CLAMP, WORM DRIVE | ||
| 12 | TY9252 | BOOT | ||
| 13 | TY9253 | WIRE |
