| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-50-11210 | PIN | A10001- | |
| 2 | 01010-81425 | BOLT | A10001- | |
| 3 | 569-40-61710 | WASHER | A10001- | |
| 4 | 56B-50-11240 | SPACER | A10001- | |
| 5 | 56B-50-13221 | COVER | A10001- | |
| 6 | 07281-11469 | CLAMP | A10001- | |
| 7 | 566-09-6A110 | CLAMP | A10001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm400 1l s/n a10001 up
- Rim and tire
- Front suspension (r.h.) (mounting parts)
Поиск по каталогу

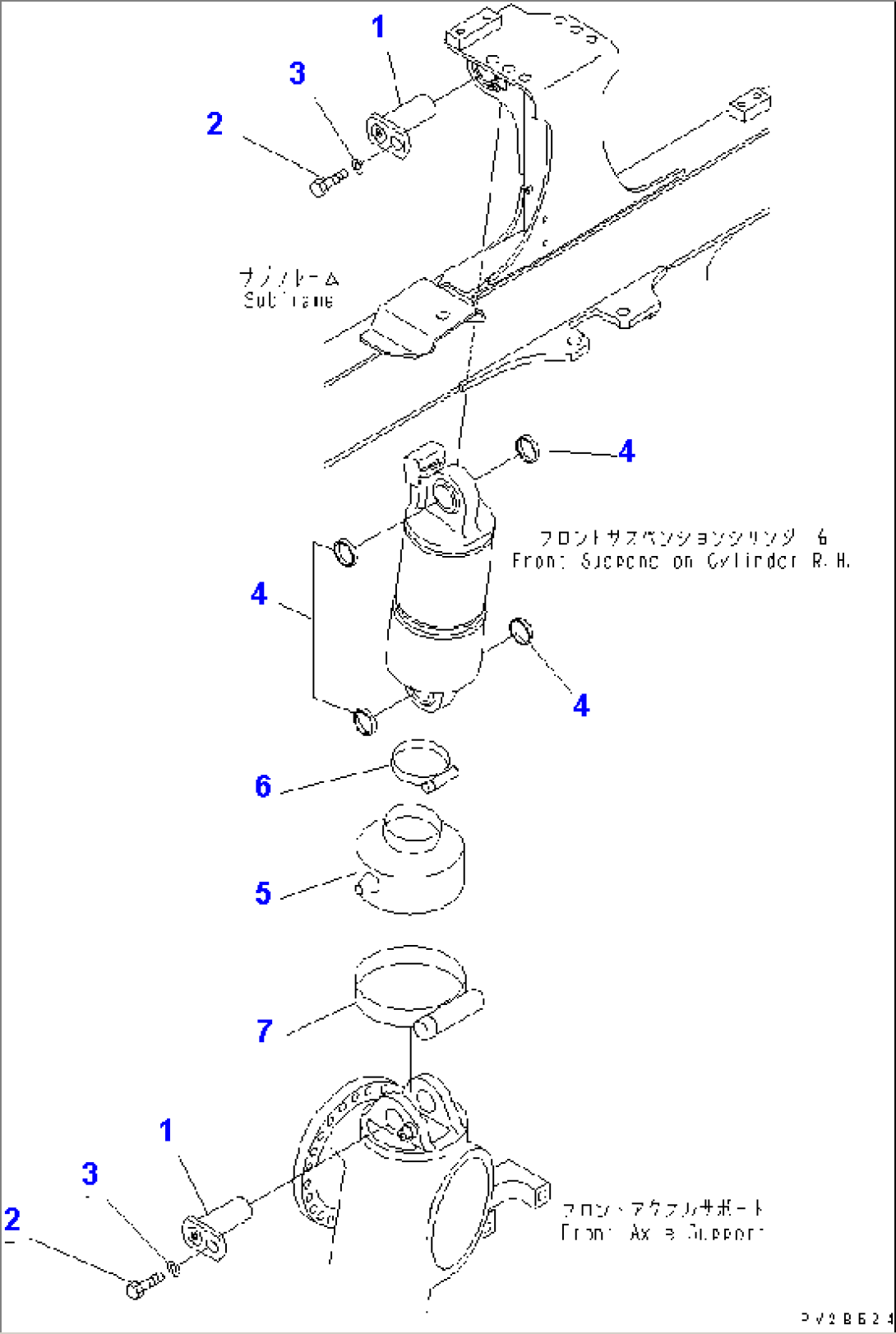

FRONT SUSPENSION (R.H.) (MOUNTING PARTS)
