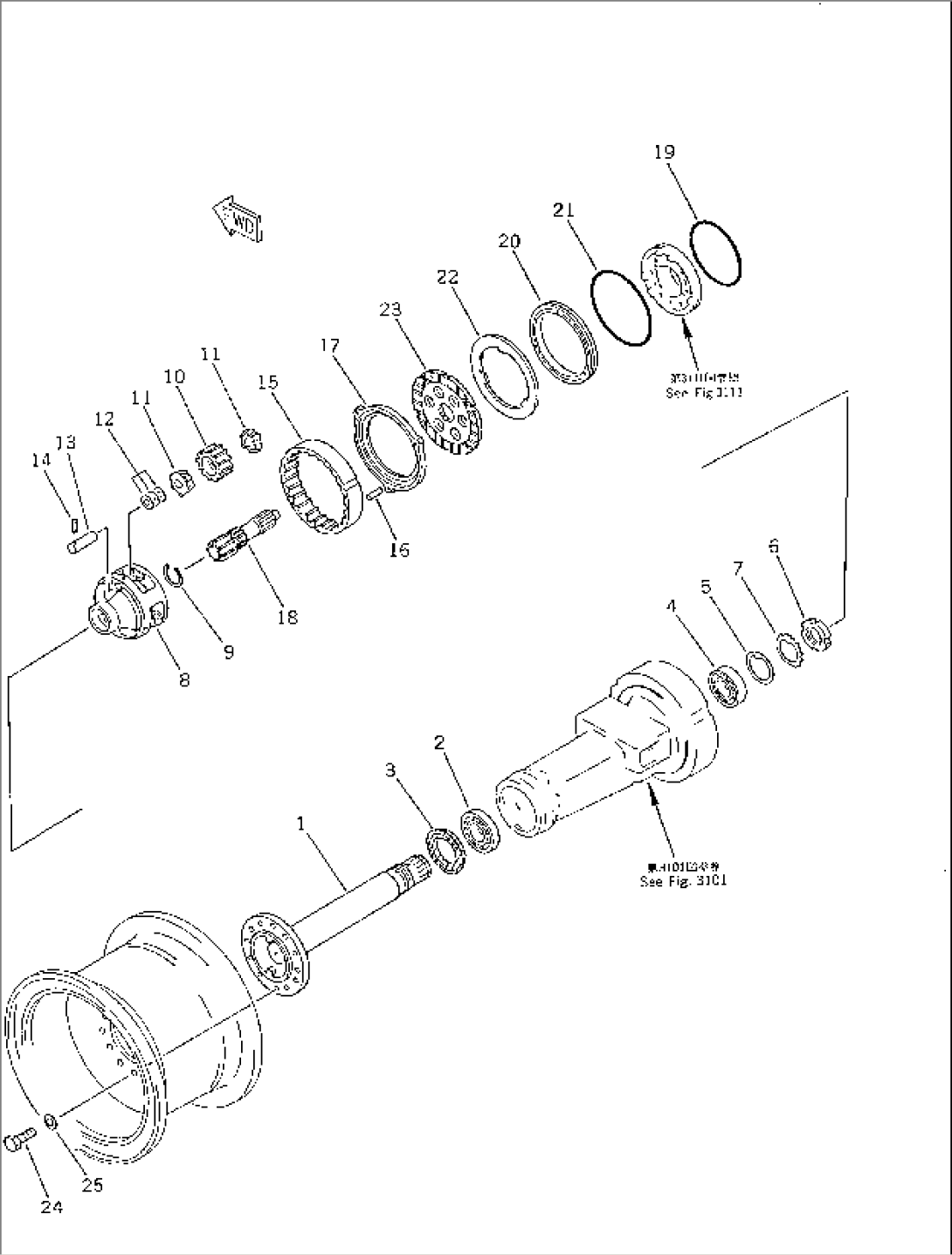

| Item | Part No. | Part Name | Qty | Serial No. |
| (417-22-10012) | AXLE ASS'Y,FRONT | 12001- | ||
| (417-22-10011) | AXLE ASS'Y,FRONT | .-11999 | ||
| (417-22-10010) | AXLE ASS'Y,FRONT | 10001-. | ||
| 1 | 418-22-12411 | SHAFT | 12001- | |
| 1 | 418-22-12410 | SHAFT | 10001-11999 | |
| 2 | 418-22-12850 | BEARING | 10001- | |
| 3 | 418-22-12460 | SEAL | 10001- | |
| 4 | 418-22-12840 | BEARING | 10001- | |
| 5 | 418-22-12650 | WASHER | 10001- | |
| 6 | 418-22-12630 | NUT | 10001- | |
| 7 | 418-22-12641 | WASHER | 10001- | |
| 8 | 418-22-12610 | CARRIER | 10001- | |
| 9 | 418-22-12470 | RING,SNAP | 10001- | |
| 10 | 418-22-12531 | GEAR | 10001- | |
| 11 | 417-22-12810 | BEARING,CONE | 10001- | |
| 12 | 419-22-12260 | SHIM, 1.0MM | 10001- | |
| 12 | 419-22-12270 | SHIM, 1.2MM | 10001- | |
| 12 | 419-22-12280 | SHIM, 1.4MM | 10001- | |
| 13 | 418-22-12510 | SHAFT | 10001- | |
| 14 | 419-22-12570 | PIN | 10001- | |
| 15 | 418-22-12540 | GEAR | 10001- | |
| 16 | 419-22-12581 | PIN | 10001- | |
| 17 | 418-33-11260 | PLATE | 10001- | |
| 18 | 418-22-12422 | SHAFT | 12001- | |
| 18 | 418-22-12421 | SHAFT | 10001-11999 | |
| 19 | 417-33-11420 | O-RING | 10001- | |
| 20 | 417-33-11122 | PISTON | 10001- | |
| 21 | 417-33-11410 | O-RING | 10001- | |
| 22 | 418-33-11251 | PLATE | 12001- | |
| 22 | 418-33-11250 | PLATE | 10001-11999 | |
| 23 | 418-33-11240 | DISC | 10001- | |
| 24 | 419-22-12870 | BOLT | 10001- | |
| 25 | 01643-32460 | WASHER | 10001- |
