| Item | Part No. | Part Name | Qty | Serial No. |
| (417-22-20001) | AXLE ASS'Y,FRONT | 60001- | ||
| (\2\417-22-20000) | AXLE ASS'Y,FRONT | (60001-.) | ||

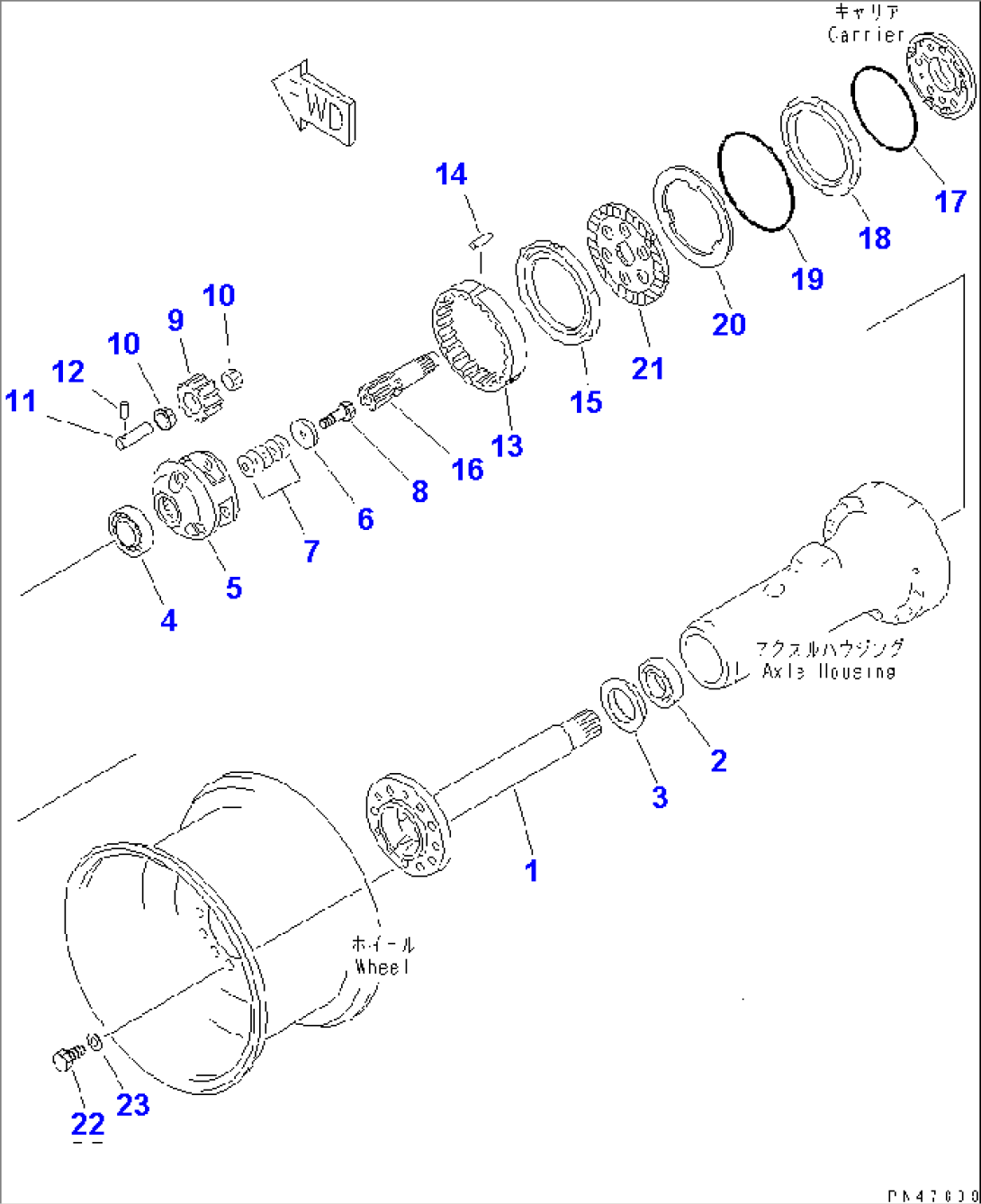

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3101 TO 3121. | ||||
| 1 | 416-22-22410 | SHAFT | 60001- | |
| 2 | 417-22-12850 | BEARING | 60001- | |
| 3 | 417-22-12460 | SEAL | 60001- | |
| 4 | 417-22-12840 | BEARING | 60001- | |
| 5 | 417-22-22610 | CARRIER | 60001- | |
| 6 | 417-22-12350 | SPACER | 60001- | |
| 7 | 417-22-12360 | SHIM¤ 0.05MM | 60001- | |
| 417-22-12370 | SHIM¤ 0.2MM | 60001- | ||
| 417-22-12380 | SHIM¤ 0.3MM | 60001- | ||
| 417-22-12390 | SHIM¤ 0.8MM | 60001- | ||
| 8 | 01010-61685 | BOLT | 60001- | |
| 9 | 417-22-22530 | GEAR | 60001- | |
| 10 | 417-22-22810 | BEARING,CONE | 60001- | |
| 11 | 417-22-12510 | SHAFT | 60001- | |
| 12 | 419-22-12570 | PIN | 60001- | |
| 13 | 417-22-12540 | GEAR | 60001- | |
| 14 | 417-22-12580 | PIN | 60001- | |
| 15 | 417-33-11262 | PLATE | 60001- | |
| 16 | 417-22-12421 | SHAFT | 60001- | |
| 17 | 417-33-11420 | O-RING | 60001- | |
| 18 | 417-33-11122 | PISTON | 60001- | |
| 19 | 417-33-11410 | O-RING | 60001- | |
| 20 | 417-33-11252 | PLATE | 60001- | |
| 21 | 417-33-11290 | DISC | 60001- | |
| (\2\417-33-11243) | DISC | (60001-.) | ||
| 22 | 417-22-12910 | BOLT | 60001- | |
| 23 | 01643-32460 | WASHER | 60001- |
