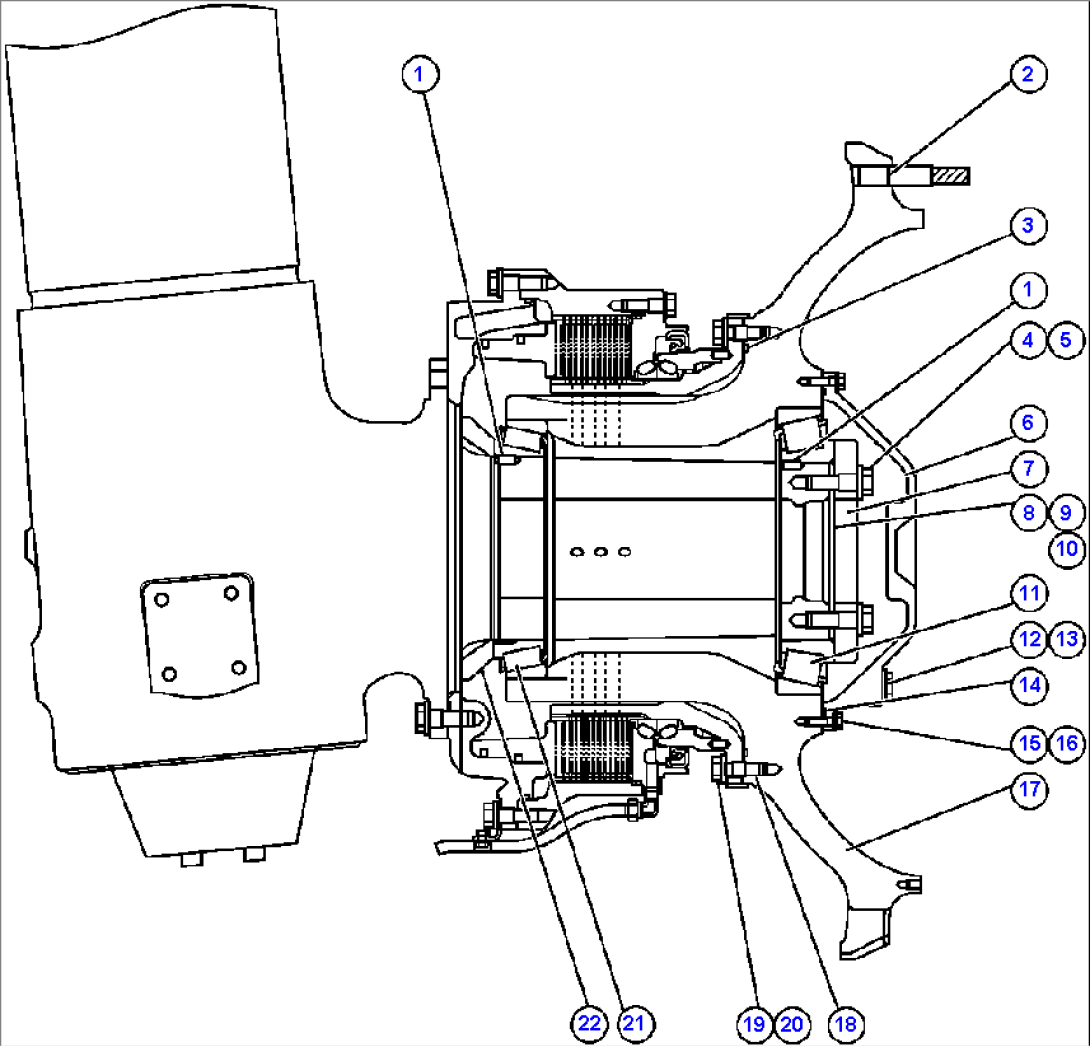

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 562-22-32290 | PIN (1) | ||
| 2 | 562-22-32910 | STUD | ||
| 3 | 568-22-12810 | O-RING (1) | ||
| 4 | 01010-62475 | CAPSCREW | ||
| 5 | 01643-32460 | WASHER | ||
| 6 | 562-27-31230 | CAP, HUB | ||
| 7 | 562-27-31130 | RETAINER | ||
| 8 | 562-27-31160 | SHIM (1) | ||
| 9 | 562-27-31170 | SHIM (1) | ||
| 10 | 562-27-31180 | SHIM (1) | ||
| 11 | 562-27-31910 | BEARING | ||
| 12 | 07044-13620 | PLUG | ||
| 13 | 07002-03634 | O-RING (1) | ||
| 14 | 07000-05465 | O-RING (1) | ||
| 15 | 01010-81240 | CAPSCREW | ||
| 16 | 01643-51232 | WASHER | ||
| 17 | 562-27-31211 | HUB, FRONT WHEEL | ||
| 18 | 01144-82050 | STUD | ||
| 19 | 01643-32060 | WASHER | ||
| 20 | 01580-12016 | NUT | ||
| 21 | 562-27-31920 | BEARING | ||
| 22 | 562-27-31140 | RETAINER | ||
| NS|23 | AK3886 | NOTE: (1) INCLUDED IN AK3886 FRONT SPINDLE | ||
| NS|24 | REBUILD KIT. | |||
| NS|25 | (QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) |
