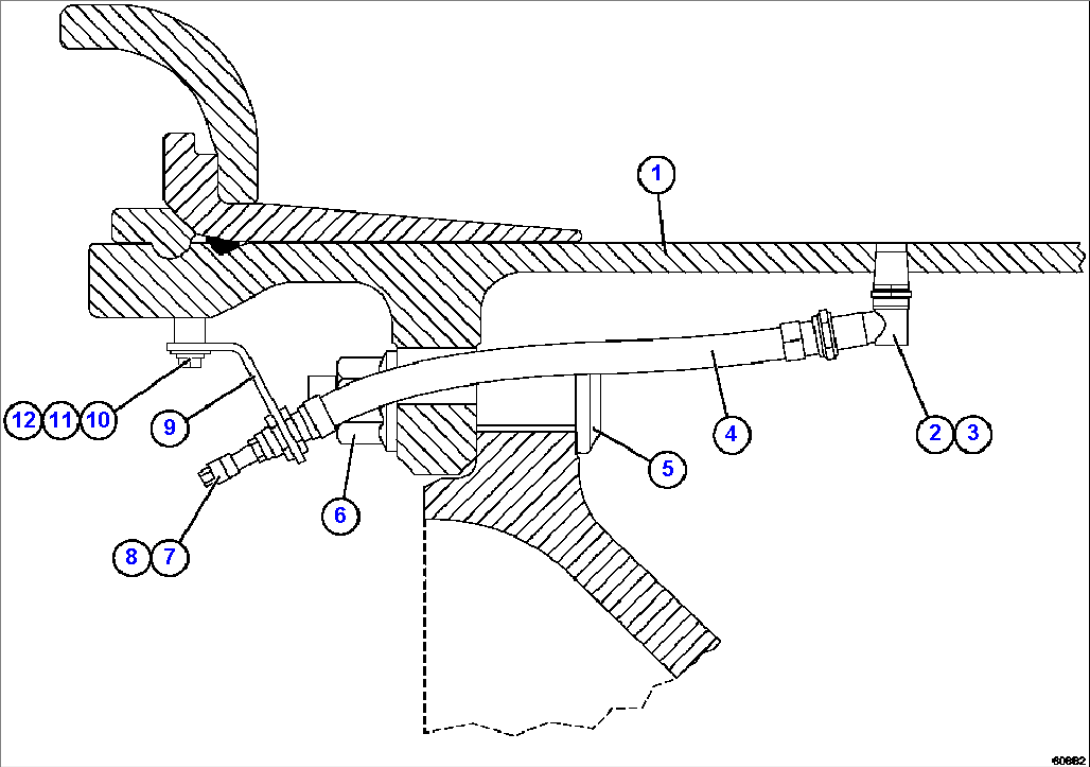

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | AK5177 | RIM - 63" X 41" (SEE FIG 56033) | ||
| 2 | PC0579 | CONNECTOR, SWIVEL NUT | ||
| 3 | PC0580 | SPUD, COLLIE | ||
| 4 | PC1826 | EXTENSION, FLEXIBLE | ||
| 5 | EK4352 | STUD - 1 1/4" - 7NC | ||
| 6 | WB1134 | NUT - 1 1/4" - 7NC | ||
| 7 | PC0583 | HOUSING, CORE (WITH VALVE CAP) | ||
| 8 | (NOT USED IN THIS APPLICATION) | |||
| 9 | EL2322 | PLATE, BENT | ||
| 10 | C1601 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 11 | C1547 | FLAT WASHER - 3/8" | ||
| 12 | C0312 | LOCKWASHER - 3/8" | ||
| 12 | (QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) |
