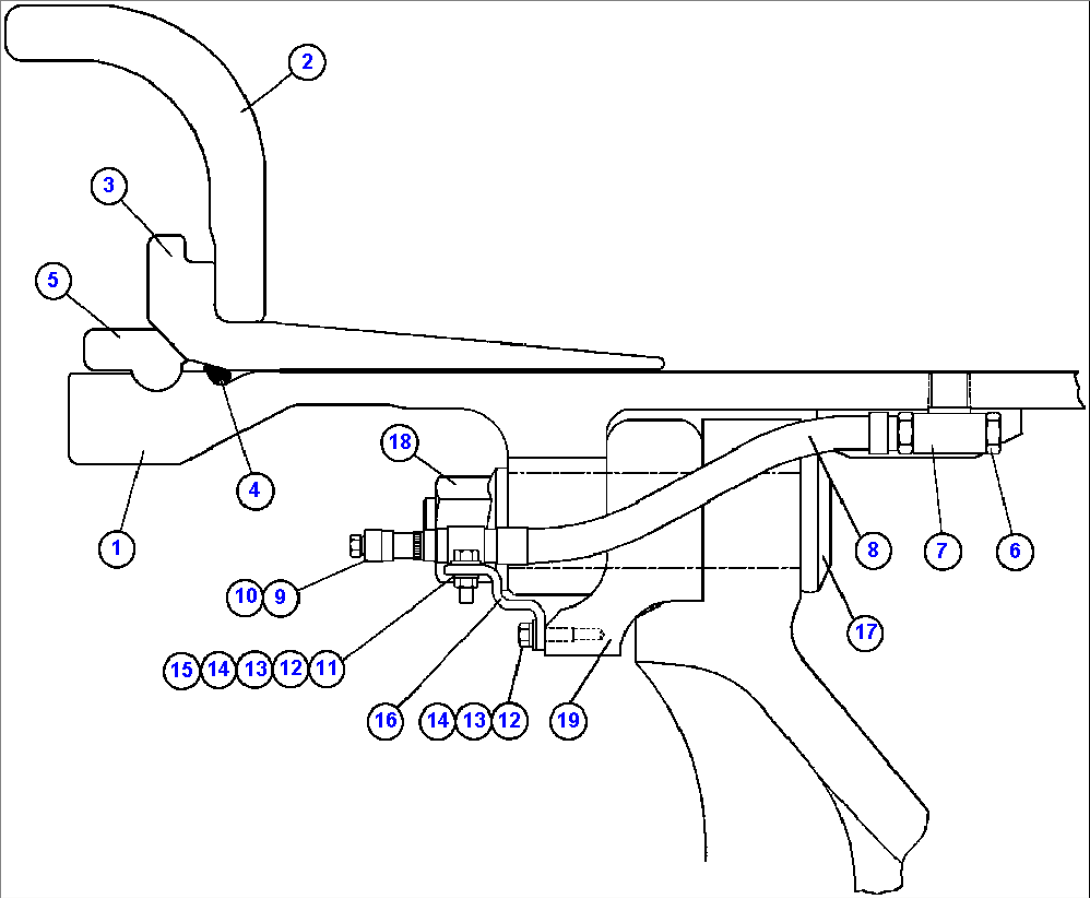

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | AK4058 | RIM - 57" X 32" | ||
| 2 | AK7754 | RING, FORGED - 1" X 6 1/2" | ||
| 3 | AK8010 | BAND, BEAD SEAT - 57" | ||
| 4 | PB6512 | O-RING | ||
| 5 | AK8014 | RING, LOCK - 57" | ||
| 6 | PB8881 | PLUG | ||
| 7 | PB8882 | SPUD, DOUBLE | ||
| 8 | PB8885 | EXTENSION, FLEXIBLE - 10 3/4" | ||
| 9 | VJ8012 | HOUSING, CORE | ||
| 10 | WA2670 | CAP, VALVE | ||
| 11 | WA4649 | CLAMP | ||
| 12 | S5716 | CAPSCREW - 1/4" - 20NC X 7/8" | ||
| 13 | VN9773 | FLAT WASHER - 1/4" | ||
| 14 | C5774 | LOCKWASHER - 1/4" | ||
| 15 | C5780 | NUT - 1/4" | ||
| 16 | ED4083 | PLATE, BENT | ||
| 17 | EC9962 | STUD, HEADED | ||
| 18 | WA5657 | NUT, FLANGED - 1 1/4" - 12 NF | ||
| 19 | EG7678 | SPACE |
