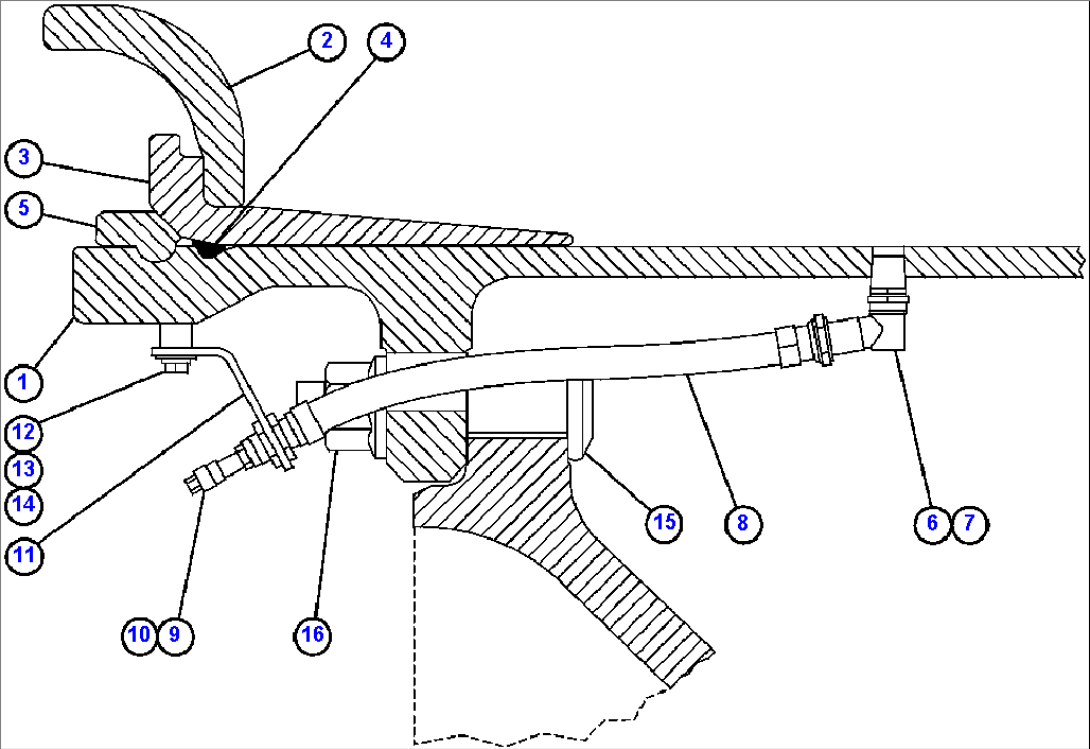

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | RIM - 63" X 32" (1) | |||
| 2 | RING, FORGED - 1" X 5" (1) | |||
| 3 | BAND, BEAD SEAT - 63" (1) | |||
| 4 | O-RING - 63" (1) | |||
| 5 | RING, LOCK - 63" (1) | |||
| 6 | CONNECTOR, SWIVEL (1) | |||
| 7 | SPUD, COLLIER (1) | |||
| 8 | EXTENSION, FLEXIBLE - 10 3/4" (1) | |||
| 9 | PC0583 | HOUSING, CORE | ||
| 10 | CAP, VALVE (1) | |||
| 11 | BRACKET (1) | |||
| 12 | CAPSCREW - 3/8" - 16NC X 3/4" (1) | |||
| 13 | FLAT WASHER - 3/8" (1) | |||
| 14 | LOCKWASHER - 3/8" (1) | |||
| 15 | EH0826 | STUD - HEADED | ||
| 16 | WB1134 | NUT - 1 1/4" - 7NC | ||
| NS|17 | NOTE: (1) WHEEL ASSEMBLY PARTS TO BE | |||
| NS|18 | SUPPLIED BY CUSTOMER. |
