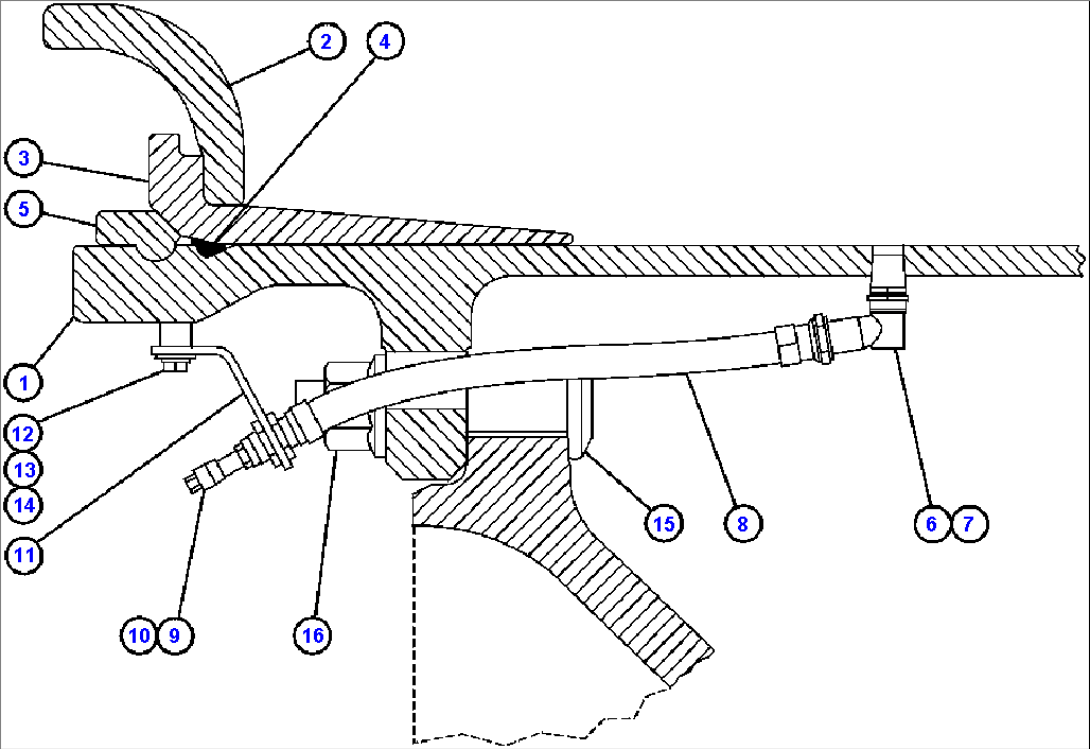

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | AK4494 | RIM - 63" X 36" | ||
| 2 | AK4137 | RING, SIDE | ||
| 3 | AK4163 | BAND, BEAD SEAT - 63" | ||
| 4 | WB1139 | O-RING - 63" | ||
| 5 | AK4161 | RING, LOCK - 63" | ||
| 6 | PC0579 | CONNECTOR, SWIVEL | ||
| 7 | PC0580 | SPUD, COLLIE | ||
| 8 | PC0581 | EXTENSION, FLEXIBLE | ||
| 9 | PC0583 | HOUSING, CORE | ||
| 10 | WA2670 | CAP, VALVE | ||
| 11 | EJ2283 | BRACKET | ||
| 12 | C1601 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 13 | C1547 | FLAT WASHER - 3/8" | ||
| 14 | C0312 | LOCKWASHER - 3/8" | ||
| 15 | EH0826 | STUD - HEADED | ||
| 16 | WB1134 | NUT - 1 1/4" - 7NC | ||
| 16 | (QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) |
