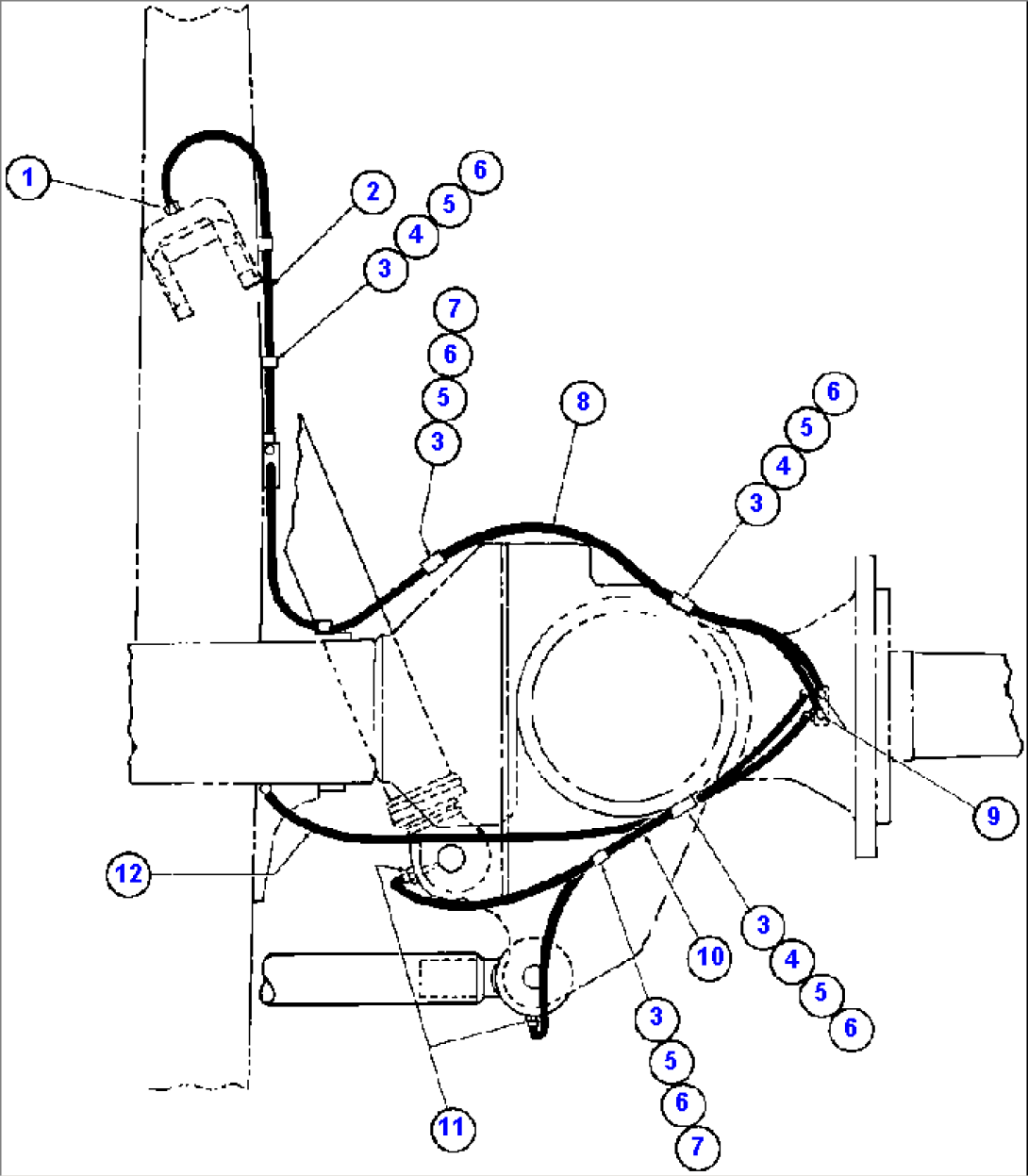

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | WB0454 | FITTING, ADAPTOR | ||
| 2 | HA0481 | HOSE | ||
| 3 | VN9907 | CLAMP | ||
| 4 | VH9969 | WELD STUD - 3/8" - 16NC X 3/4" | ||
| 5 | C0312 | LOCKWASHER - 3/8" | ||
| 6 | C1521 | NUT - 3/8" - 16NC | ||
| 7 | C8558 | CAPSCREW - 3/8" - 16NC X 3 1/4" | ||
| 8 | HA0352 | HOSE | ||
| 9 | WB0501 | FITTING, O-RING - 90 DEG | ||
| 10 | VW8099 | HOSE | ||
| 11 | WB0252 | ELBOW - 90 DEG | ||
| 12 | HA5564 | HOSE, SUPPLY (SEE FRONT BRAKE PIPING PG) | ||
| 12 | C1597 | FITTING, GREASE |
