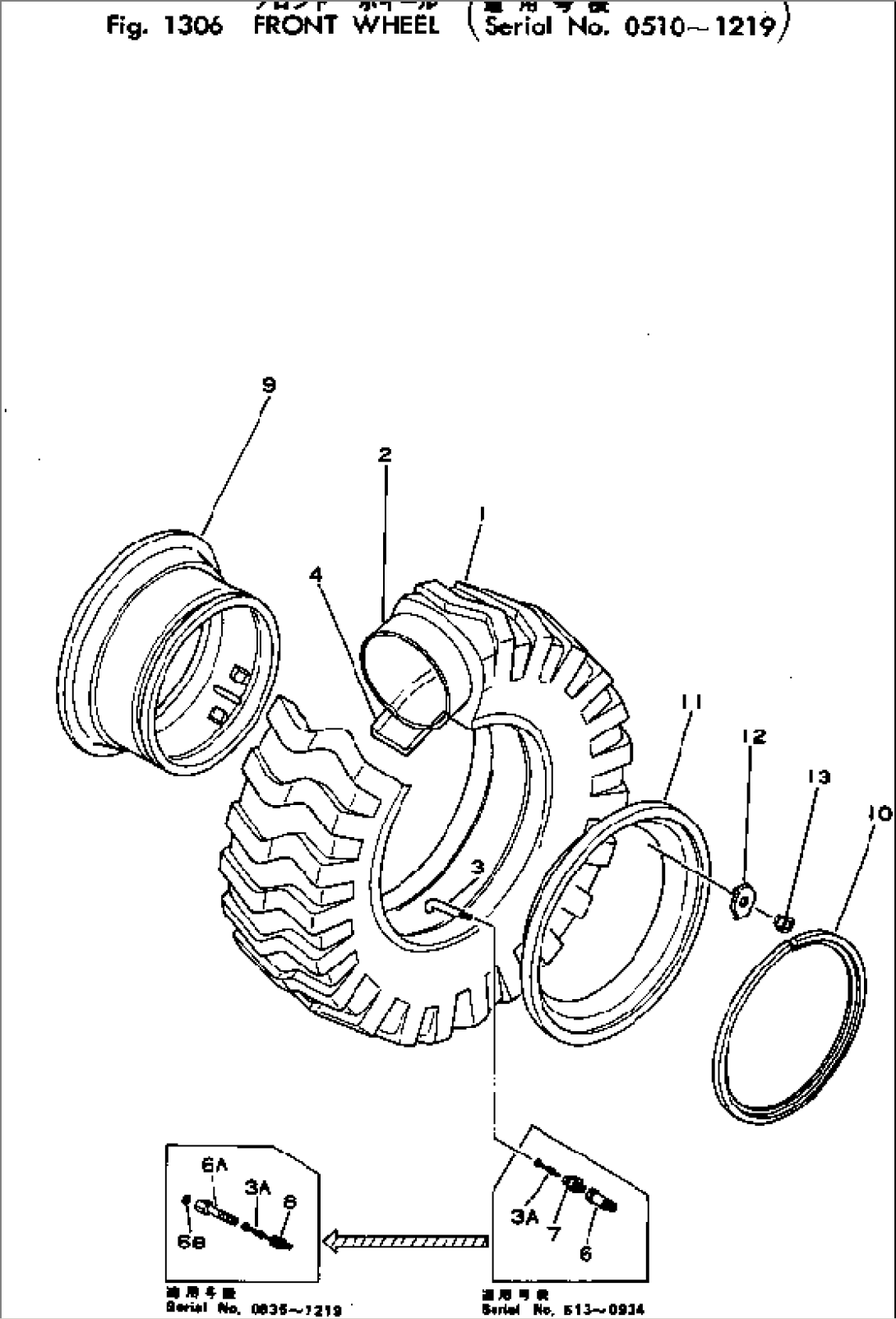

| Item | Part No. | Part Name | Qty | Serial No. |
| 565-30-11001 | FRONT WHEEL ASS'Y,(WITH TUBE) | 510-1219 | ||
| 565-30-11010 | TIRE ASS'Y | 510-1219 | ||
| 1 | 565-30-11110 | TIRE | 510-1219 | |
| 565-30-00030 | TUBE ASS'Y | 510-1219 | ||
| 2 | \6\ | TUBE | 510-1219 | |
| 3 | \6\ | VALVE | 935-1219 | |
| \6\ | VALVE | 510-934 | ||
| 3A | 565-30-11191 | CORE | 510-@ | |
| (\2\565-30-11190) | CORE | (935-1135) | ||
| (\2\09281-00041) | CORE | (510-934) | ||
| 4 | 565-30-11130 | FLAP | 510-1219 | |
| 6 | \3\565-30-11170 | EXTENSION | 510-934 | |
| (565-30-11171(1){09282-00022(1))} | ||||
| 6A | 565-30-11171 | EXTENSION | 935-1219 | |
| 6B | 565-30-11280 | PACKING | 935-1219 | |
| 7 | 565-30-11160 | ADAPTER | 510-934 | |
| 8 | 09282-00022 | CAP | 935-@ | |
| 565-30-11022 | RIM ASS'Y | 510-1219 | ||
| 9 | 565-30-11212 | RIM | 510-1219 | |
| 10 | 573-30-11220 | RING | 510-@ | |
| 11 | 573-30-11230 | RING | 510-@ | |
| 12 | 565-30-11310 | CLAMP | 510-@ | |
| 13 | 566-22-12741 | NUT | 1220-@ | |
| \0\566-22-12740 | NUT | 510-1219 | ||
| 565-30-05011 | SERVICE KIT | 510-1219 | ||
| 565-30-11191 | CORE | 510-1219 | ||
| 565-30-11280 | PACKING | 510-1219 |
