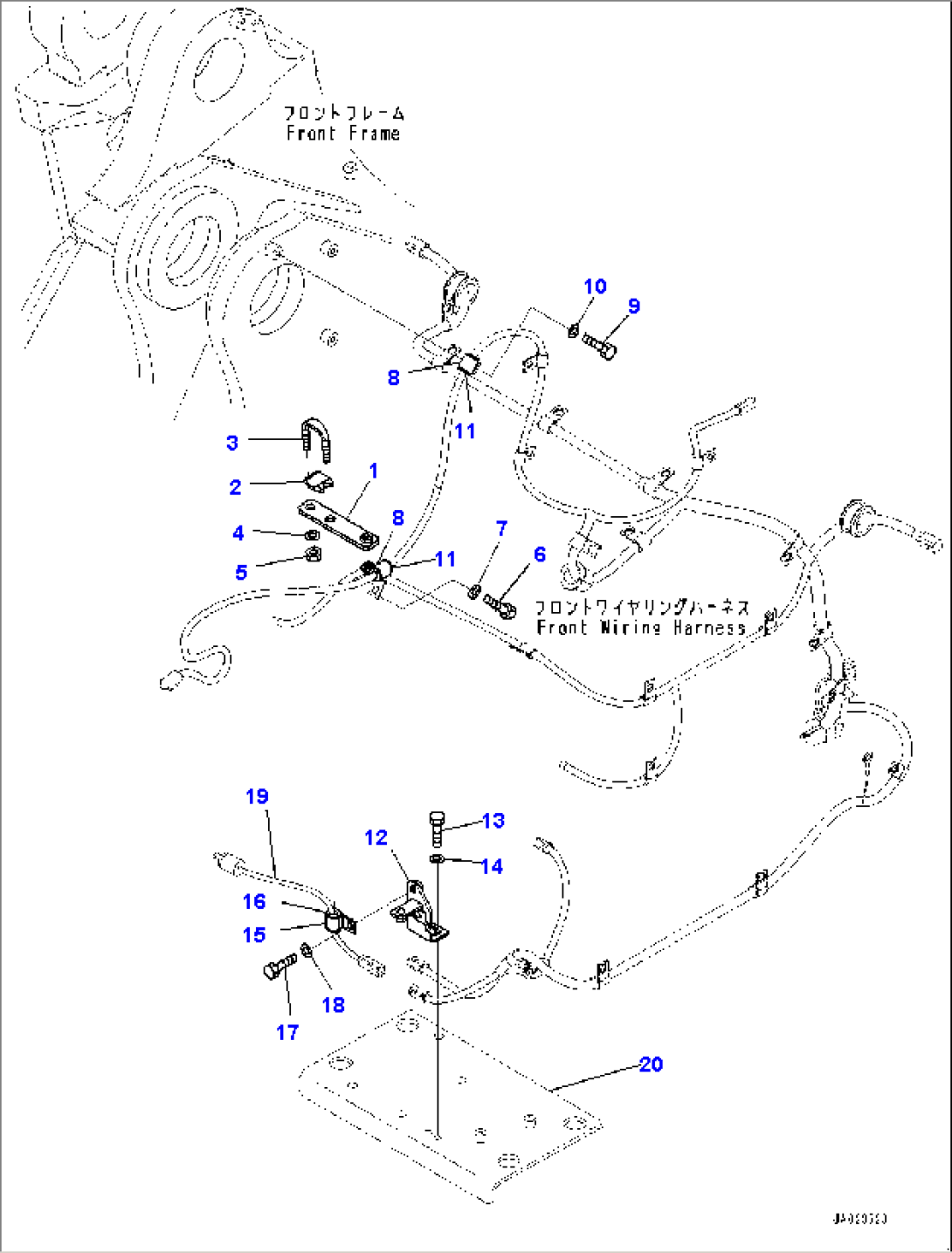

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-42270 | Bracket | 90216- | |
| 2 | 07283-53444 | Seat | 90216- | |
| 3 | 07283-33442 | Clip, Pipe | 90216- | |
| 4 | 01643-31032 | Washer | 90216- | |
| 5 | 01597-01009 | Nut | 90216- | |
| 6 | 01010-81025 | Bolt | 90216- | |
| 7 | 01643-31032 | Washer | 90216- | |
| 8 | 04434-51712 | Clip | 90216- | |
| 9 | 01010-81020 | Bolt | 90216- | |
| 10 | 01643-31032 | Washer | 90216- | |
| 11 | 07095-20211 | Cushion | 90216- | |
| 12 | 421-U44-4950 | Bracket | 90216- | |
| 13 | 01010-81025 | Bolt | 90216- | |
| 14 | 01643-31032 | Washer | 90216- | |
| 15 | 04434-51710 | Clip | 90216- | |
| 16 | 07095-20211 | Cushion | 90216- | |
| 17 | 01010-81020 | Bolt | 90216- | |
| 18 | 01643-31032 | Washer | 90216- | |
| 19 | (42C-06-15121) | Switch, Pressure | - | |
| (42C-06-15121) | Switch, Pressure | - | ||
| (42C-06-15121) | Switch, Pressure | - | ||
| 20 | (421-64-41110) | Bracket | - | |
| (421-64-41110) | Bracket | - | ||
| (421-64-41110) | Bracket | - |
