| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22P-53-18710 | Working Lamp Assembly | 5001- | |
| 2 | 22B-54-17271 | Grommet | 5001- | |
| 2 | 421-06-23330 | Bulb, 70watt | 5001- | |
| 3 | 01010-D1016 | Bolt | 5001- | |
| 4 | 01643-71032 | Washer | 5001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc88mr 8 s/n 5001 up
- Electrical system
- Front working lamp (#5001 )
Поиск по каталогу

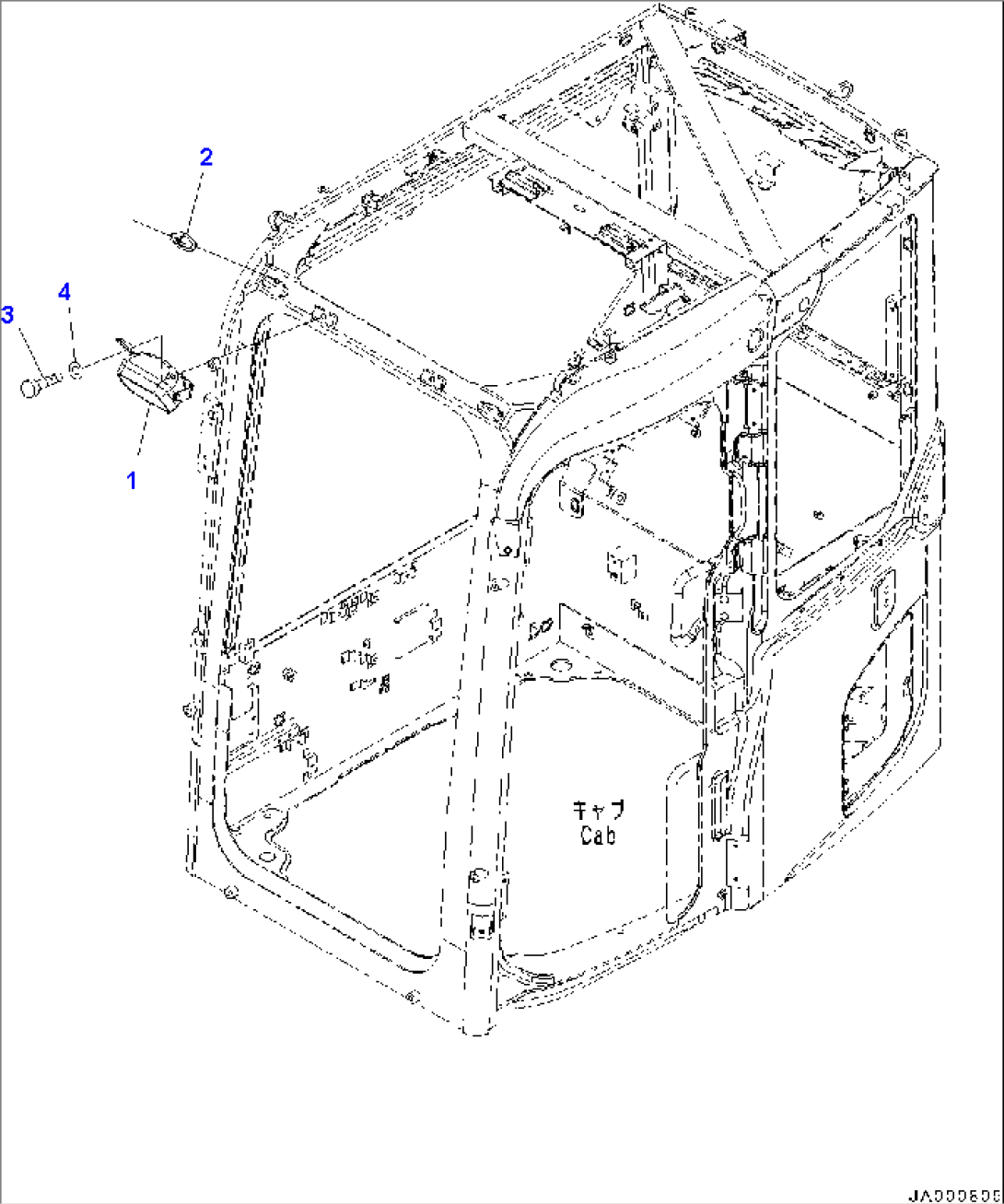

Front Working Lamp (#5001-)
