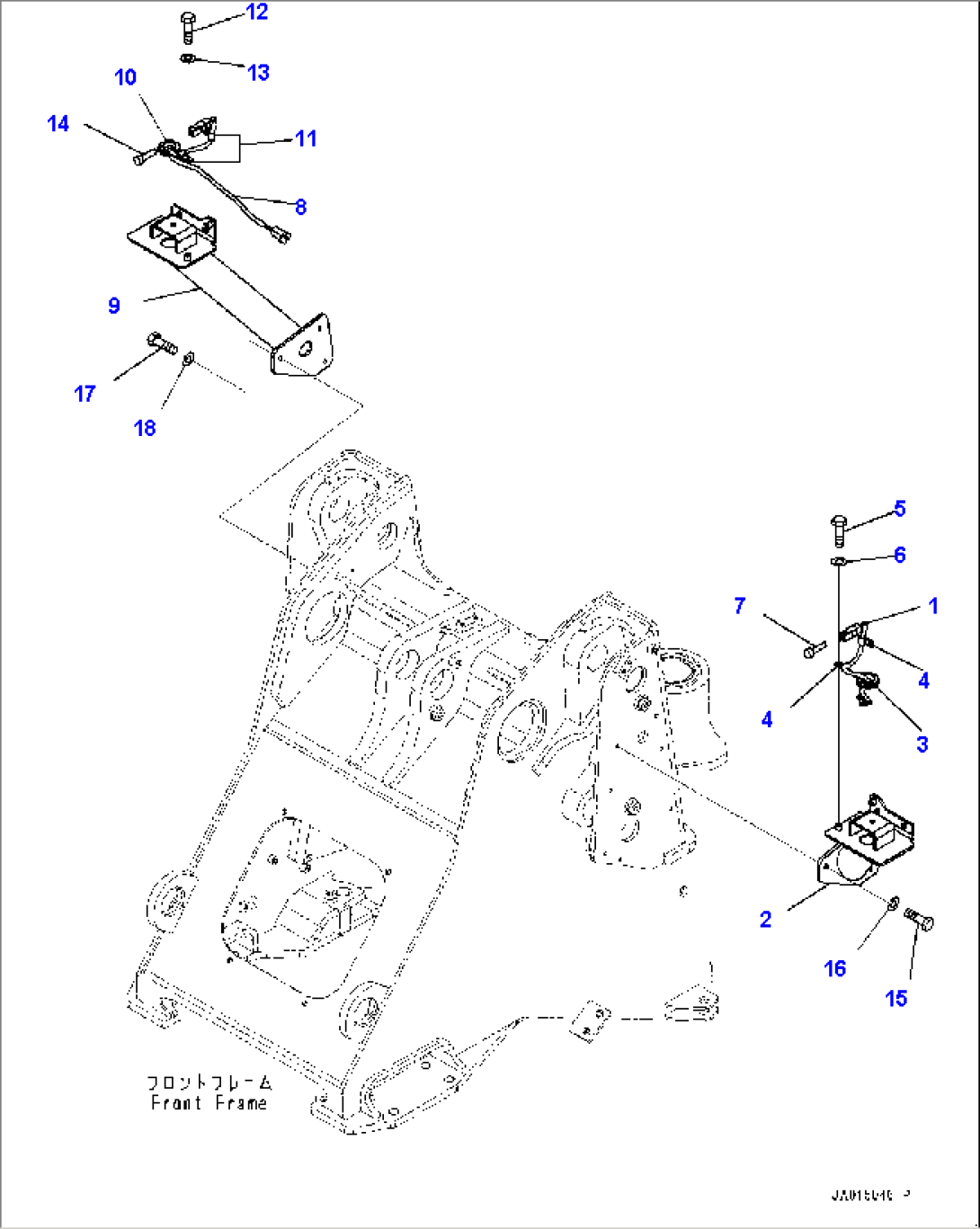

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-53530 | Wiring Harness | 80001- | |
| 2 | 417-06-53510 | Support | 80001- | |
| 3 | 08037-03614 | Grommet | 80001- | |
| 4 | 04434-51010 | Clip | 80001- | |
| 5 | 01010-D0816 | Bolt | 80001- | |
| 6 | 01643-70823 | Washer | 80001- | |
| 7 | 08191-00770 | Plug, Connector | 80001- | |
| 8 | 417-06-53530 | Wiring Harness | 80001- | |
| 9 | 417-06-53520 | Support | 80001- | |
| 10 | 08037-03614 | Grommet | 80001- | |
| 11 | 04434-51010 | Clip | 80001- | |
| 12 | 01010-D0816 | Bolt | 80001- | |
| 13 | 01643-70823 | Washer | 80001- | |
| 14 | 08191-00770 | Plug, Connector | 80001- | |
| 15 | 01010-81030 | Bolt | 80001- | |
| 16 | 01643-31032 | Washer | 80001- | |
| 17 | 01010-81030 | Bolt | 80001- | |
| 18 | 01643-31032 | Washer | 80001- |
