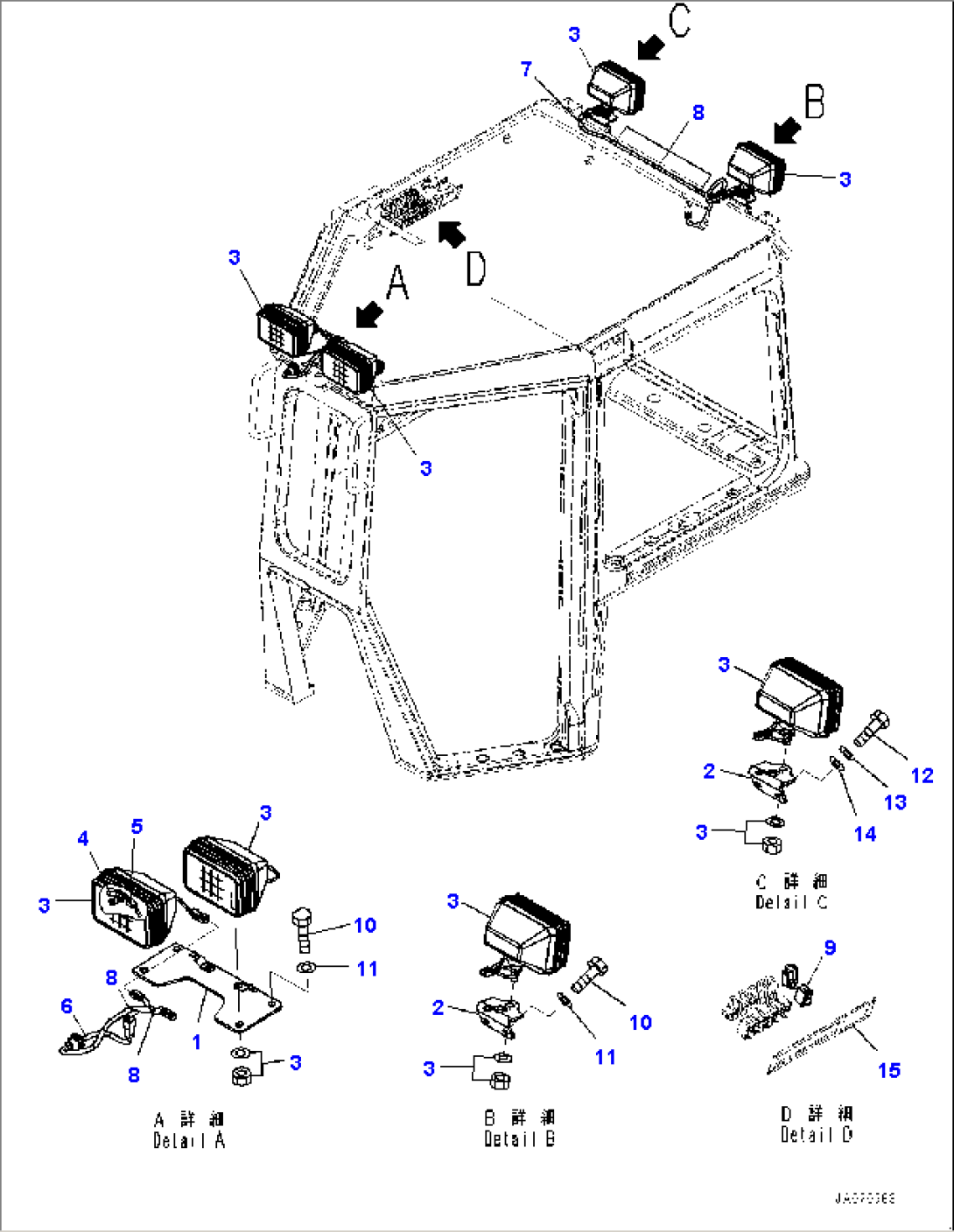

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-Z11-2370 | Bracket | 20003- | |
| 2 | 17A-Z11-2380 | Bracket | 20003- | |
| 3 | 17A-06-17931 | Working Lamp Assembly | 20003- | |
| 4 | 17A-06-17970 | Bulb, 70watt | 20003- | |
| 5 | 17A-06-17980 | Sleeve | 20003- | |
| 6 | 17A-Z11-2390 | Wiring Harness | 20003- | |
| 7 | 17A-Z11-2410 | Wiring Harness | 20003- | |
| 8 | 21W-54-14690 | Clip | 20003- | |
| 9 | 14X-911-3710 | Switch | 20003- | |
| 10 | 01010-D1225 | Bolt | 20222- | |
| 11 | 01643-71232 | Washer | 20222- | |
| 12 | 01010-D1230 | Bolt | 20222- | |
| 13 | 01643-71232 | Washer | 20222- | |
| 14 | 01643-81232 | Washer, Flat | 20222- | |
| 15 | (17A-Z11-2113) | Panel | - | |
| (17A-Z11-2113) | Panel | - | ||
| (17A-Z11-2113) | Panel | - | ||
| (17A-Z11-2113) | Panel | - |
