| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81025 | BOLT | 78604- | |
| 2 | 01643-31032 | WASHER | 78604- | |
| 3 | 104-43-38960 | BRACKET | 78604- | |
| 4 | 104-43-38860 | PLATE | 78604- | |
| 5 | 08036-01814 | CLIP | 78604- | |
| 6 | 01010-81016 | BOLT | 78604- | |
| 7 | 01643-31032 | WASHER | 78604- |
- Главная
- Каталог запчастей
- Бульдозеры
- D20a 7 m s/n 78604 up
- Fuel tank and related parts
- Fuel bracket (d20) (for 2 lever steering)
Поиск по каталогу

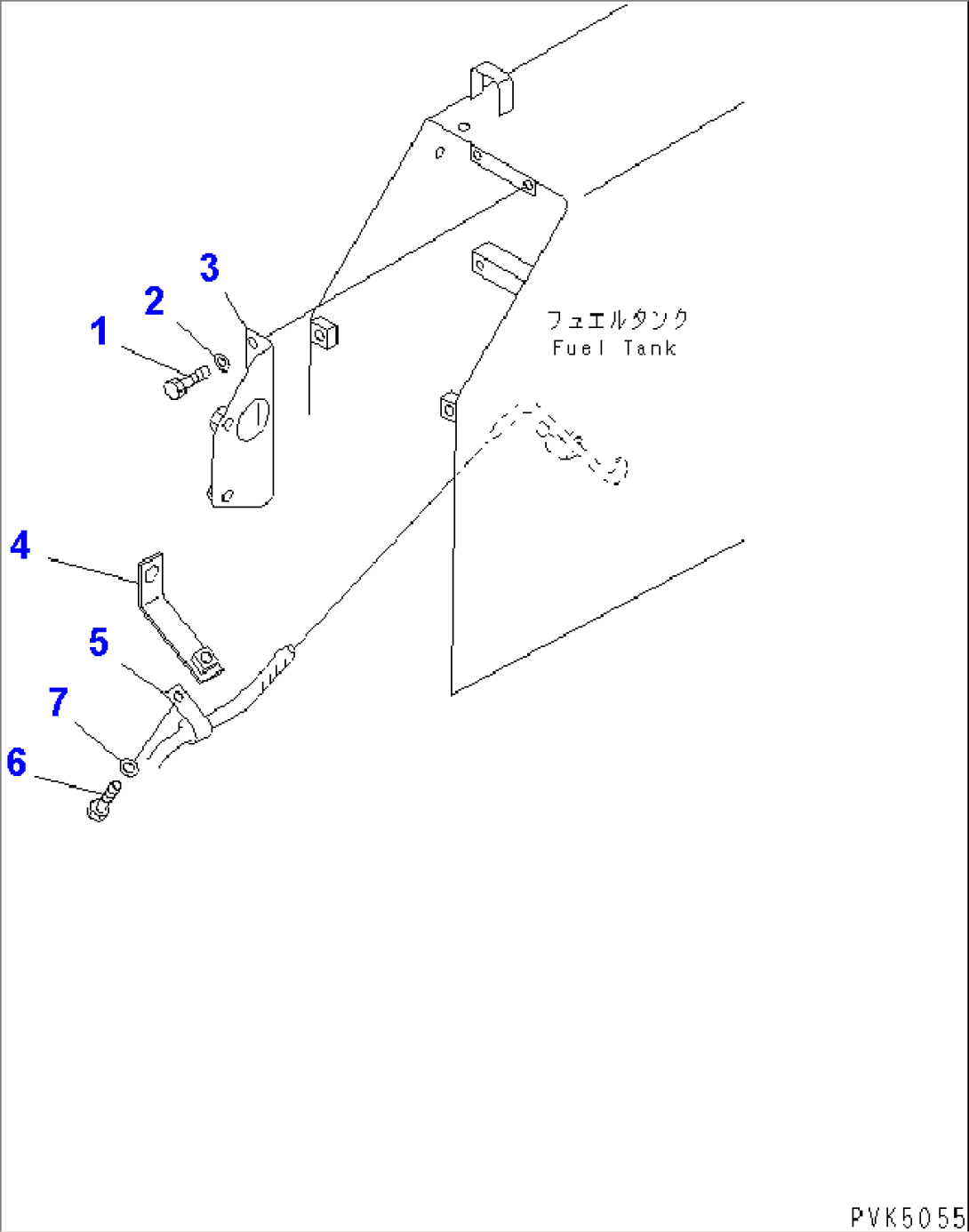

FUEL BRACKET (D20) (FOR 2 LEVER STEERING)
