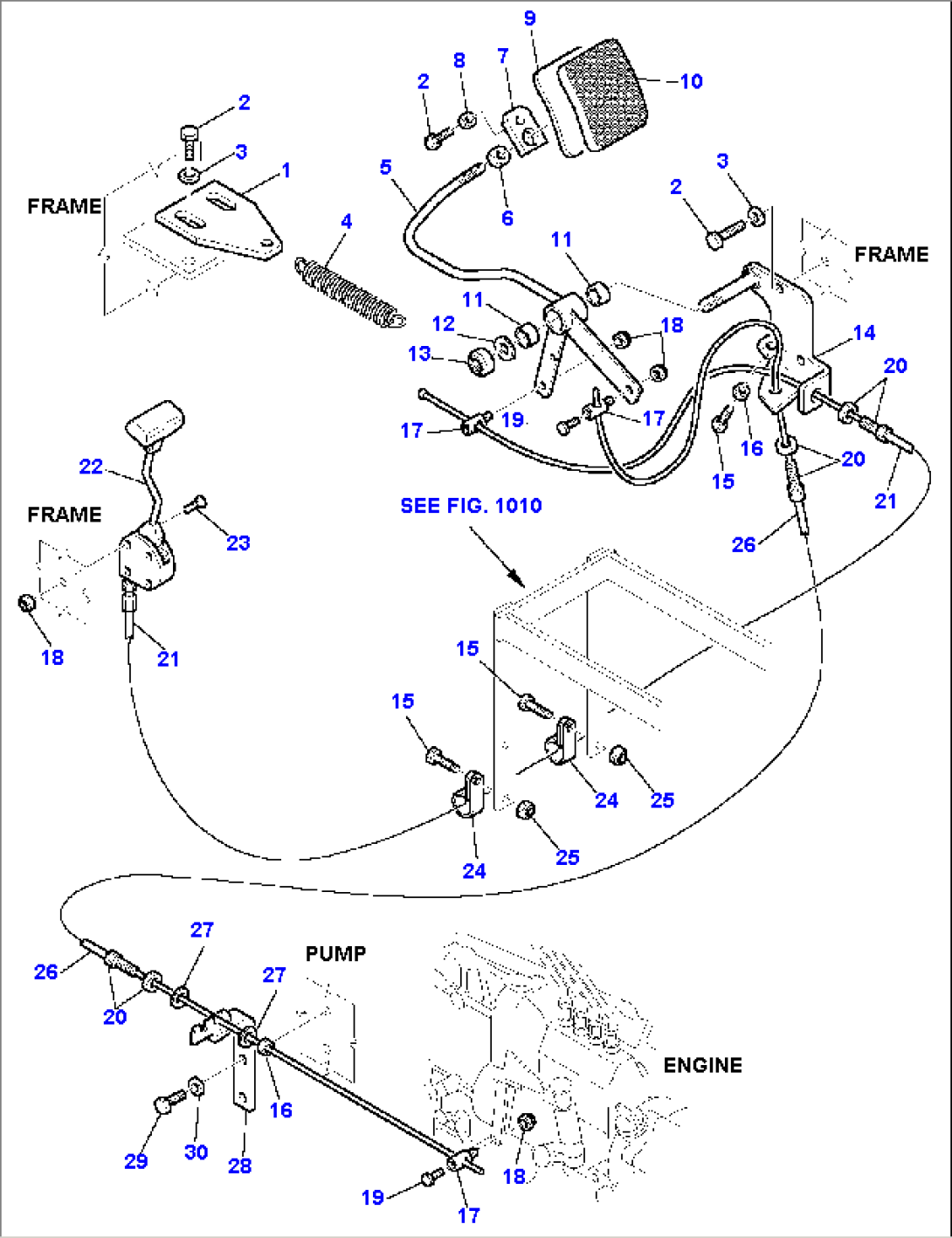

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 338807615 | SPRING CONNECTION | SK09JF2000- | |
| 2 | 801015086 | BOLT | SK09JF2000- | |
| 3 | 802170001 | SPRING WASHER | SK09JF2000- | |
| 4 | 804020001 | SPRING | SK09JF2000- | |
| 5 | 338807066 | LEVER | SK09JF2000- | |
| 6 | 801703410 | NUT | SK09JF2000- | |
| 7 | 334407664 | PLATE | SK09JF2000- | |
| 8 | 801920104 | NUT | SK09JF2000- | |
| 9 | 200292400 | PEDAL | SK09JF2000- | |
| 10 | 816212397 | COVER | SK09JF2000- | |
| 11 | 805630024 | BUSHING | SK09JF2000- | |
| 12 | 802170005 | WASHER | SK09JF2000- | |
| 13 | 801880216 | NUT | SK09JF2000- | |
| 14 | 334407078 | SUPPORT | SK09JF2000- | |
| 15 | 801015087 | BOLT | SK09JF2000- | |
| 16 | 801920104 | NUT | SK09JF2000- | |
| 17 | 500325163 | CLAMP | SK09JF2000- | |
| 18 | 801880206 | NUT | SK09JF2000- | |
| 19 | 801014023 | BOLT | SK09JF2000- | |
| 20 | 883000098 | ADJUSTER | SK09JF2000- | |
| 21 | 883001120 | CABLE, ASSY. | SK09JF2000- | |
| 22 | 816212400 | FUEL LEVER | SK09JF2000- | |
| 23 | 801160130 | SCREW | SK09JF2000- | |
| 24 | 802660501 | COLLAR | SK09JF2000- | |
| 25 | 801880208 | NUT | SK09JF2000- | |
| 26 | 338807067 | CABLE | SK09JF2000- | |
| 27 | 802148009 | WASHER | SK09JF2000- | |
| 28 | 366508066 | SUPPORT | SK09JF2000- | |
| 29 | 801015108 | BOLT | SK09JF2000- | |
| 30 | 802170002 | SPRING WASHER | SK09JF2000- | |
| SEE FIG. 1010 |
