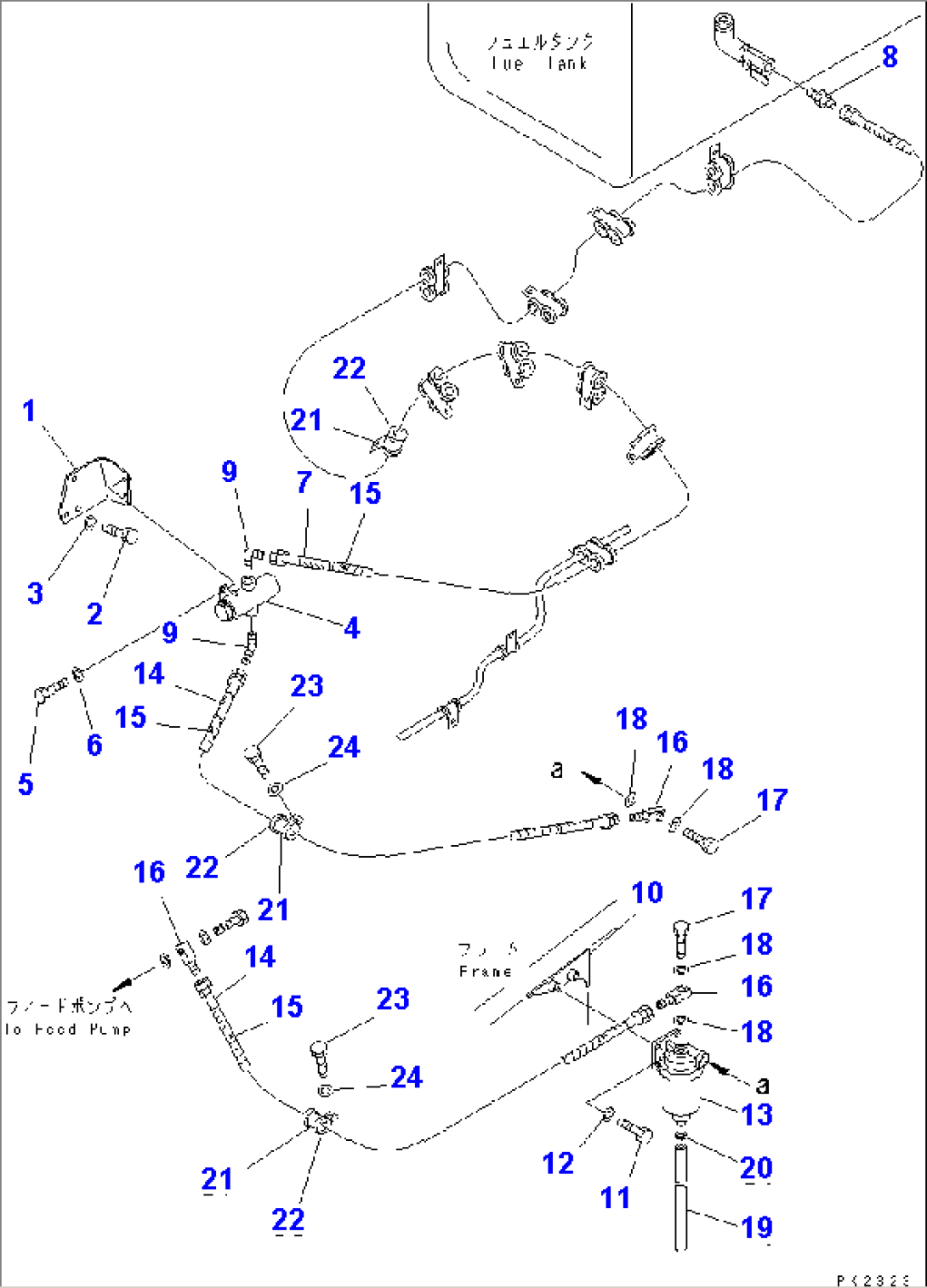

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-84-6A510 | BRACKET | 1001-1999 | |
| 2 | 01010-51025 | BOLT | 1001-1999 | |
| 3 | 01643-31032 | WASHER | 1001-1999 | |
| 4 | 07058-20000 | FILTER ASS'Y | 1001-1999 | |
| 5 | 01010-50825 | BOLT | 1001-1999 | |
| 6 | 01643-30823 | WASHER | 1001-1999 | |
| 7 | 07102-20433 | HOSE | 1001-1999 | |
| 8 | 566-35-14390 | NIPPLE | 1001-1999 | |
| 9 | 566-35-14410 | ELBOW | 1001-1999 | |
| 10 | 566-84-6A310 | SEAT | 1001-1999 | |
| 11 | 01010-51025 | BOLT | 1001-1999 | |
| 12 | 01643-31032 | WASHER | 1001-1999 | |
| 13 | 600-311-9731 | WATER SEPARATOR A. | 1001-1999 | |
| 14 | 07102-20407 | HOSE | 1001-1999 | |
| 15 | 569-35-41750 | SPIRAL TUBE,SPIRAL | 1001-1999 | |
| 16 | 6128-71-1932 | JOINT | 1001-1999 | |
| 17 | 07206-31014 | BOLT | 1001-1999 | |
| 18 | 07005-01412 | SEAL, WASHER | 1001-1999 | |
| 19 | 07286-00820 | HOSE | 1001-1999 | |
| 20 | 07285-00125 | CLIP | 1001-1999 | |
| 21 | 04434-52711 | CLIP | 1001-1999 | |
| 22 | 07095-20420 | CUSHION | 1001-1999 | |
| 23 | 01010-51020 | BOLT | 1001-1999 | |
| 24 | 01643-31032 | WASHER | 1001-1999 |
