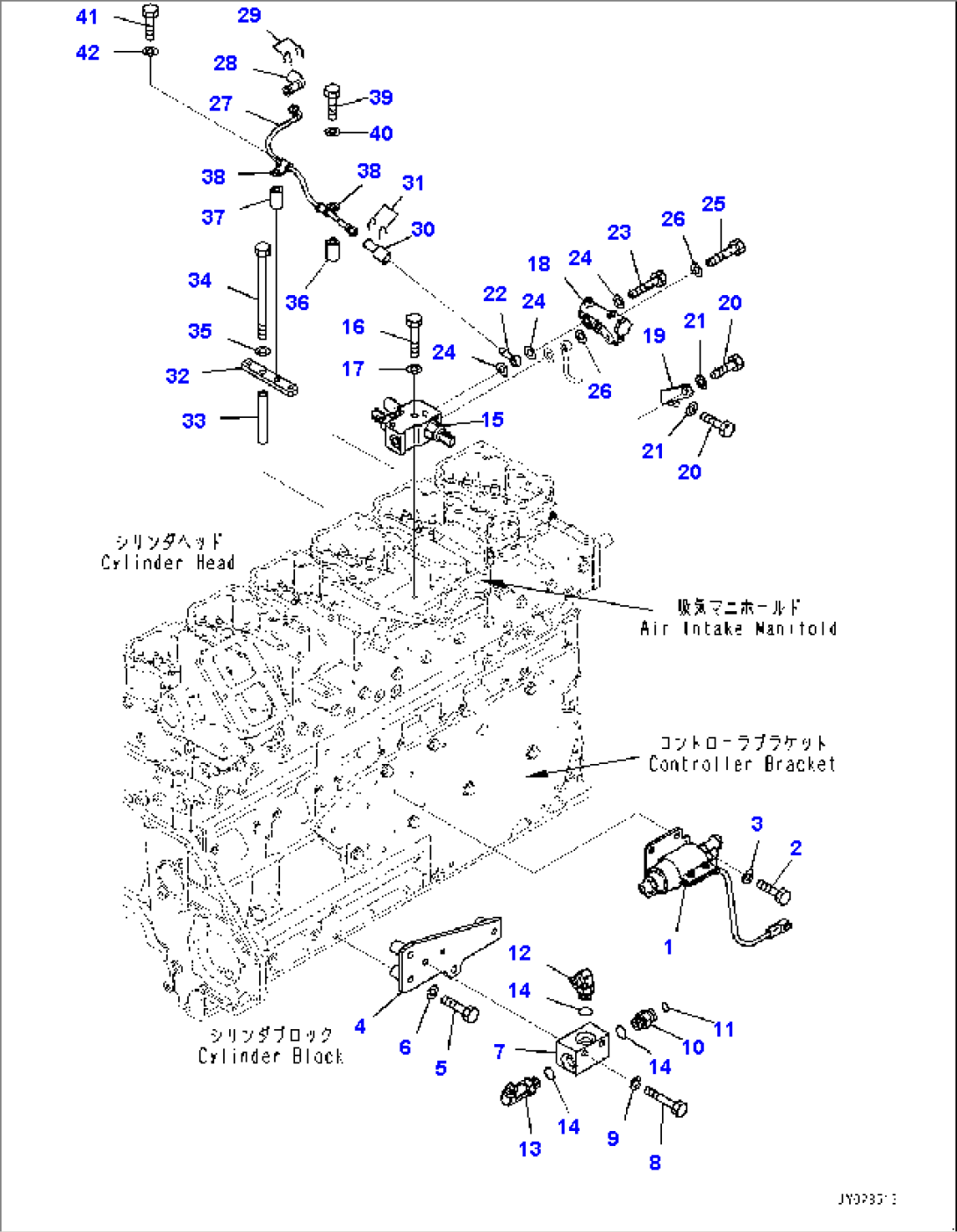

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 600-815-9180 | Pump Assembly | 860032- | |
| 2 | 01010-81025 | Bolt | 860032- | |
| 3 | 01643-31032 | Washer | 860032- | |
| 4 | 6253-71-5980 | Bracket | 860032- | |
| 5 | 01010-81055 | Bolt | 860032- | |
| 6 | 01643-31032 | Washer | 860032- | |
| 7 | 6252-71-5530 | Block | 860032- | |
| 8 | 01010-81065 | Bolt | 860032- | |
| 9 | 01643-31032 | Washer | 860032- | |
| 10 | 02781-00422 | Union | 860032- | |
| 11 | 02896-11012 | O-ring | 860032- | |
| 12 | 02782-10422 | Elbow | 860032- | |
| 13 | 02782-10423 | Elbow | 860032- | |
| 14 | 07002-12034 | O-ring | 860032- | |
| 15 | 6520-71-1010 | Valve Assembly | 860032- | |
| 16 | 01010-80865 | Bolt | 860032- | |
| 17 | 01643-30823 | Washer | 860032- | |
| 18 | 6262-71-7710 | Valve Assembly | 860032- | |
| 19 | 6252-71-6420 | Plate | 860032- | |
| 20 | 01010-81025 | Bolt | 860032- | |
| 21 | 01643-31032 | Washer | 860032- | |
| 22 | 6262-71-7510 | Joint | 860032- | |
| 23 | 6354-71-5560 | Bolt, Joint | 860032- | |
| 24 | 07005-01212 | Seal, Washer | 860032- | |
| 25 | 6262-71-7730 | Bolt, Joint | 860032- | |
| 26 | 07005-01012 | Seal, Washer | 860032- | |
| 27 | 6253-71-6250 | Hose | 860032- | |
| 28 | 6252-71-7180 | Cover | 860032- | |
| 29 | 6754-71-5750 | Clip | 860032- | |
| 30 | 6262-71-7490 | Cover | 860032- | |
| 31 | 6754-71-5750 | Clip | 860032- | |
| 32 | 6252-81-9540 | Plate | 860032- | |
| 33 | 6217-11-9841 | Spacer | 860032- | |
| 34 | 01011-81085 | Bolt | 860032- | |
| 35 | 01643-31032 | Washer | 860032- | |
| 36 | 6144-11-5630 | Spacer | 860032- | |
| 37 | 6631-11-5630 | Spacer | 860032- | |
| 38 | 600-052-3080 | Clip | 860032- | |
| 39 | 01010-81050 | Bolt | 860032- | |
| 40 | 01643-31032 | Washer | 860032- | |
| 41 | 01010-81035 | Bolt | 860032- | |
| 42 | 01643-31032 | Washer | 860032- |
