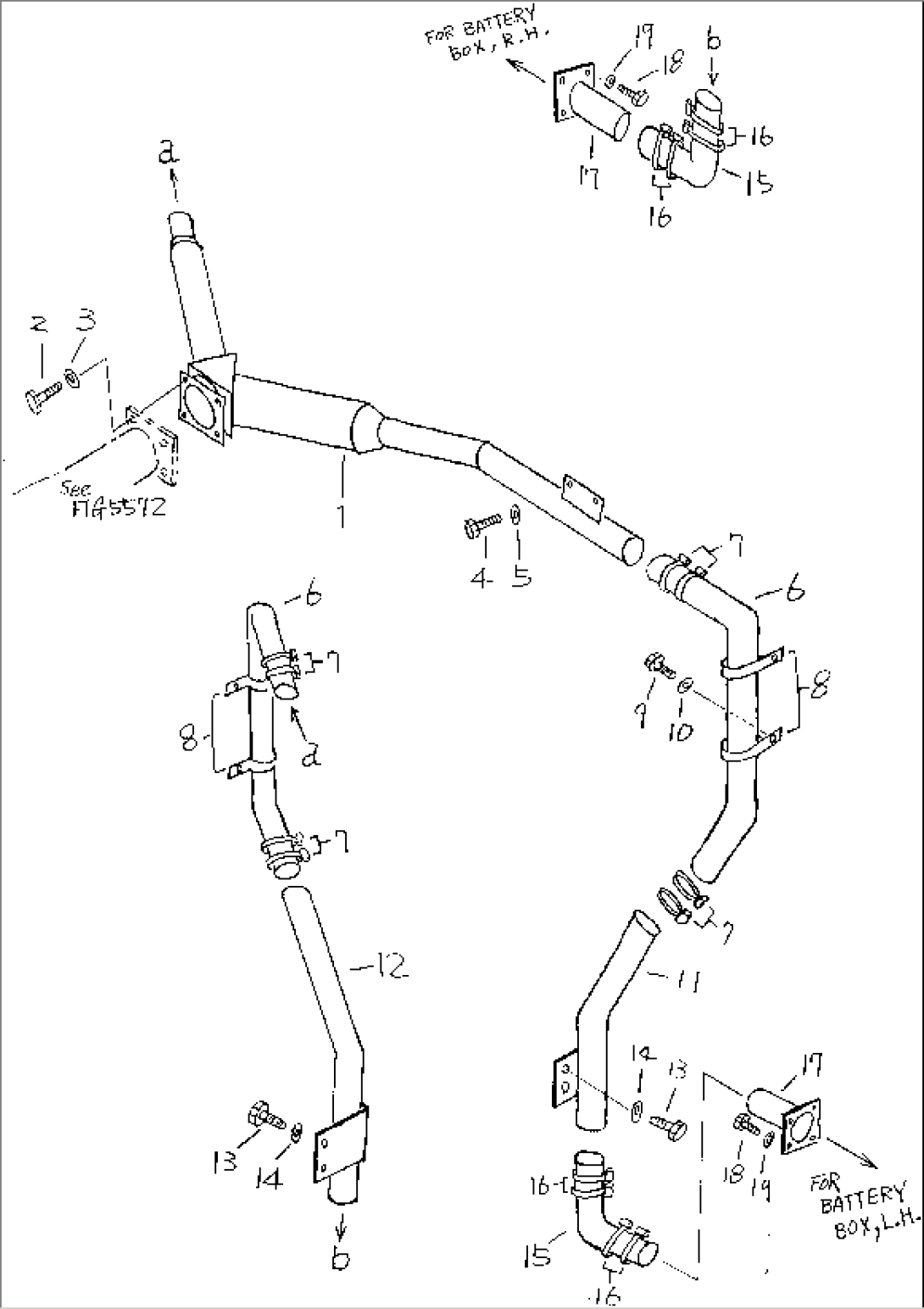

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-W93-1240 | TUBE | 10001- | |
| 2 | 01010-51020 | BOLT | 10001- | |
| 3 | 01643-31032 | WASHER | 10001- | |
| 4 | 01010-51025 | BOLT | 10001- | |
| 5 | 01643-31032 | WASHER | 10001- | |
| 6 | 41E-W93-1982 | HOSE | 10001- | |
| 7 | 07281-00549 | CLAMP | 10001- | |
| 8 | 427-W93-1490 | CLIP | 10001- | |
| 9 | 01010-51016 | BOLT | 10001- | |
| 10 | 01643-31032 | WASHER | 10001- | |
| 11 | 428-W93-1250 | TUBE | 10001- | |
| 12 | 428-W93-1260 | TUBE | 10001- | |
| 13 | 01010-51025 | BOLT | 10001- | |
| 14 | 01643-31025 | WASHER | 10001- | |
| 15 | 427-W93-1560 | HOSE | 10001- | |
| 16 | 07281-00549 | CLAMP | 10001- | |
| 17 | 428-W93-1270 | TUBE | 10001- | |
| 18 | 01010-51025 | BOLT | 10001- | |
| 19 | 01643-31032 | WASHER | 10001- |
