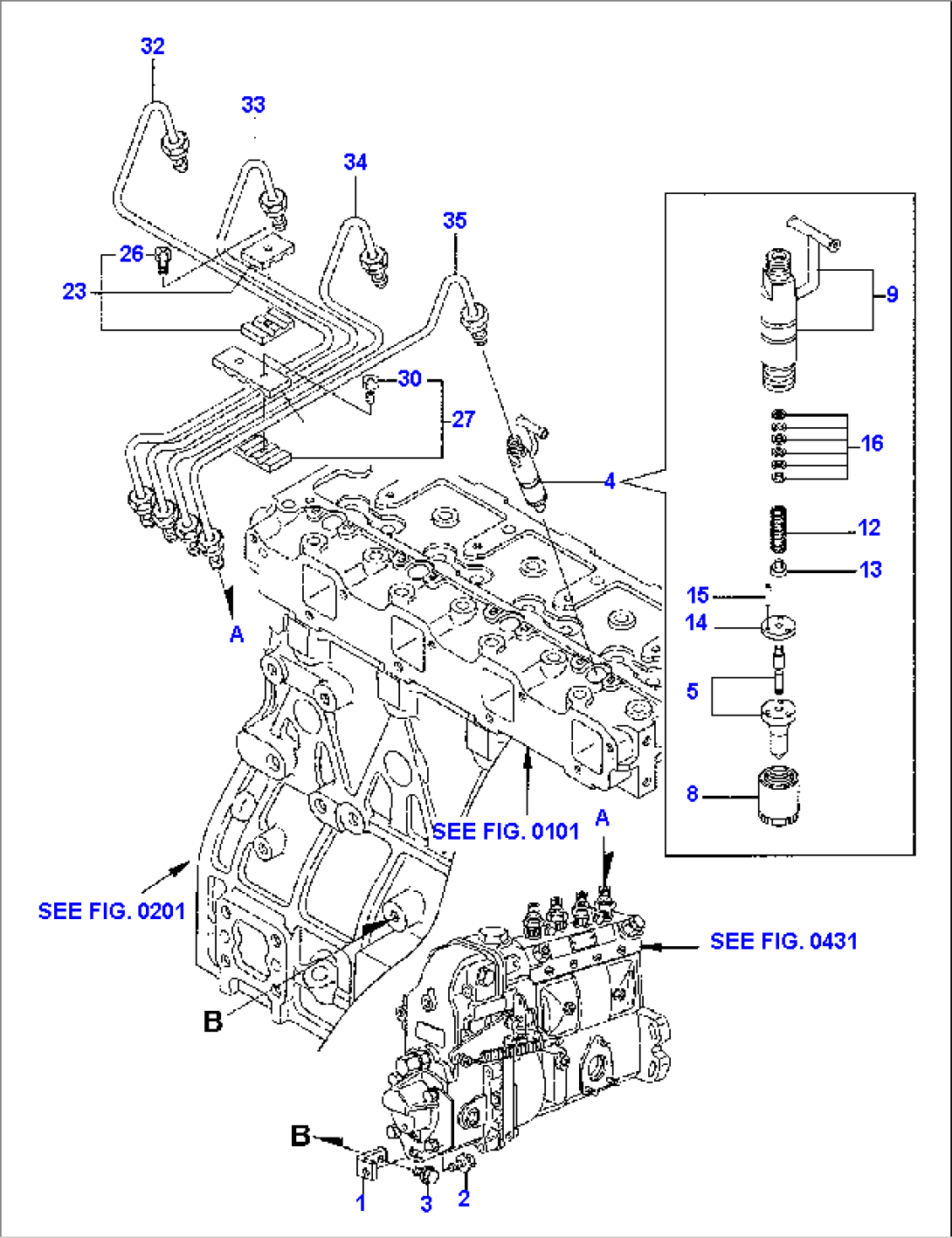

| Item | Part No. | Part Name | Qty | Serial No. |
| \0 | (871070029) | MOTOR, ASSY. | ||
| 1 | YM129900-01950 | SUPPORT | ||
| 2 | YM26106-100142 | BOLT | ||
| 3 | YM26106-080202 | BOLT PLATED | ||
| 4 | YM729902-53200 | INJECTOR ASSY. | ||
| 5 | YM129902-53050 | NOZZLE | ||
| 8 | YM114250-53080 | PIPE | ||
| 9 | YM129100-53100 | FUEL INJECTION NOZZLE, ASSY. | ||
| 12 | YM114250-53120 | SPRING | ||
| 13 | YM114250-53130 | SEAT | ||
| 14 | YM114250-53140 | PLATE, STOP | ||
| 15 | YM114250-53210 | PIN | ||
| 16 | YM114250-53400 | KIT, SHIM | ||
| 23 | YM119305-59120 | RETAINER, PIPE | ||
| 26 | YM129150-59131 | BOLT | ||
| 27 | YM129550-59120 | RETAINER, PIPE | ||
| 30 | YM129150-59131 | BOLT | ||
| 32 | YM129902-59810 | INJECTION PIPE N. 1 | ||
| 33 | YM129902-59820 | INJECTION PIPE N. 2 | ||
| 34 | YM129902-59830 | INJECTION PIPE N. 3 | ||
| 35 | YM129902-59840 | INJECTION PIPE N. 4 | ||
| SEE FIG. 0101 | ||||
| SEE FIG. 0201 | ||||
| SEE FIG. 0431 |
