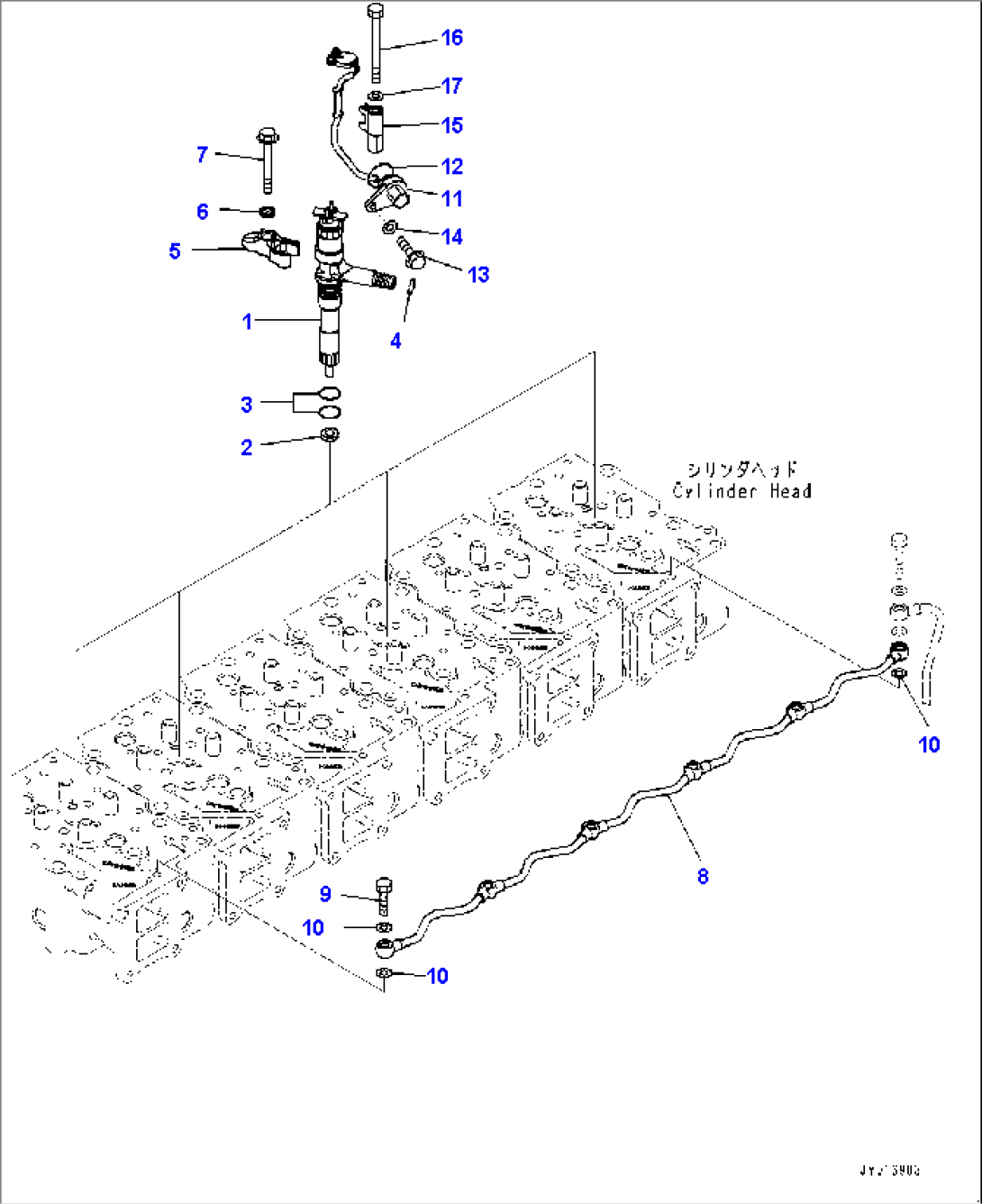

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6252-11-3100 | Injector | 860032- | |
| 2 | 6217-71-6112 | Gasket | 860032- | |
| 3 | 6219-71-1150 | O-ring | 860032- | |
| 4 | 6219-71-1160 | O-ring | 860032- | |
| 5 | 6156-71-1161 | Holder | 860032- | |
| 6 | 6217-71-1140 | Washer | 860032- | |
| 7 | 01437-01075 | Bolt | 860032- | |
| 8 | 6251-71-5340 | Tube | 860032- | |
| 9 | 6934-72-7190 | Bolt, Joint | 860032- | |
| 10 | 07005-01012 | Seal, Washer | 860032- | |
| 11 | 6252-81-9710 | Wiring Harness | 860032- | |
| 12 | 07000-E3024 | O-ring | 860032- | |
| 13 | 6156-81-9130 | Bolt | 860032- | |
| 14 | 01640-20610 | Washer | 860032- | |
| 15 | 6156-81-9150 | Holder | 860032- | |
| 16 | 01010-80870 | Bolt | 860032- | |
| 17 | 01643-30823 | Washer | 860032- |
