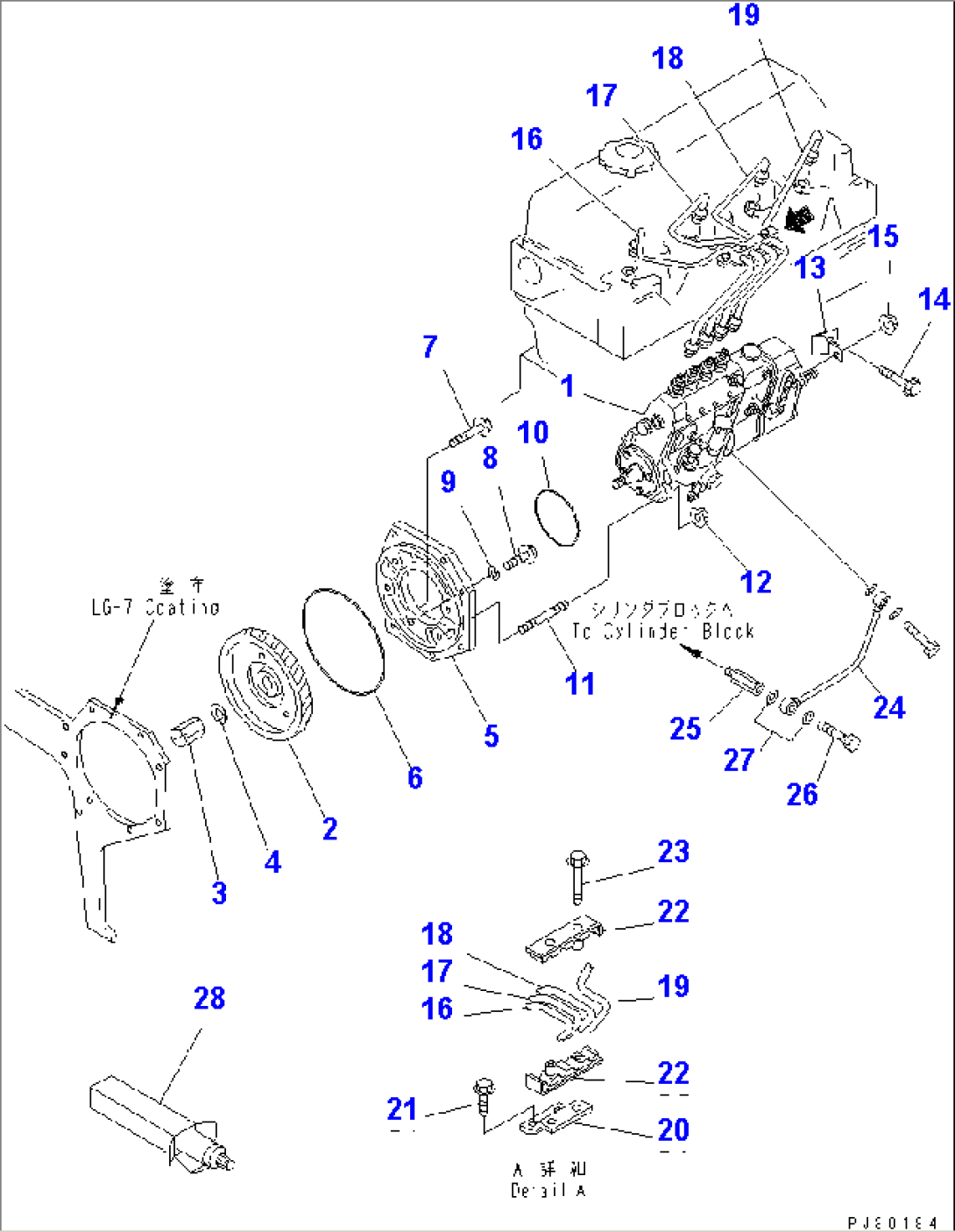

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (6204-71-1231) | INJECTION PUMP A.,(SEE FIG.0451A) | 102468- | |
| 1 | (\1\6204-71-1230) | INJECTION PUMP A.,(SEE FIG.0451) | 16084-102467 | |
| 2 | 6204-71-3130 | GEAR | 16084- | |
| 3 | 6204-71-3630 | NUT | 16084- | |
| 4 | 6114-31-3330 | WASHER,LOCK | 68122- | |
| 4 | \0\01653-21212 | WASHER,LOCK (K2) | 16084-68212 | |
| 5 | 6204-71-3110 | HOLDER | 16084- | |
| 6 | 07000-02135 | O-RING (K2) | 16084- | |
| 7 | 6204-71-3190 | BOLT | 16084- | |
| 8 | 01435-20812 | BOLT | 16084- | |
| 9 | 07005-00812 | SEAL, WASHER (K2) | 16084- | |
| 10 | 07000-02065 | O-RING (K2) | 16084- | |
| 11 | 01144-31035 | STUD | 16084- | |
| 12 | 01584-01008 | NUT | 16084- | |
| 13 | 6206-71-1852 | BRACKET | 16084- | |
| 14 | 01435-21016 | BOLT | 16084- | |
| 15 | 01584-00806 | NUT | 16084- | |
| 16 | 6204-71-5110 | TUBE,INJECTION, NO.1 | 16084- | |
| 17 | 6204-71-5120 | TUBE,INJECTION, NO.2 | 16084- | |
| 18 | 6204-71-5130 | TUBE,INJECTION, NO.3 | 16084- | |
| 19 | 6204-71-5140 | TUBE,INJECTION, NO.4 | 16084- | |
| 20 | 6204-71-5810 | PLATE | 16084- | |
| 21 | 01435-20612 | BOLT | 16084- | |
| 22 | 6204-71-5710 | CLAMP | 16084- | |
| 23 | 01435-20625 | BOLT | 16084- | |
| 24 | 6204-71-4230 | PIPE,OIL | 16084- | |
| 25 | 6204-71-4250 | CONNECTOR | 16084- | |
| 26 | 07206-30710 | BOLT,JOINT | 16084- | |
| 27 | 07005-01012 | SEAL, WASHER (K2) | 16084- | |
| 28 | (09920-00150) | LIQUID GASKET,LG-7, 150G | 16084- |
