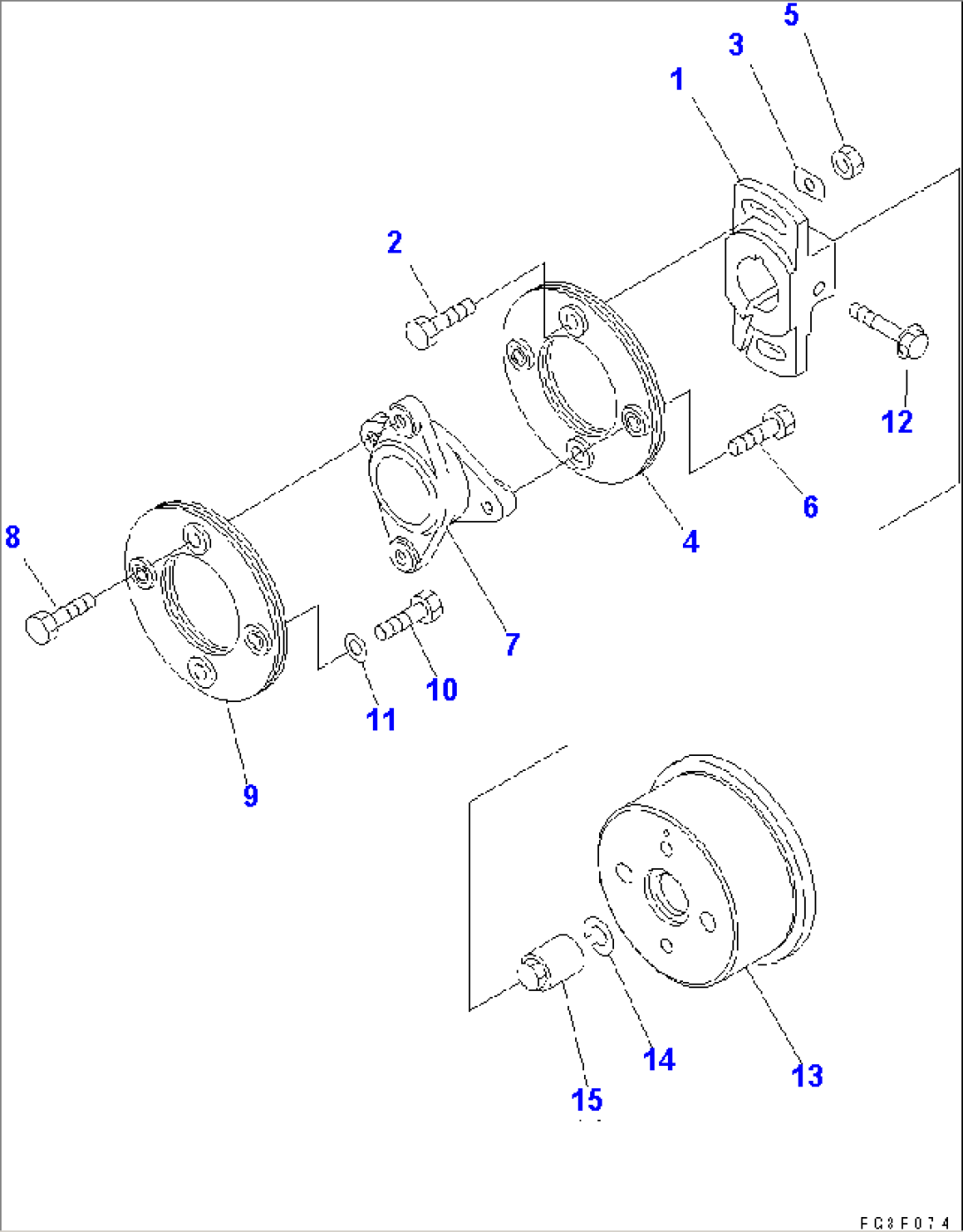

| Item | Part No. | Part Name | Qty | Serial No. |
| (6151-71-1122) | INJECTION PUMP ASS'Y | 39018- | ||
| (\1\6151-71-1121) | INJECTION PUMP ASS'Y | 23900-39017 | ||
| (\0\6151-71-1120) | INJECTION PUMP ASS'Y | 11574-23899 | ||
| DK105663-0510 | COUPLING ASS'Y | 39018- | ||
| DK105663-0360 | COUPLING ASS'Y | 11574-39017 | ||
| 1 | DK156630-6400 | COUPLING | 11574- | |
| 2 | DK156633-8200 | BOLT | 39018- | |
| 2 | DK156633-6200 | BOLT | 11574-39017 | |
| 3 | DK156615-2800 | WASHER | 11574- | |
| 4 | DK156605-6020 | PLATE | 39018- | |
| 4 | DK156605-5320 | PLATE | 11574-39017 | |
| 5 | DK156617-2100 | NUT | 11574- | |
| 6 | DK156633-8200 | BOLT | 39018- | |
| 6 | DK156633-3300 | BOLT | 11574-39017 | |
| 7 | DK156609-6300 | COUPLING,CROSS | 11574- | |
| 8 | DK156633-8200 | BOLT | 39018- | |
| 8 | DK156633-3300 | BOLT | 11574-39017 | |
| 9 | DK156605-6220 | PLATE | 39018- | |
| 9 | DK156605-5420 | PLATE | 11574-39017 | |
| 10 | DK156633-3300 | BOLT | 11574- | |
| 11 | DK156615-1600 | WASHER | 11574- | |
| 12 | DK156633-8400 | BOLT | 11574- | |
| DK156636-6220 | COUPLING ASS'Y | 11574- | ||
| 13 | DK156636-6200 | COUPLING | 11574- | |
| 14 | DK023641-8410 | WASHER,SPRING | 11574- | |
| 15 | DK134325-0600 | NUT | 11574- |
- Главная
- Каталог запчастей
- Двигатели
- S6d125 1m fa s/n 10001 up
- Engine
- Fuel injection pump (coupling) (inner parts) (log loader)(#11574 )
