| Item | Part No. | Part Name | Qty | Serial No. |
| (6206-71-1912) | INJECTION PUMP ASS'Y | 166273- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.A4010-B0E7A TO A4010-F0E7A . | ||||
| THE ZEXEL PART NUMBER IS THAT DK IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW. | ||||

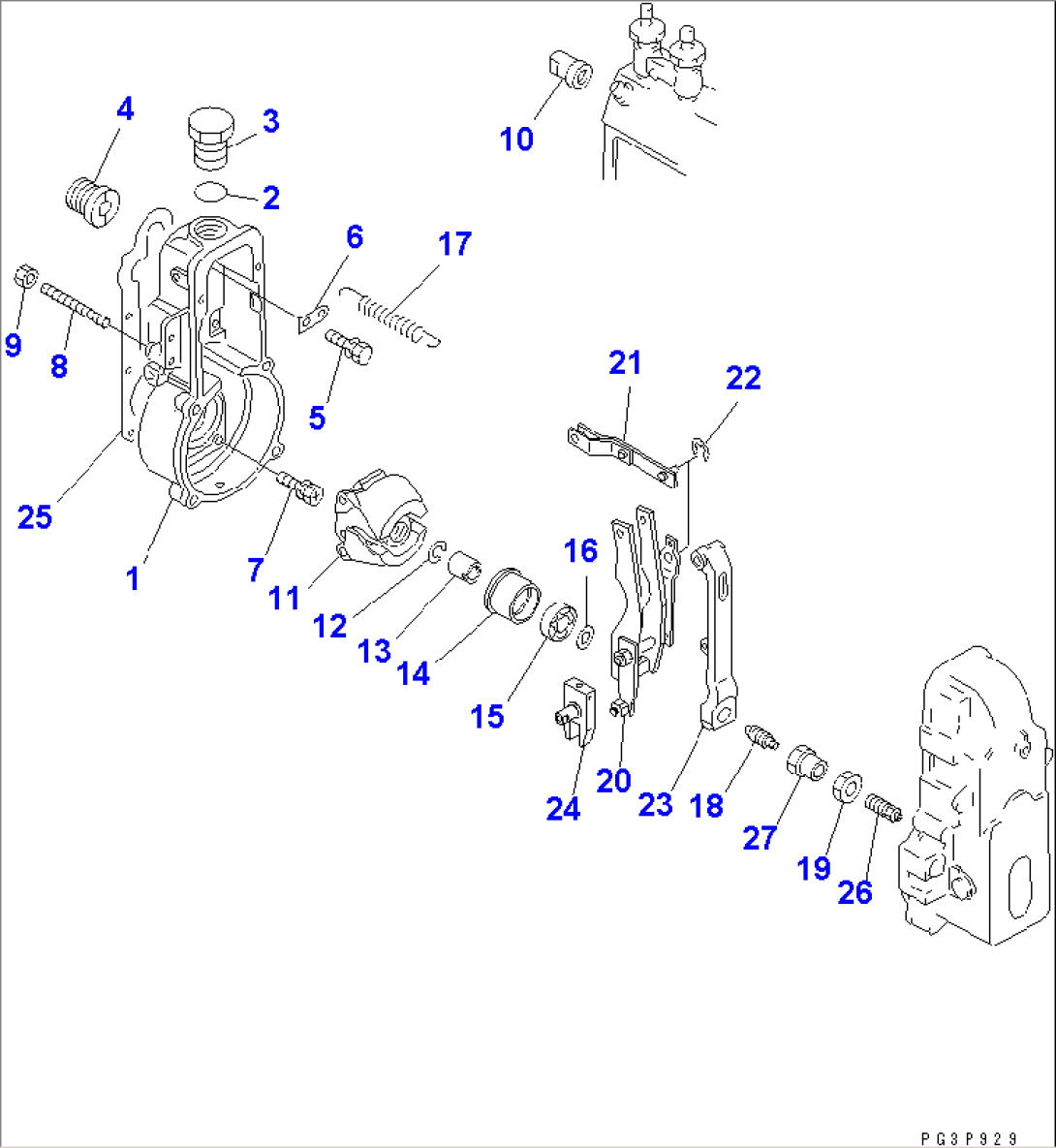

| DK105400-7730 | GOVERNOR ASS'Y | 166273- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.A4010-D0E7A AND A4010-E0E7 A. | ||||
| 1 | DK154000-6300 | HOUSING | 166273- | |
| 2 | DK029632-5070 | O-RING | 166273- | |
| 3 | DK154007-2900 | PLUG | 166273- | |
| 4 | DK154007-0200 | ADAPTER | 166273- | |
| 5 | DK020018-1840 | BOLT | 166273- | |
| 6 | DK154350-1900 | PLATE | 166273- | |
| 7 | DK029010-6810 | BOLT | 166273- | |
| 8 | DK154010-0100 | SCREW | 166273- | |
| 9 | DK154011-0100 | NUT,LOCK | 166273- | |
| 10 | DK154050-1720 | LIMITER | 166273- | |
| 11 | DK154101-0120 | FLYWEIGHT ASS'Y | 166273- | |
| 12 | DK029321-2020 | WASHER,SPRING | 166273- | |
| 13 | DK029231-2030 | NUT | 166273- | |
| 14 | DK154123-0120 | SLEEVE | 166273- | |
| 15 | DK029801-0030 | BEARING | 166273- | |
| 16 | DK029311-0010 | SHIM, 0.20MM | 166273- | |
| 16 | DK029311-0180 | SHIM, 0.30MM | 166273- | |
| 16 | DK029311-0190 | SHIM, 0.40MM | 166273- | |
| 16 | DK139410-0000 | SHIM, 0.50MM | 166273- | |
| 16 | DK029311-0210 | SHIM, 1.00MM | 166273- | |
| 16 | DK139410-0100 | SHIM, 1.50MM | 166273- | |
| 16 | DK139410-3000 | SHIM, 2.00MM | 166273- | |
| 16 | DK139410-3100 | SHIM, 3.00MM | 166273- | |
| 16 | DK139410-3200 | SHIM, 4.00MM | 166273- | |
| 17 | DK154154-0701 | SPRING | 166273- | |
| 18 | DK154178-5420 | CAPSULE,SPRING | 166273- | |
| 19 | DK029201-6080 | NUT | 166273- | |
| 20 | DK154210-0920 | GUIDE LEVER ASS'Y | 166273- | |
| 21 | DK154230-3920 | LINK | 166273- | |
| 22 | DK016010-0540 | RING,SNAP | 166273- | |
| 23 | DK154236-1500 | LEVER,TENSION | 166273- | |
| 24 | DK154326-5020 | LEVER ASS'Y | 166273- | |
| 25 | DK154350-7700 | GASKET | 166273- | |
| 26 | DK154172-9320 | CAPSULE,SPRING | 166273- | |
| 27 | DK029201-6010 | NUT | 166273- |
